| S8055RTP | ||
|---|---|---|
|
|
||
|
||

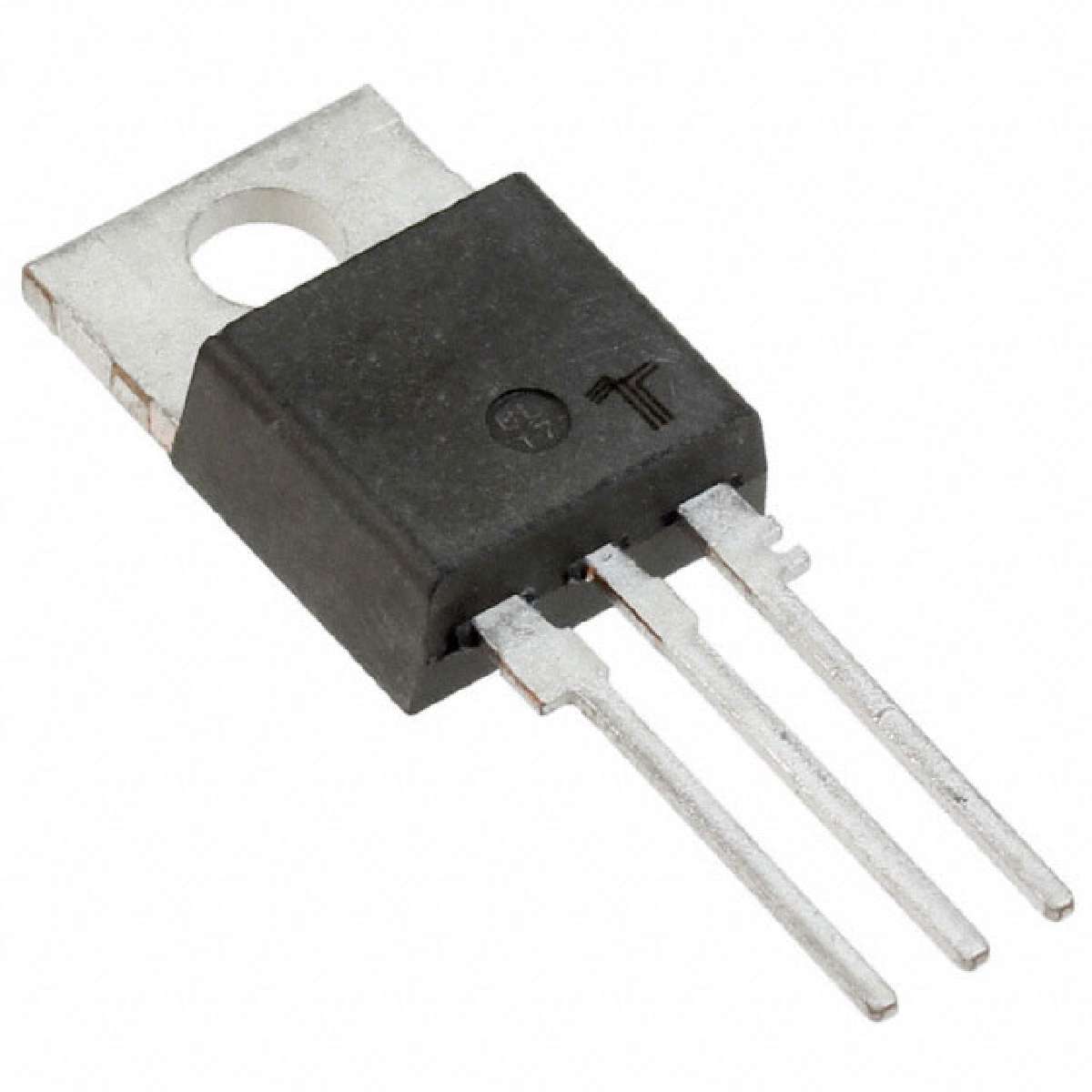

| Product description : S8055R Series 55 A 800 V Half Wave Uni-Directional Thyristor SCR - TO-220-3 | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Holding Current Ih Max: | 60 mA |
|---|---|
| Packaging: | Tube |
| Features: | Glass passivated Chip junction |
| On-State RMS Current - It RMS: | 55 A |
| Gate Trigger Current - Igt: | 40 mA |
| Height: | 9.4 mm (Max) |
| Mounting Style: | Through Hole |
| Rated Repetitive Off-State Voltage VDRM: | 800 V |
| Manufacturer: | Littelfuse |
| Factory Pack Quantity: | 500 |
| Brand: | Littelfuse |
| RoHS: | Details |
| Current Rating: | 55 A |
| Maximum Operating Temperature: | + 125 C |
| Width: | 4.78 mm (Max) |
| Gate Trigger Voltage - Vgt: | 1.5 V |
| Breakover Current IBO Max: | 650 A |
| Minimum Operating Temperature: | - 40 C |
| Package / Case: | TO-220 |
| Unit Weight: | 0.081130 oz |
| Vf - Forward Voltage: | 1.8 V |
| Length: | 10.67 mm (Max) |
| Series: | Sxx55x |
| Non Repetitive On-State Current: | 650 A |
| Off-State Leakage Current @ VDRM IDRM: | 0.02 mA |
| Product Category: | SCRs |
| Type: | SCRs |
| ECCN | EAR99 |
You can comment after logging in.
Availability4Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 450 | Update On 2025-06-03 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 50/50 | |
| Location | -- | |
| DateCode | 2442 |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$7.8988
￥65.60465
| stock | 950 | Update On 2025-02-11 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 50/14 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1038
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.8283
￥6.87957
| stock | 126 | Update On 2025-02-11 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | 09/08/20 |
