NCP45540IMNTWG-H specifications -Ameya360 electronic components purchase network


NCP45540IMNTWG-H

ACTIVE 12-DFN (3x3) EAR99
Product description : IC LOAD SWITCH ACT-HI 20A 12DFN
SPQ：1
Datasheet : NCP45540IMNTWG-H.pdf

Number of Outputs	1

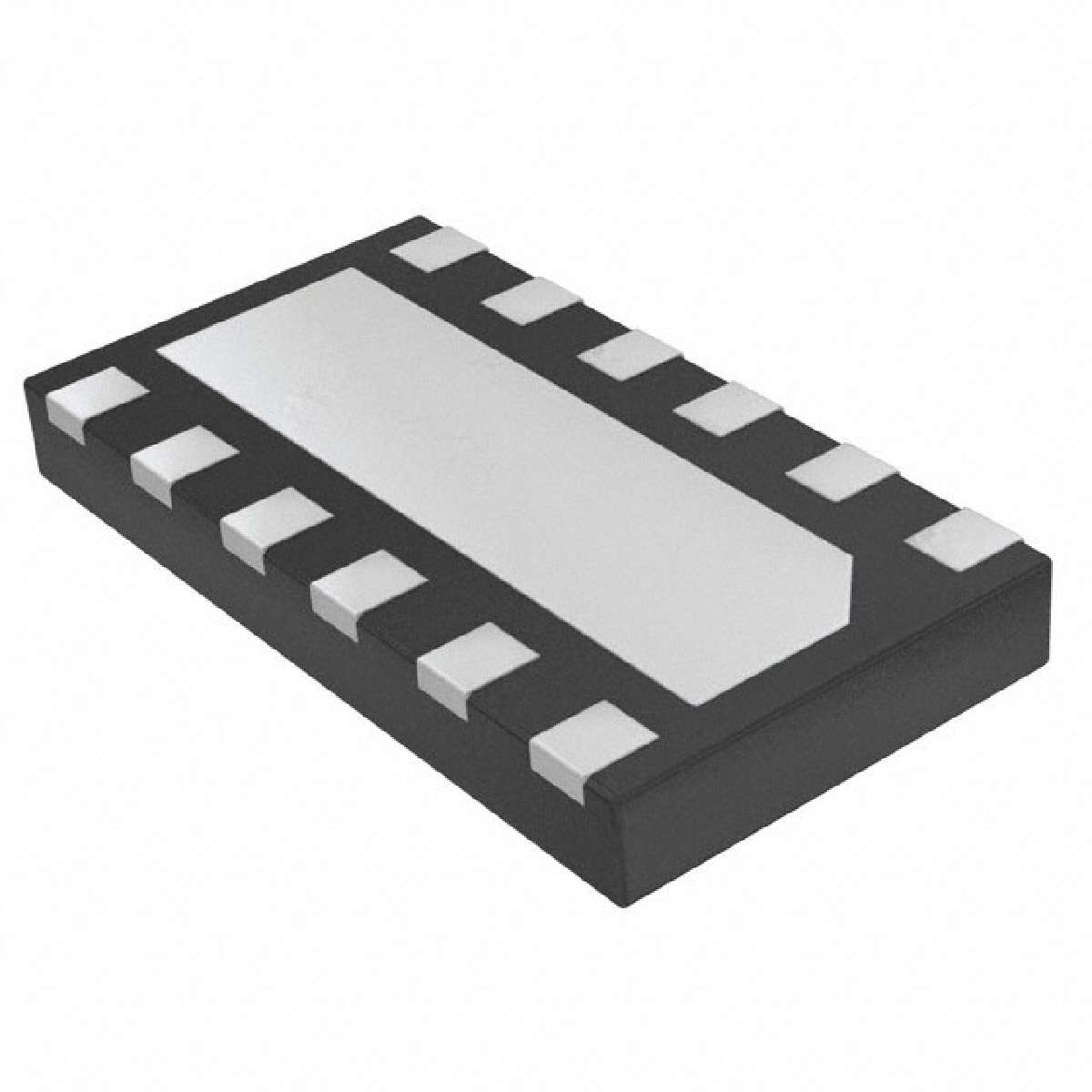

Package / Case	12-VFDFN Exposed Pad
Supplier Device Package	12-DFN (3x3)
Switch Type	General Purpose
Features	Power Good, Slew Rate Controlled
Interface	On/Off
Manufacturer	ON Semiconductor
Output Type	N-Channel
Series	ecoSWITCH™
Ratio - Input:Output	1:1
Packaging	Tape & Reel (TR)
ECCN	EAR99
Output Configuration	High Side
Voltage - Supply (Vcc/Vdd)	3 V ~ 5.5 V
Current - Output (Max)	20A
Fault Protection	Over Temperature, UVLO
Part Status	Active
Category	Integrated Circuits (ICs)
Voltage - Load	0.5 V ~ 13.5 V
Rds On (Typ)	4.8 mOhm
Family	PMIC - Power Distribution Switches, Load Drivers
Operating Temperature	-40°C ~ 85°C (TA)
Input Type	Non-Inverting

Datasheet： NCP45540IMNTWG-H.pdf
