| OA92AP-11-1WB | ||
|---|---|---|
|
|
||
|
||

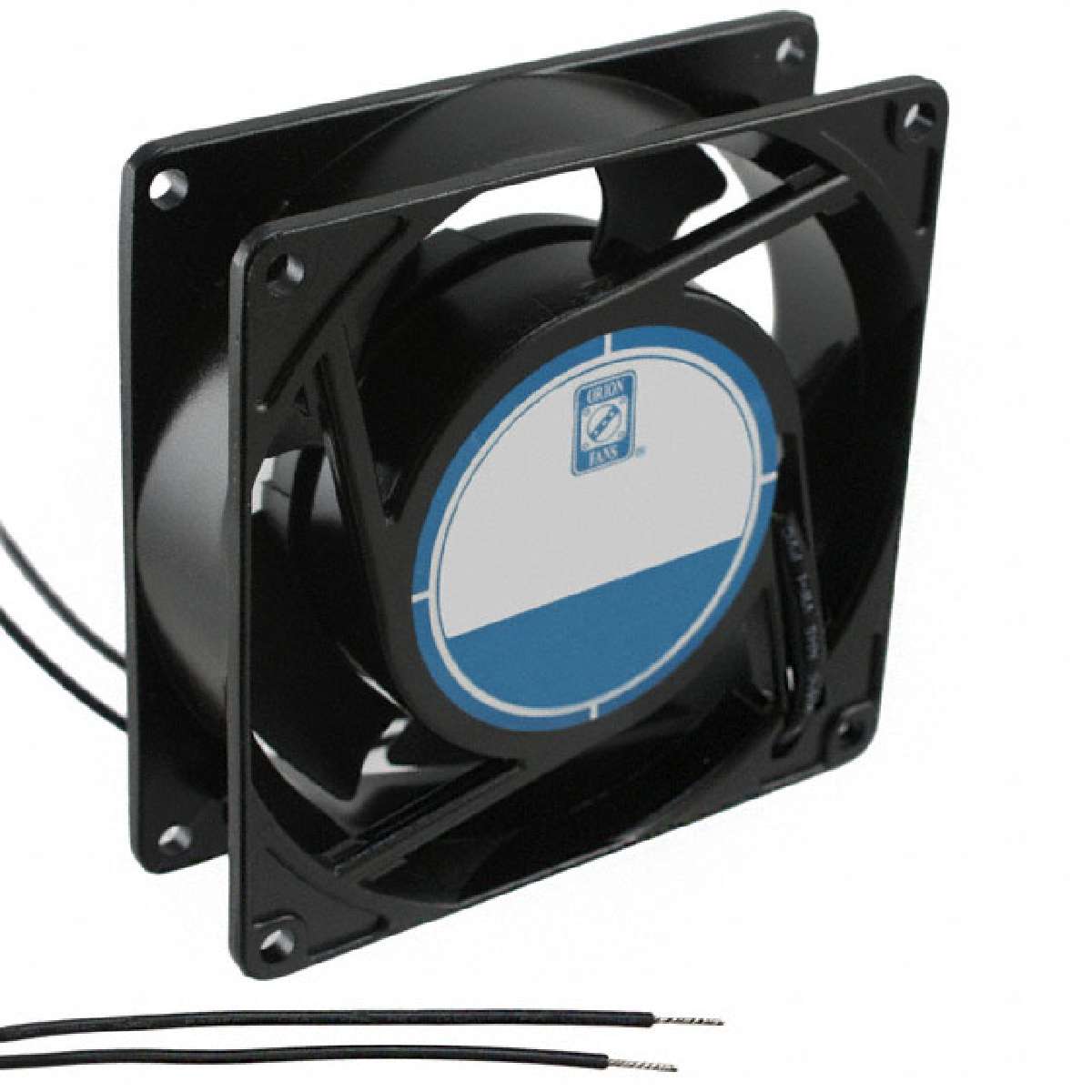

| Product description : OA92 Series 3000 RPM 92 x 92 x 25 mm 35 CFM 115 V Dual Ball Bearing AC Fan | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square - 92mm L x 92mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Aluminum |
| Voltage - Rated | 115VAC |
| Noise | 30 dB |
| Family | AC Fans |
| Width | 26mm |
| Bearing Type | Ball |
| ECCN | EAR99 |
| Static Pressure | 0.200 in H2O (49.8 Pa) |
| Voltage Range | 80 ~ 130VAC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 35.0 CFM (0.991m³/min) |
| Series | OA92 |
| Power (Watts) | 13.0W |
| RPM | 3000 RPM |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| Fan Type | Tubeaxial |
