| 3110KL-04W-B69-E00 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

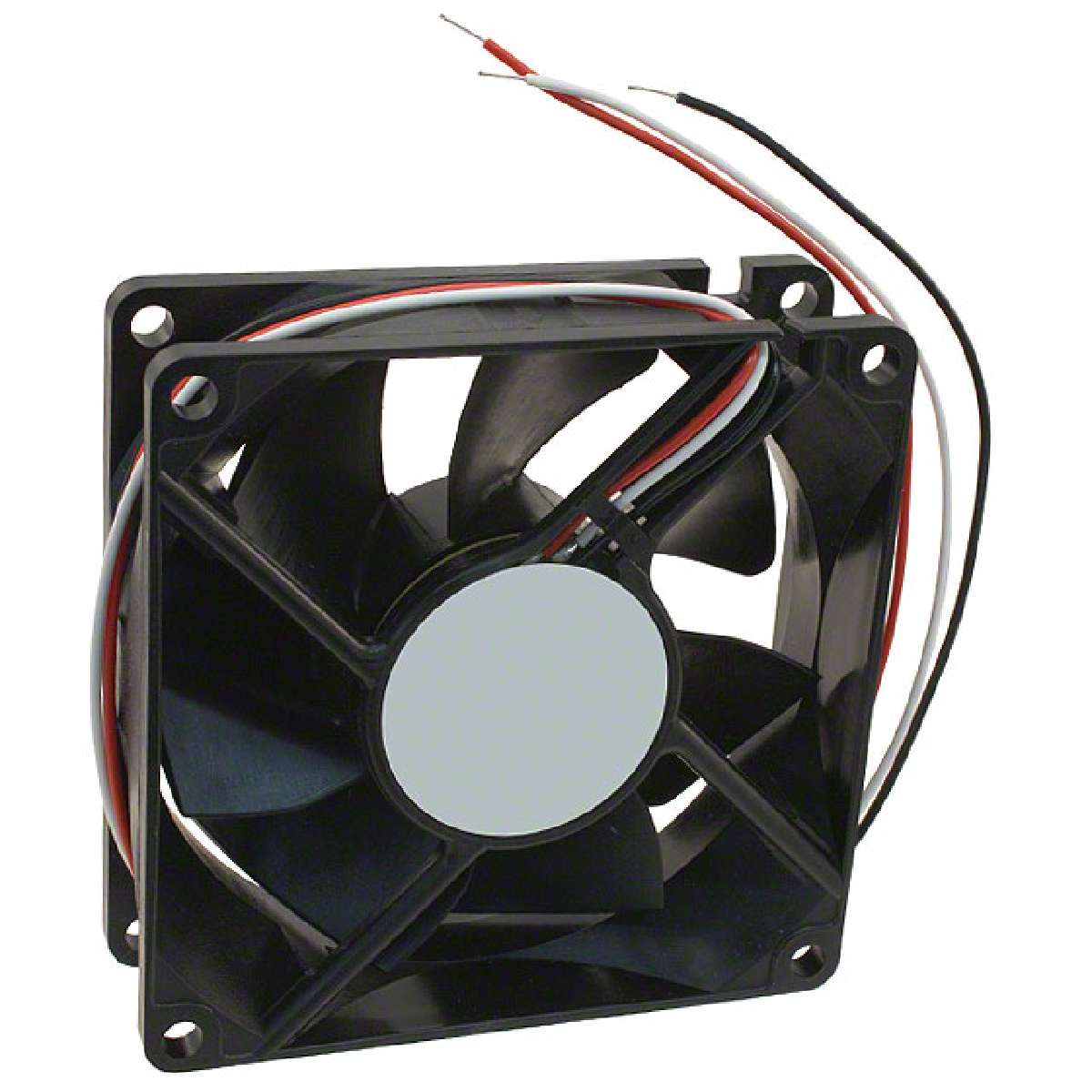

80x20mm, 12VDC, 34.6CFM, 2950RPM, 32.5dB, Ball Bearing, Flange Mount
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | DC Fans |
|---|---|
| Width: | 80 mm |
| Housing Material: | Plastic |
| Manufacturer: | NMB Technologies |
| Speed: | 3400 RPM |
| Operating Supply Voltage: | 12 VDC |
| Part # Aliases: | 08025KA-12P-EL-00 |
| Frame Dimensions - mm: | 80 mm L x 80 mm W x 25 mm H |
| Product Category: | DC Fans |
| Size: | 80 mm |
| Bearing Type: | Ball |
| ECCN | EAR99 |
| Noise: | 35 dBA |
| Power Rating: | 3.12 W |
| Length: | 80 mm |
| Current Type: | DC |
| Airflow: | 40.2 CFM |
| Factory Pack Quantity: | 80 |
| Brand: | NMB Technologies |
| Termination Style: | Wire Leads |
| Pressure Type: | 0.16 in H2O |
| Height: | 25 mm |
| Type: | Brushless Axial Fan |
