| OD6015-12HB01A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

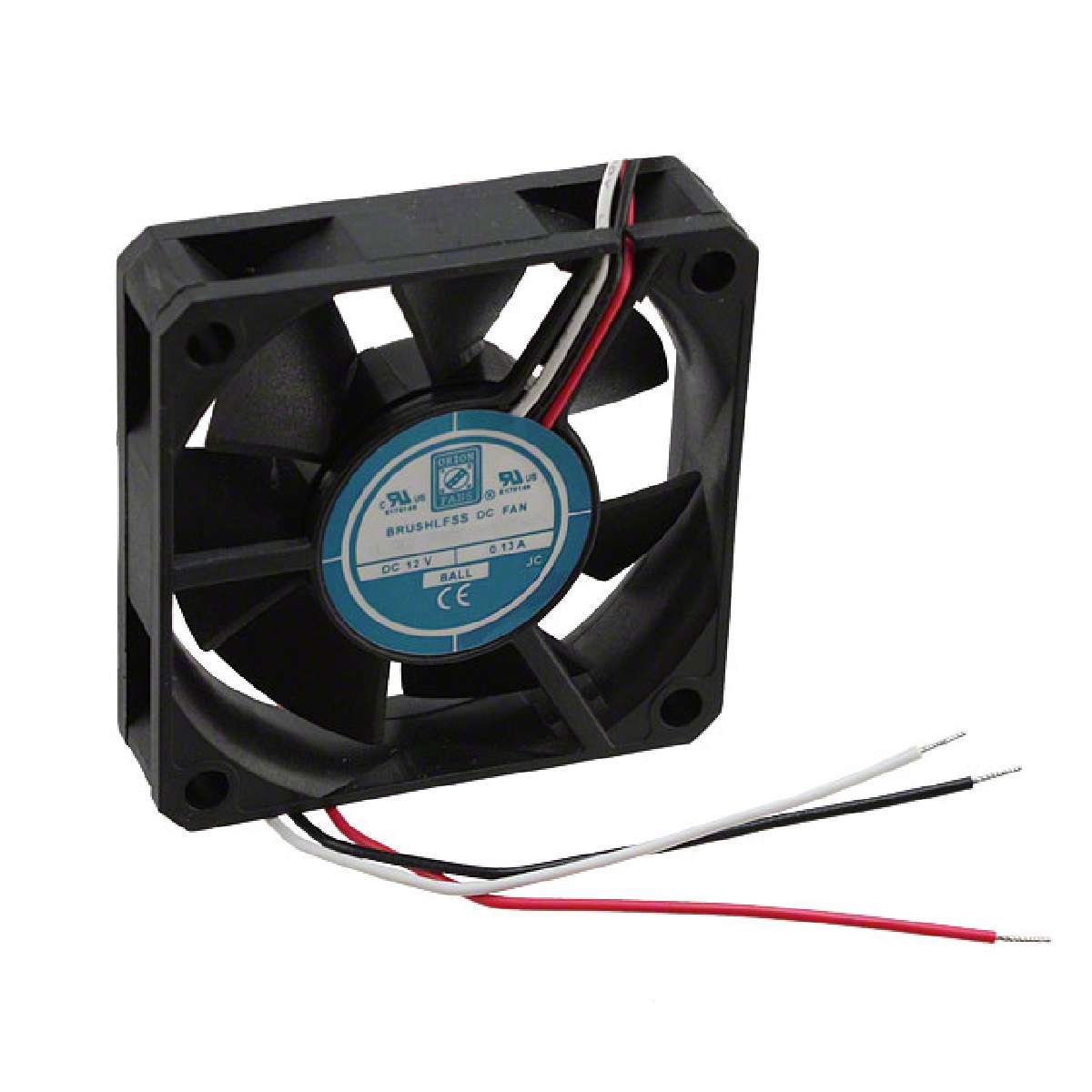

OD6015 Series 4500 RPM 60 x 60 x 15 mm 19 CFM 12 V Dual Ball Bearing DC Fan
|
||
| 标准包装：40 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 3 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Features | Speed Sensor (Tach) |
| Size / Dimension | Square - 60mm L x 60mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage - Rated | 12VDC |
| Noise | 37 dB |
| RPM | 4500 RPM |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
| Static Pressure | 0.130 in H2O (32.4 Pa) |
| Approvals | TUV, UR |
| Voltage Range | 8 ~ 17VDC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 19.0 CFM (0.538m³/min) |
| Series | OD6015 |
| Family | DC Fans |
| Width | 15.00mm |
| Bearing Type | Ball |
| Current Rating | 0.120A |
