| VBUS053CZ-HAF-G-08 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
TVS DIODE 5.5V 18V LLP75-7L
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Polarity: | Bidirectional |
|---|---|
| Number of Channels: | 3 Channel |
| Ipp - Peak Pulse Current: | 3 A |
| Vesd - Voltage ESD Contact: | 15 kV |
| Operating Supply Voltage: | 5.5 V |
| Pd - Power Dissipation: | 54 W |
| Minimum Operating Temperature: | - 40 C |
| Factory Pack Quantity: | 3000 |
| Vesd - Voltage ESD Air Gap: | 15 kV |
| Termination Style: | SMD/SMT |
| Product Category: | ESD Suppressors |
| Clamping Voltage: | 18 V |
| ECCN | EAR99 |
| Cd - Diode Capacitance: | 0.7 pF |
| Working Voltage: | 5.5 V |
| Packaging: | Reel |
| Manufacturer: | Vishay |
| Series: | VBUS |
| Operating Temperature Range: | - 40 C to + 125 C |
| Breakdown Voltage: | 6.5 V |
| Brand: | Vishay Semiconductors |
| RoHS: | Details |

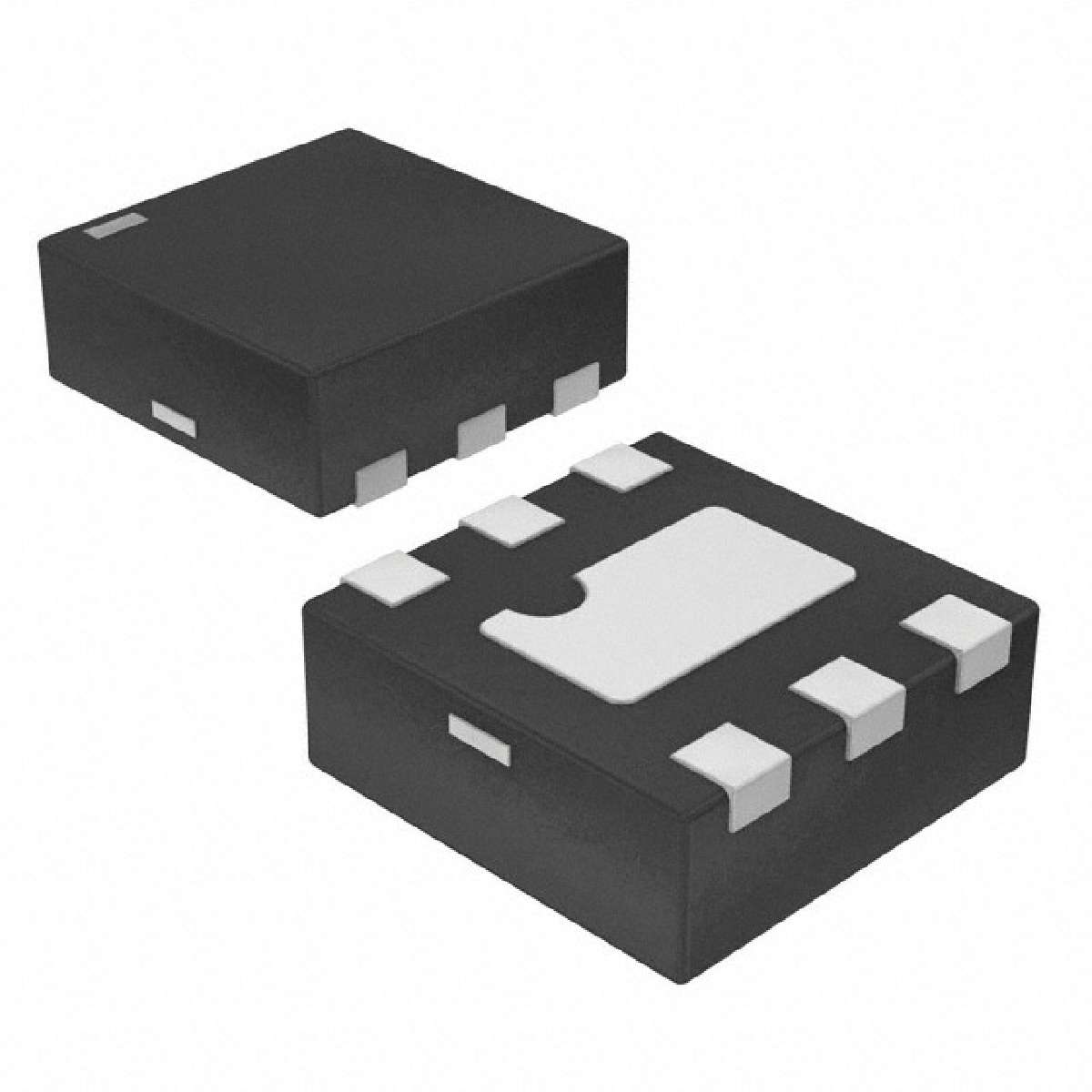

| Package / Case: | LLP-75-7L |
| Current Rating: | 3 A |
| Maximum Operating Temperature: | + 125 C |
