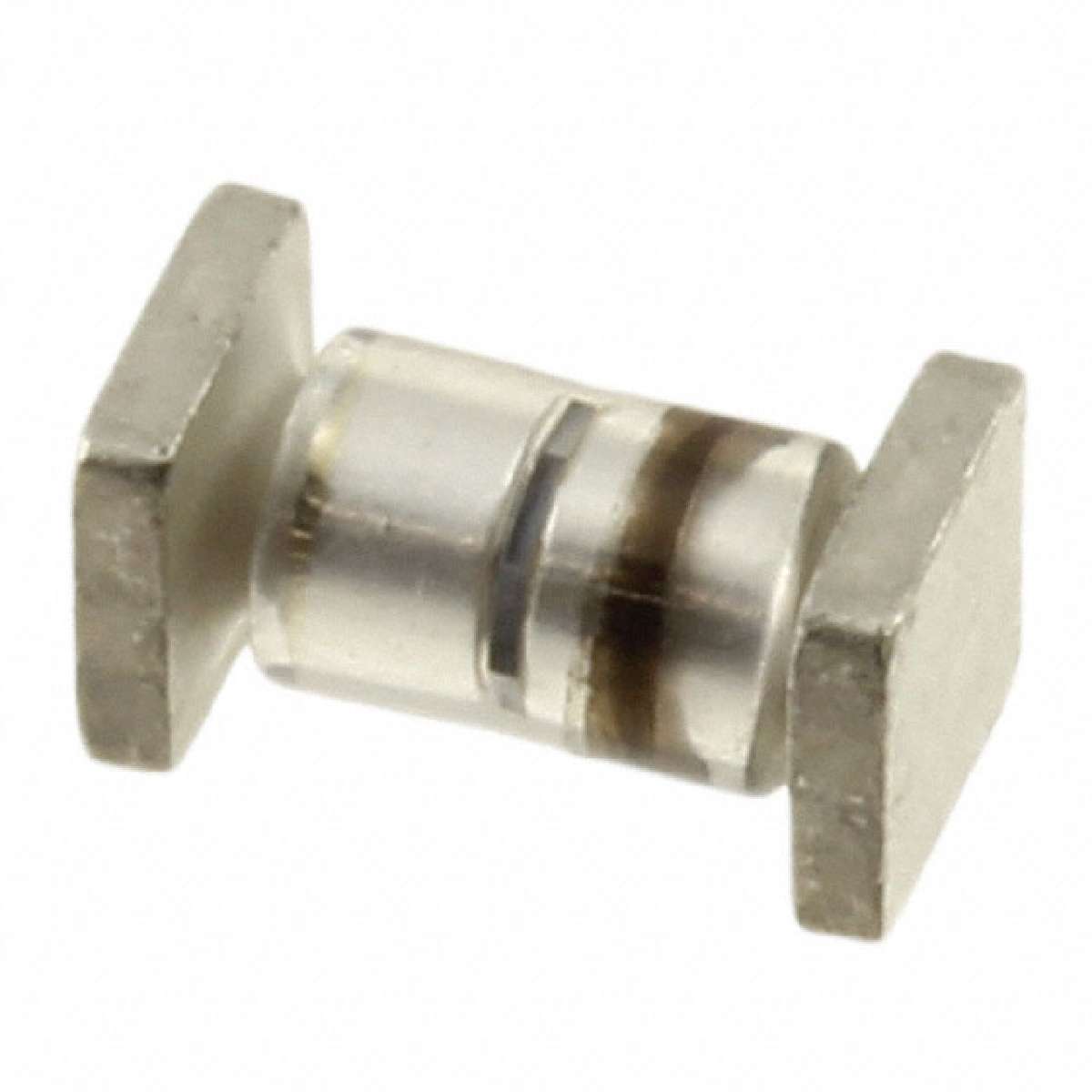

| JANTX1N5806US | ||
|---|---|---|
|
|
||
|
||
| Product description : JANTX Series 150 V 1 A A-MELF Ultra Fast Recovery Diode Rectifier | ||
| SPQ：1 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Operating Temperature - Junction | -65°C ~ 175°C |
|---|---|
| Capacitance @ Vr, F | 25pF @ 10V, 1MHz |
| Supplier Device Package | D-5A |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 25ns |
| Series | Military, MIL-PRF-19500/477 |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 875mV @ 1A |
| ECCN | EAR99 |
| Current - Average Rectified (Io) | 1A |
| Package / Case | SQ-MELF, A |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | Microsemi IRE Division |
| Current - Reverse Leakage @ Vr | 1µA @ 150V |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 150V |
| Packaging | Bulk |
| Datasheet： |
|---|
You can comment after logging in.
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 2 | Update On 2025-06-24 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
