289-AB

ACTIVE EAR99

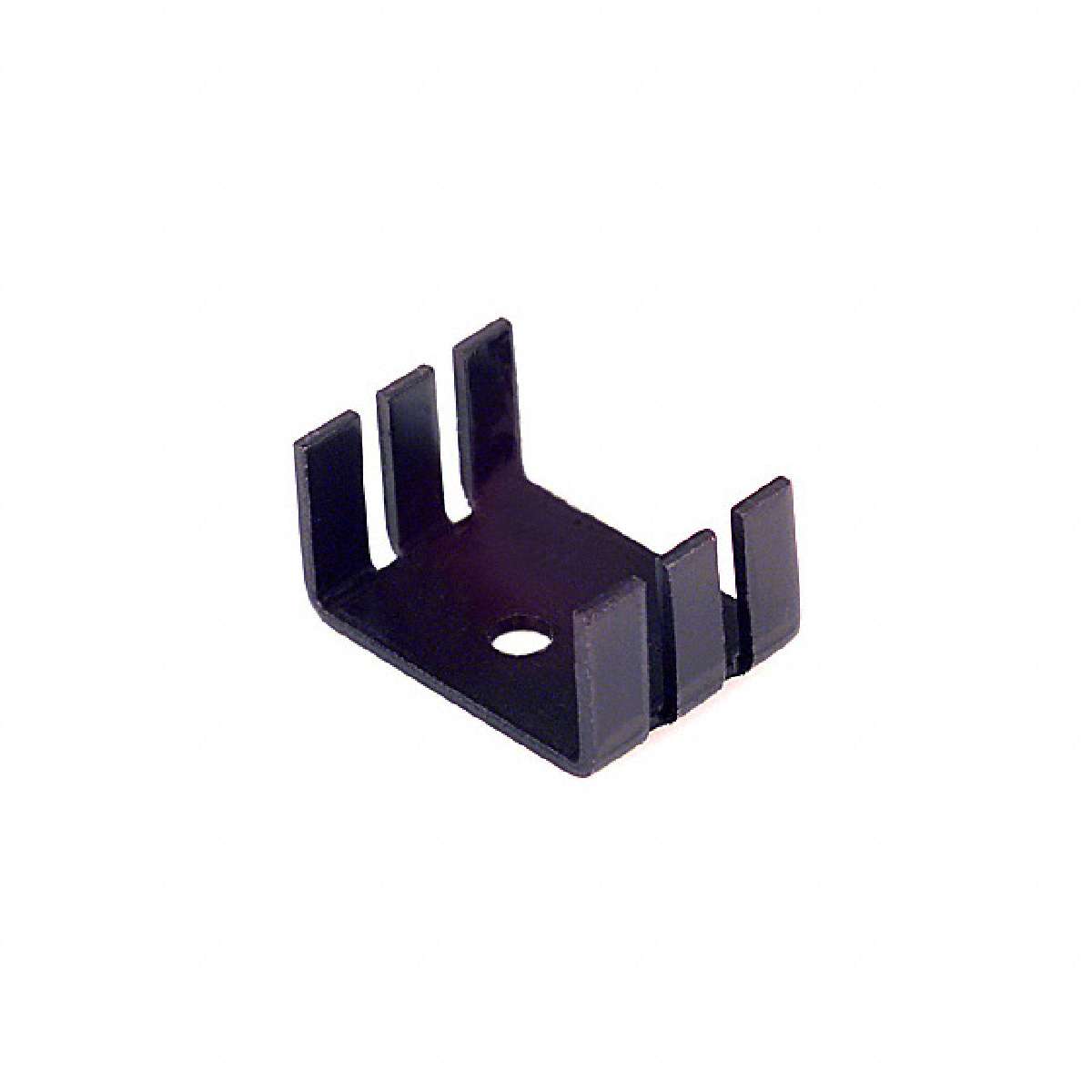

Product description : 289 Series 25.4 x 18.1 x 12.7 mm 9° C/W Thermal Resistance Bolt On Heat Sink
SPQ：1
Datasheet : 289-AB.pdf

Package Cooled	TO-218, TO-202, TO-220
Type	Board Level
Part Status	Active
Category	Fans, Thermal Management
Power Dissipation @ Temperature Rise	2W @ 50°C
Length	0.710" (18.03mm)
Thermal Resistance @ Forced Air Flow	9.0°C/W @ 400 LFM
Height Off Base (Height of Fin)	0.500" (12.70mm)
Thermal Resistance @ Natural	25°C/W
Attachment Method	Bolt On
Material	Aluminum
Shape	Rectangular, Fins
Manufacturer	Wakefield-Vette
Material Finish	Black Anodized
Series	289
Family	Thermal - Heat Sinks
Width	1.000" (25.40mm)
ECCN	EAR99

Datasheet： 289-AB.pdf
