| 1407-2 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

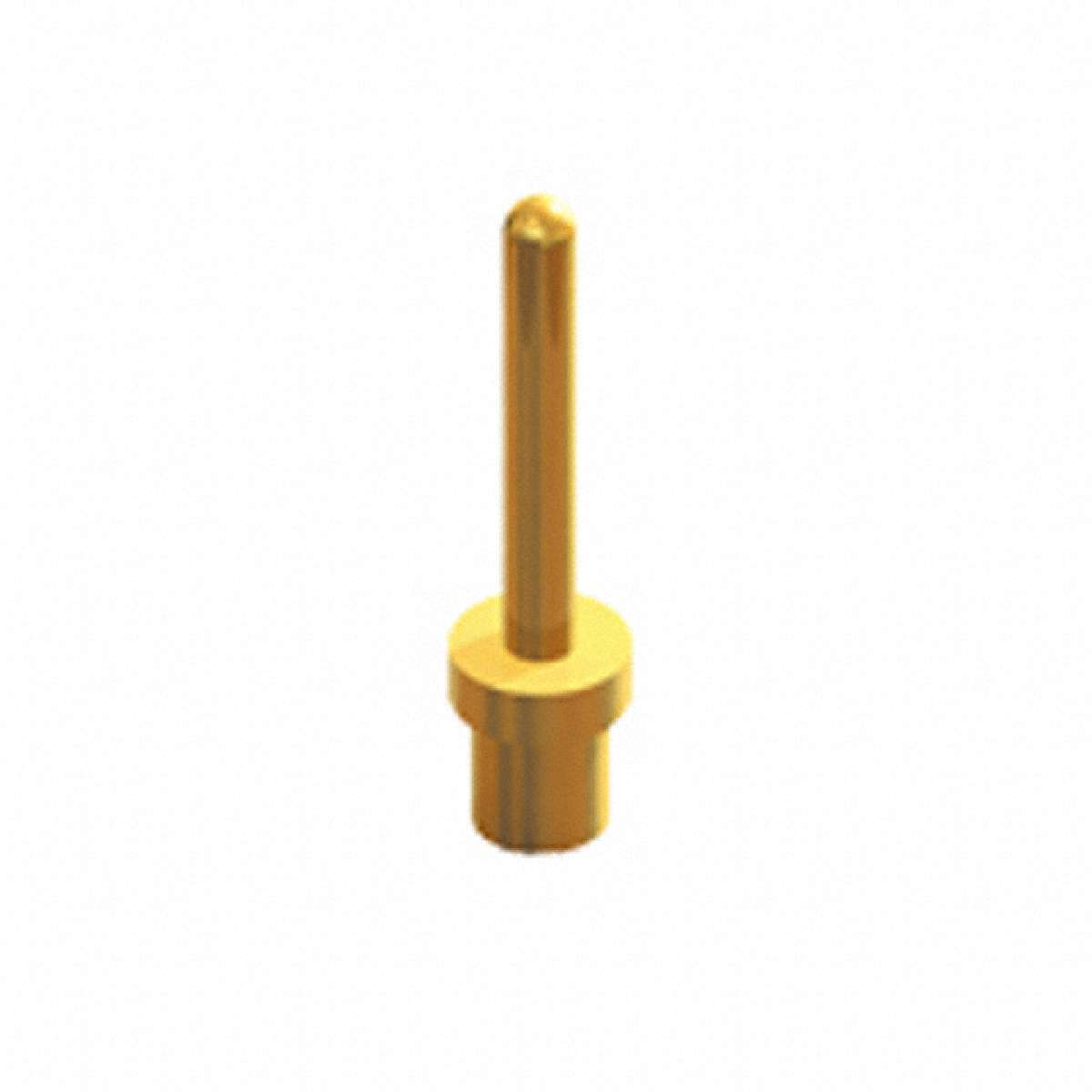

Gold .082 Inch Diameter MICRO Pin Swage Mount
|
||
| 标准包装：2500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Swage |
|---|---|
| Contact Finish | Gold |
| Length Below Flange | 0.082" (2.08mm) |
| Pin Size - Above Flange | 0.025" (0.64mm) Dia |
| Flange Diameter | 0.062" (1.57mm) |
| Manufacturer | Keystone Electronics |
| Contact Material | Brass |
| Length - Overall | 0.282" (7.16mm) |
| Mounting Type | Through Hole |
| Contact Finish Thickness | 10µin (0.25µm) |
| Packaging | Bulk |
| Mounting Hole Diameter | 0.052" (1.32mm) |
| Board Thickness | 0.062" (1.57mm) |
| Terminal Type | PC Pin |
| Pin Size - Below Flange | 0.047" (1.19mm) Dia |
| Part Status | Active |
| Category | Connectors, Interconnects |
| Insulation | Non-Insulated |
| Family | Terminals - PC Pin, Single Post Connectors |
| Terminal Style | Single End |
| Length Above Flange | 0.179" (4.55mm) |
| ECCN | EAR99 |
