| FESD05P30ZL | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

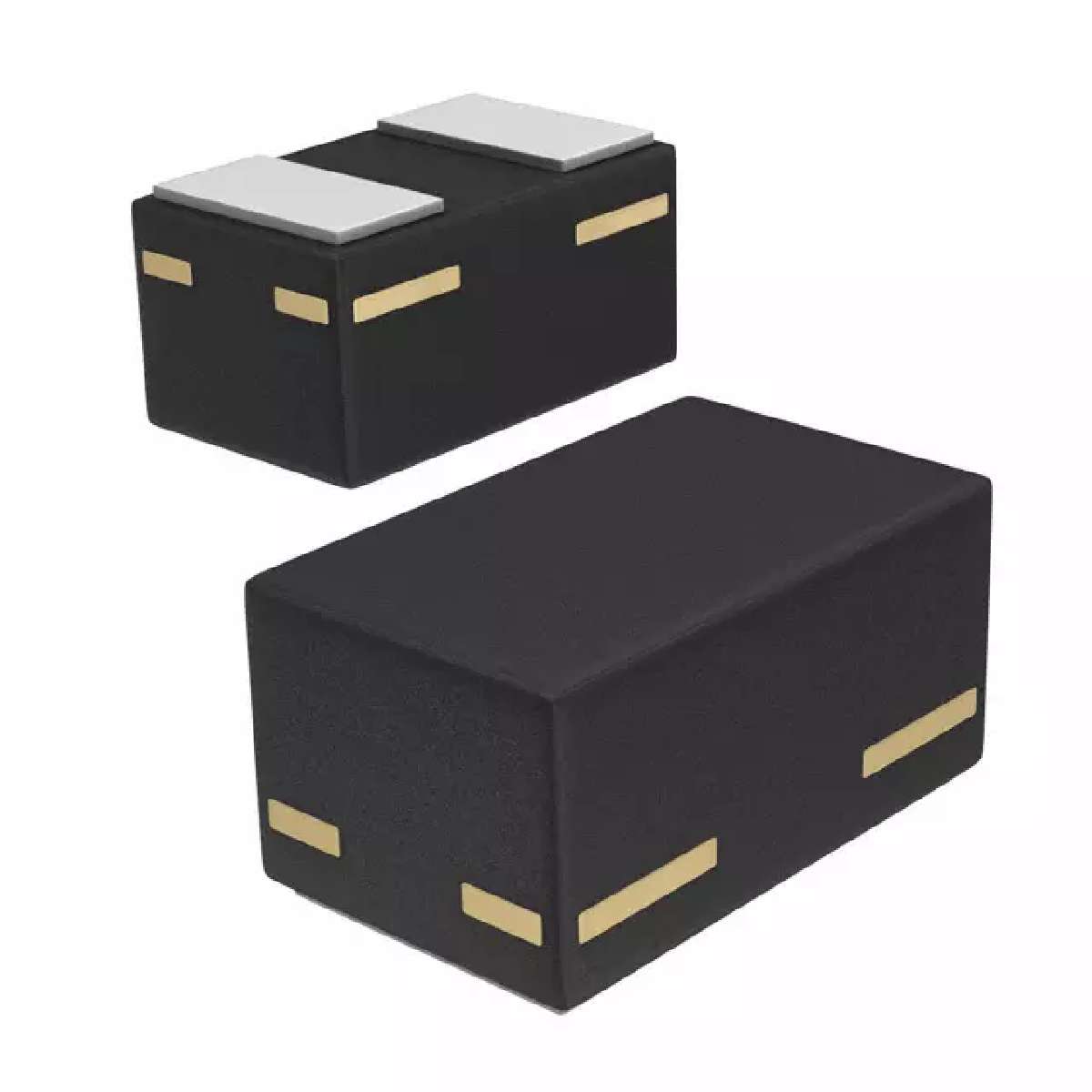

Single Channel 8.8 Vcl 30 pF Unidirectional SMT ESD Protector - SOD-882
|
||
| 标准包装：8000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Polarity: | Unidirectional |
|---|---|
| Number of Channels: | 1 Channel |
| Ipp - Peak Pulse Current: | 5 A |
| Vesd - Voltage ESD Contact: | 30 kV |
| Operating Supply Voltage: | 5.5 V |
| Minimum Operating Temperature: | - 55 C |
| Breakdown Voltage: | 6.2 V |
| Brand: | Fairchild Semiconductor |
| RoHS: | Details |
| Package / Case: | SOD-882 |
| Clamping Voltage: | 8.8 V |
| Maximum Operating Temperature: | + 150 C |
| Cd - Diode Capacitance: | 31 pF |
| Working Voltage: | 5.5 V |
| Packaging: | Reel |
| Manufacturer: | Fairchild Semiconductor |
| Pd - Power Dissipation: | 50 W |
| Operating Temperature Range: | - 55 C to + 150 C |
| Factory Pack Quantity: | 8000 |
| Vesd - Voltage ESD Air Gap: | 30 kV |
| Termination Style: | SMD/SMT |
| Product Category: | ESD Suppressors |
| Unit Weight: | 0.001072 oz |
| ECCN | EAR99 |
