| VPS24-1800 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

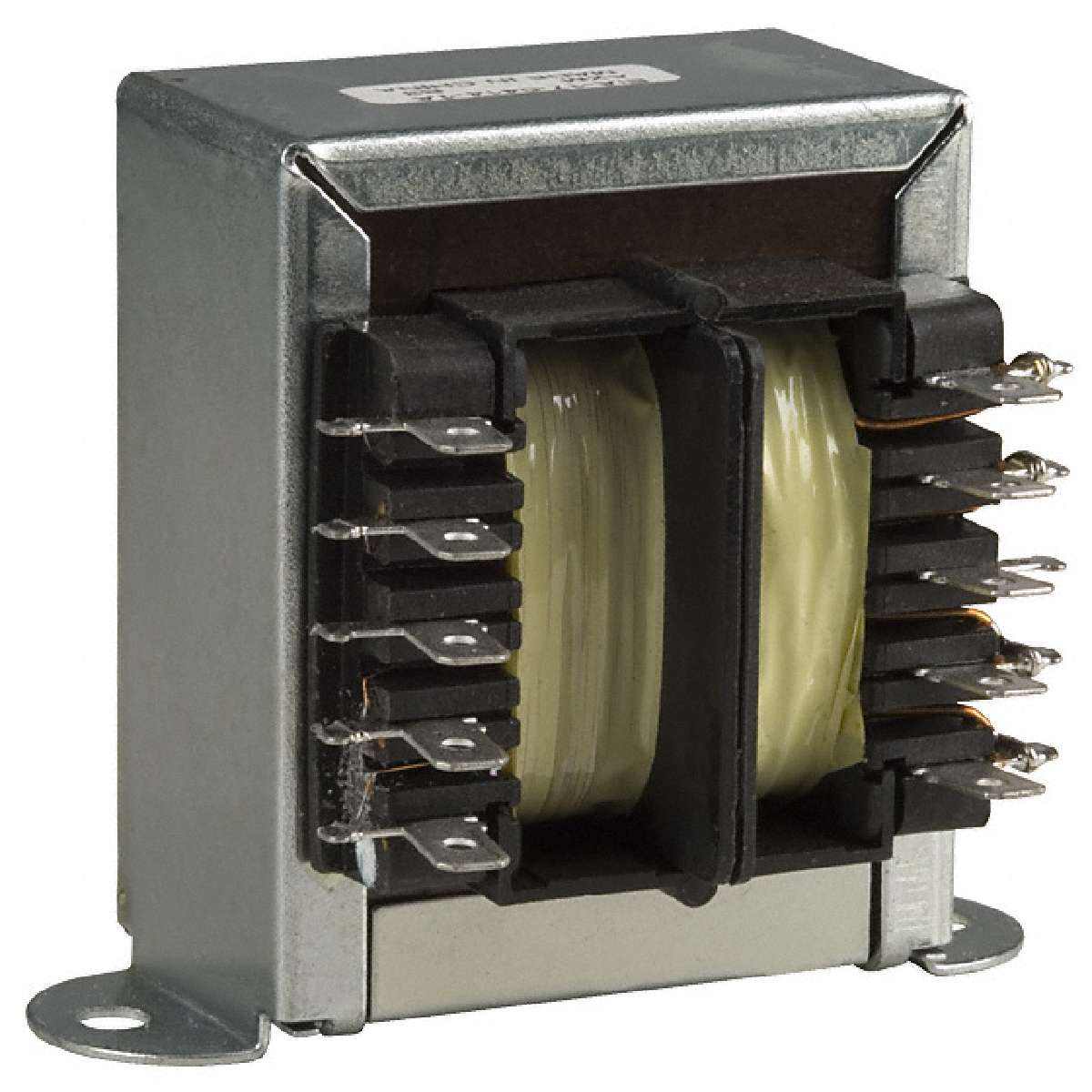

VPS Series 43 VA 3.6 A Dual Bobbin Insulated Chassis Mount Power Transformer
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 4000Vrms |
|---|---|
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Type | Laminated Core |
| Center Tap | No |
| Size / Dimension | 58.67mm L x 50.80mm W |
| Voltage - Primary | 115V, 230V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Dual |
| Family | Power Transformers |
| ECCN | EAR99 |
| Primary Winding(s) | Dual |
| Power - Max | 43 VA |
| Current - Output (Max) | Parallel 3.6A, Series 1.8A |
| Termination Style | Solder, Quick Connect |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 68.33mm |
| Series | Chassis Mount: World Series™ |
| Mounting Type | Chassis Mount |
