| TPSMD18A | ||
|---|---|---|
|
|
||
|
||

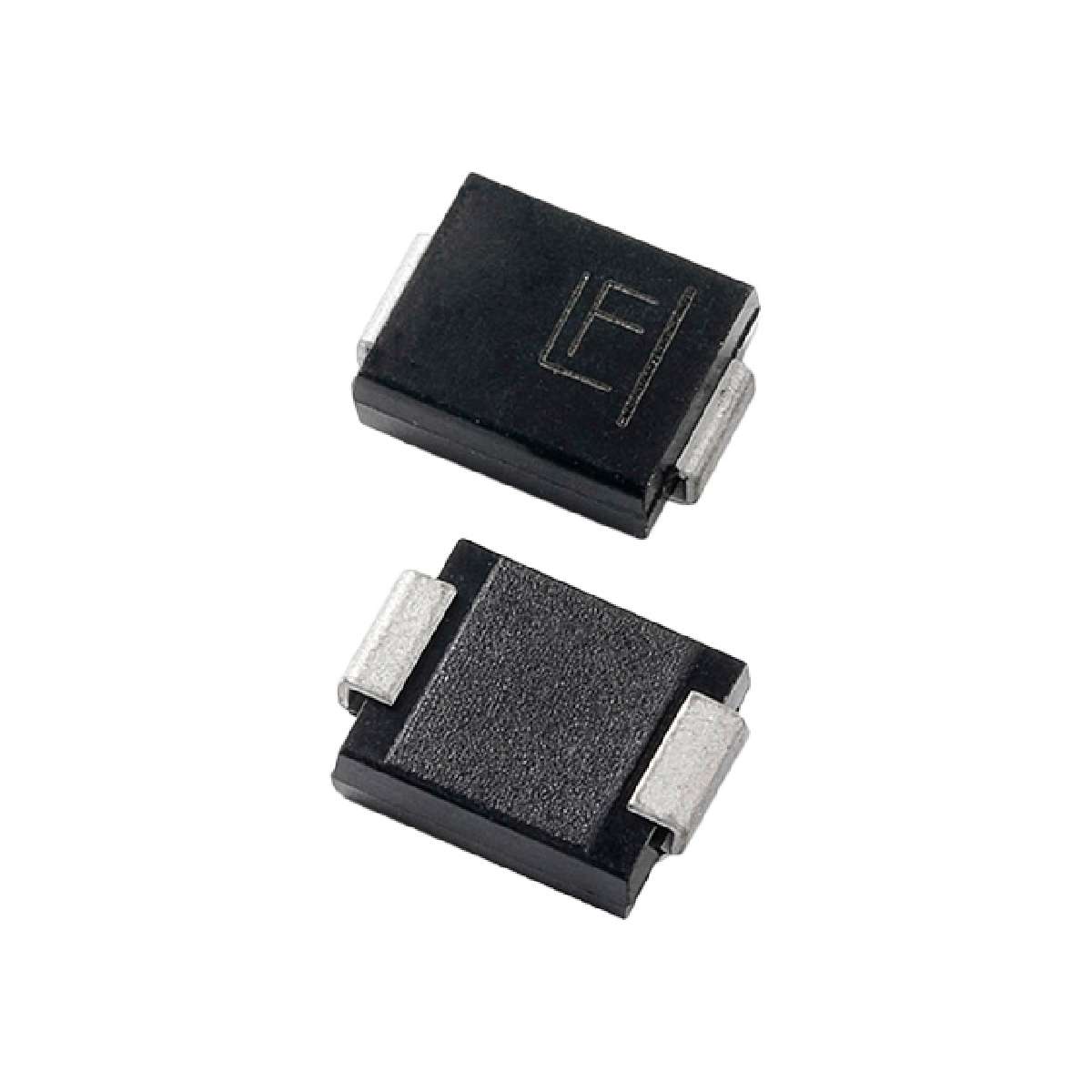

| Product description : TPSMD Series 20 V 3 kW Surface Mount Uni-Directional TVS Diode - DO-214AB | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Power - Peak Pulse | 3000W (3kW) |
|---|---|
| Type | Zener |
| Power Line Protection | No |
| Part Status | Active |
| Manufacturer | Littelfuse Inc. |
| Voltage - Breakdown (Min) | 20V |
| Unidirectional Channels | 1 |
| Applications | Automotive |
| Voltage - Reverse Standoff (Typ) | 18V |
| Packaging | Digi-Reel® |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Voltage - Clamping (Max) @ Ipp | 29.2V |
| Category | Circuit Protection |
| Current - Peak Pulse (10/1000µs) | 102.7A |
| Series | Automotive, AEC-Q101, TPSMD |
| Family | TVS - Diodes |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| ECCN | EAR99 |
