| JANTXV1N5553 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

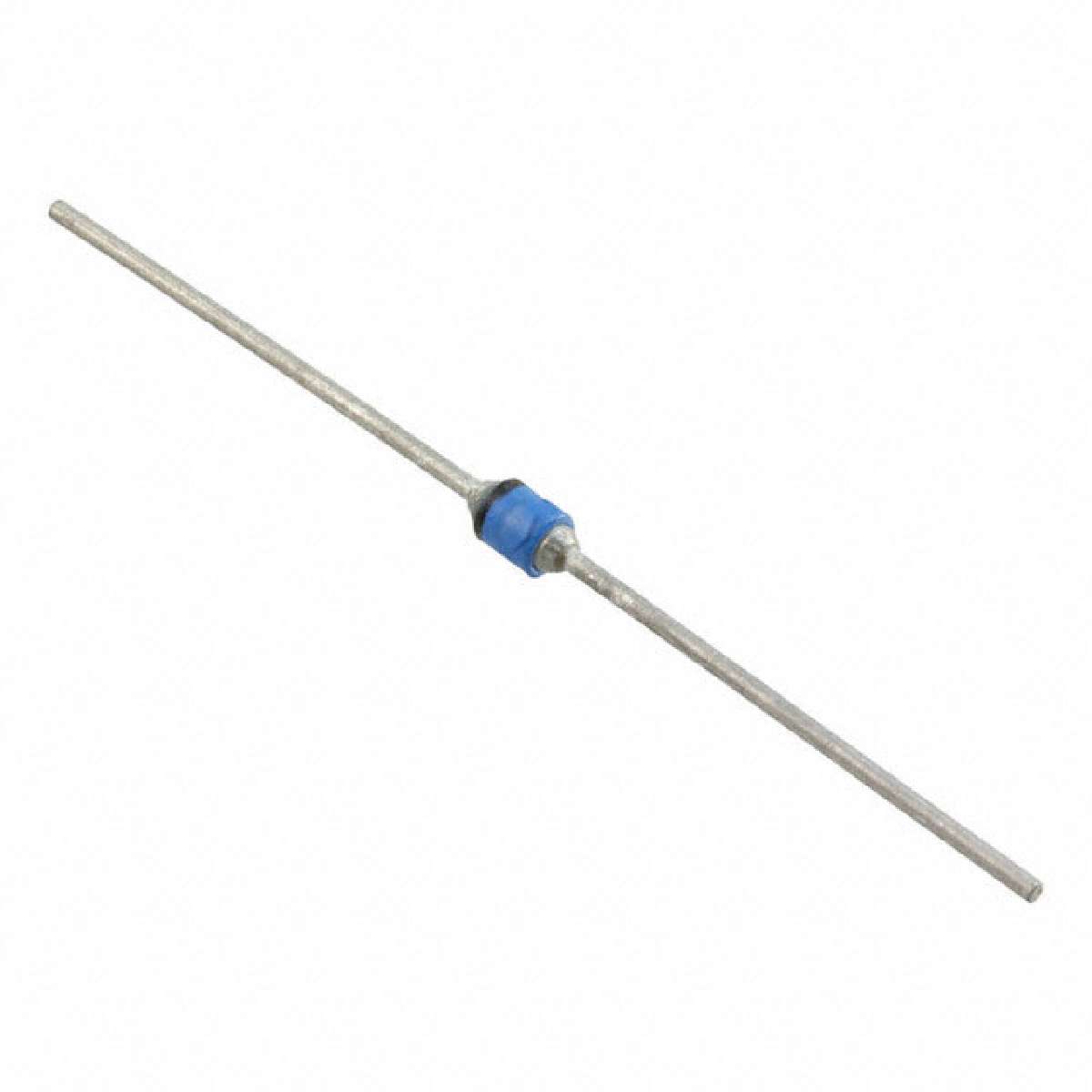

JANTXV Series 800 V 5 A Axial Through Hole Standard Recovery Glass Rectifier
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -65°C ~ 175°C |
|---|---|
| Package / Case | B, Axial |
| Part Status | Quote Required |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Manufacturer | Microsemi IRE Division |
| Current - Reverse Leakage @ Vr | 1µA @ 800V |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 800V |
| Packaging | Bulk |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | * |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 2µs |
| Series | Military, MIL-PRF-19500/420 |
| Mounting Type | Through Hole |
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 9A |
| ECCN | EAR99 |
