| IRFS7430TRL7PP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Single N-Channel 40 V 0.75 mOhm 305 nC HEXFET® Power Mosfet - D2PAK-7
|
||
| 标准包装：800 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| FET Feature | Standard |
|---|---|

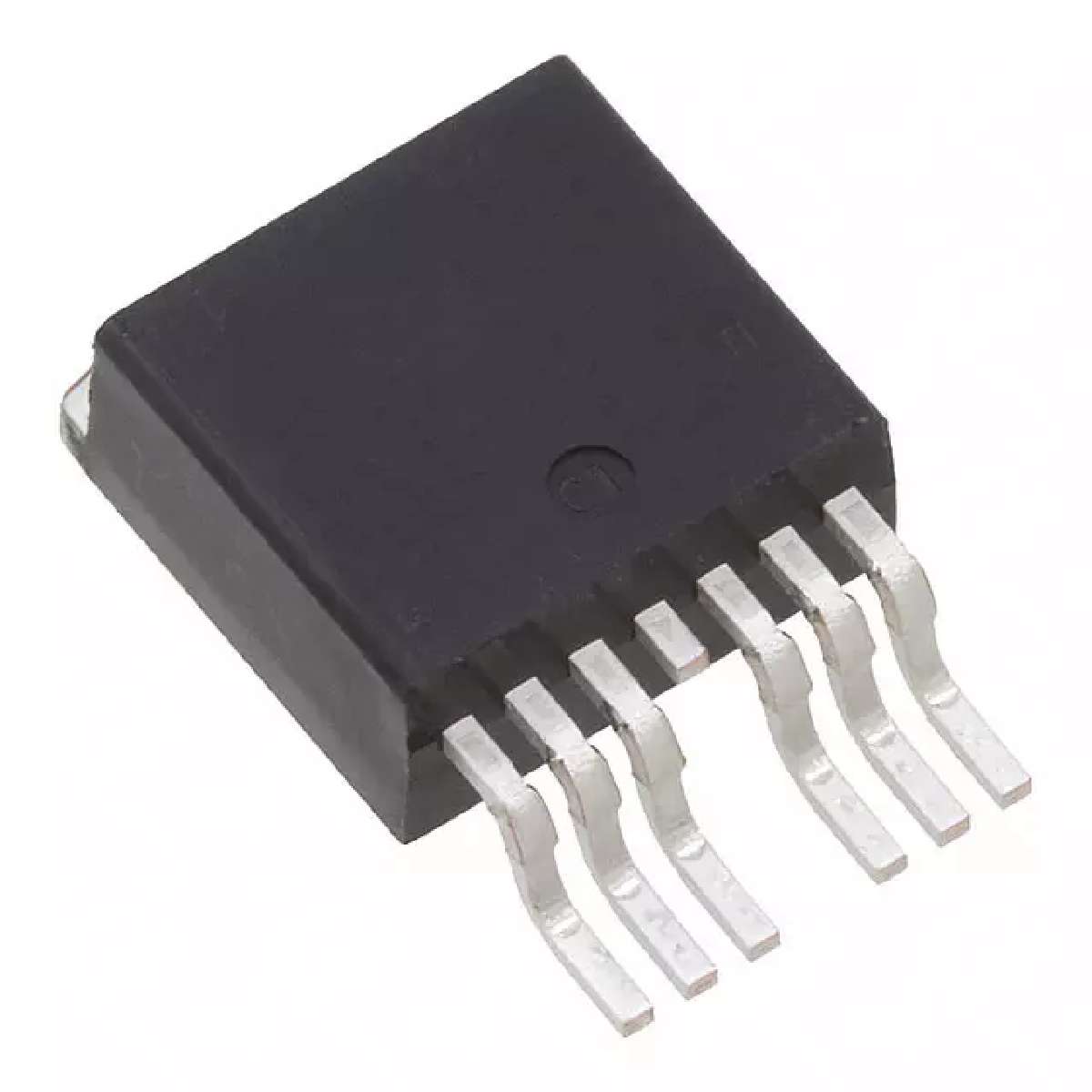

| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Series | HEXFET®, StrongIRFET™ |
| Vgs(th) (Max) @ Id | 3.9V @ 250µA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Packaging | Cut Tape (CT) |
| Rds On (Max) @ Id, Vgs | 0.75 mOhm @ 100A, 10V |
| Power - Max | 375W |
| Supplier Device Package | D2PAK (7-Lead) |
| Gate Charge (Qg) @ Vgs | 460nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 13975pF @ 25V |
| ECCN | EAR99 |
