| HR10-10R-12S(73) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

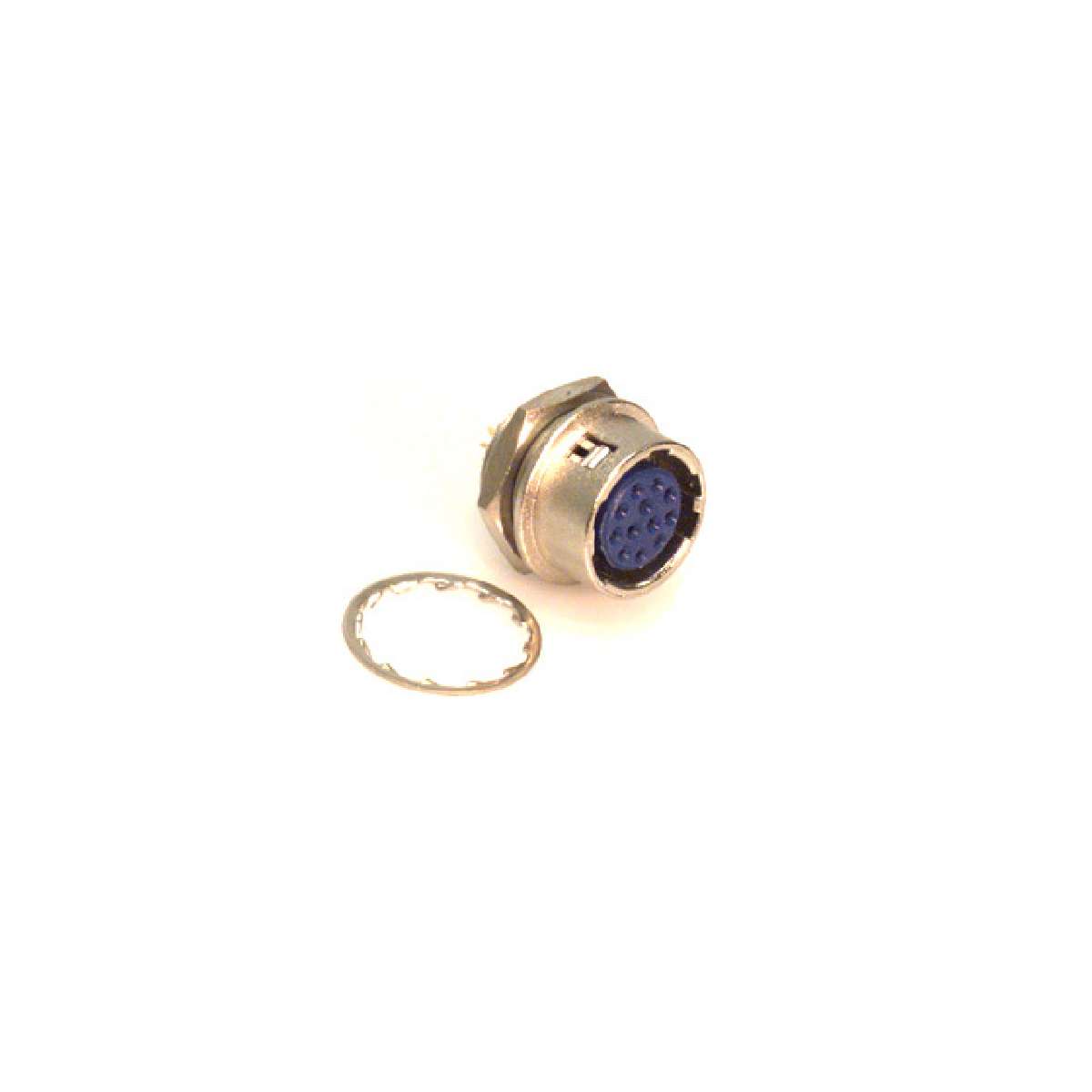

HR10 Series 12 Position Circular Receptacle Push Pull Connector
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder Cup |
|---|---|
| Orientation | Keyed |
| Contact Finish | Gold |
| Category | Connectors, Interconnects |
| Shell Size - Insert | 10 |
| Series | HR10 |
| Family | Circular Connectors |
| Operating Temperature | -25°C ~ 85°C |
| Packaging | Bulk |
| ECCN | EAR99 |
| Fastening Type | Push-Pull |
| Shell Material, Finish | Brass and Zinc, Nickel Plated |
| Part Status | Active |
| Manufacturer | Hirose Electric Co Ltd |
| Voltage - Rated | 100VAC |
| Number of Positions | 12 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 2A |
| 数据手册： |
|---|
