ZXM64P03XTA

ACTIVE EAR99

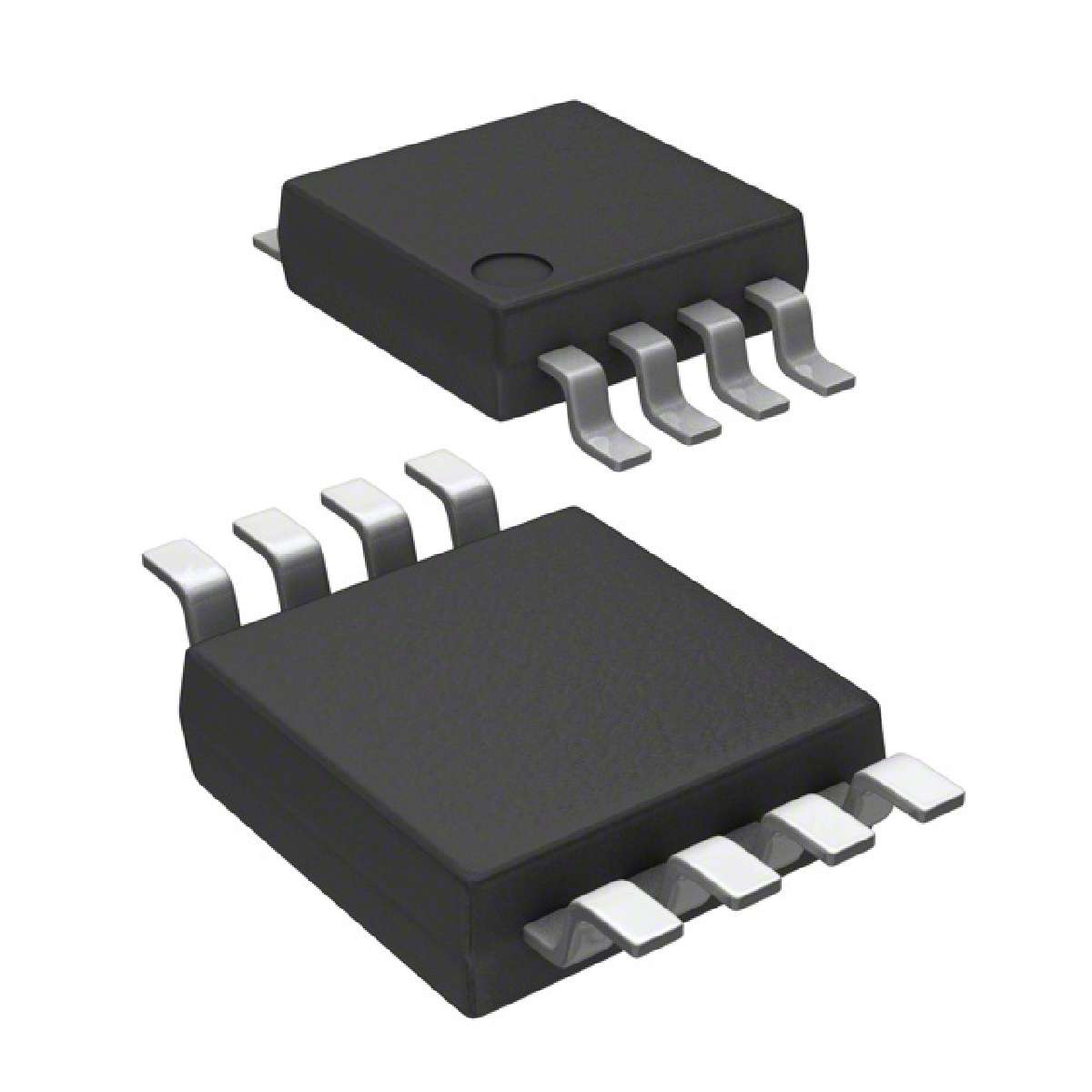

Product description : P-Channel 30 V 2.3 A 1.8 W Surface Mount Mosfet - MSOP-8
SPQ：1000
Datasheet : ZXM64P03XTA.pdf

Product:	MOSFET Small Signal
Packaging:	Reel
Minimum Operating Temperature:	- 55 C
Technology:	Si
Height:	0.95 mm
Vgs - Gate-Source Voltage:	20 V
Mounting Style:	SMD/SMT
Fall Time:	6.2 ns
Length:	3.1 mm
Series:	ZXM64
Factory Pack Quantity:	1000
Brand:	Diodes Incorporated
RoHS:	Details
Id - Continuous Drain Current:	- 3.8 A
Rise Time:	6.2 ns
Transistor Type:	1 P-Channel
ECCN	EAR99
Width:	3.1 mm
Rds On - Drain-Source Resistance:	75 mOhms
Pd - Power Dissipation:	1.1 W
Package / Case:	MSOP-8
Configuration:	Single Quad Drain Triple Source
Unit Weight:	0.004938 oz
Number of Channels:	1 Channel
Typical Turn-On Delay Time:	4.4 ns
Manufacturer:	Diodes Incorporated
Transistor Polarity:	P-Channel
Channel Mode:	Enhancement
Typical Turn-Off Delay Time:	40 ns
Product Category:	MOSFET
Vds - Drain-Source Breakdown Voltage:	- 30 V
Type:	MOSFET
Maximum Operating Temperature:	+ 150 C

Datasheet： ZXM64P03XTA.pdf
