| YC324-JK-071KL | ||
|---|---|---|
|
|
||
|
||

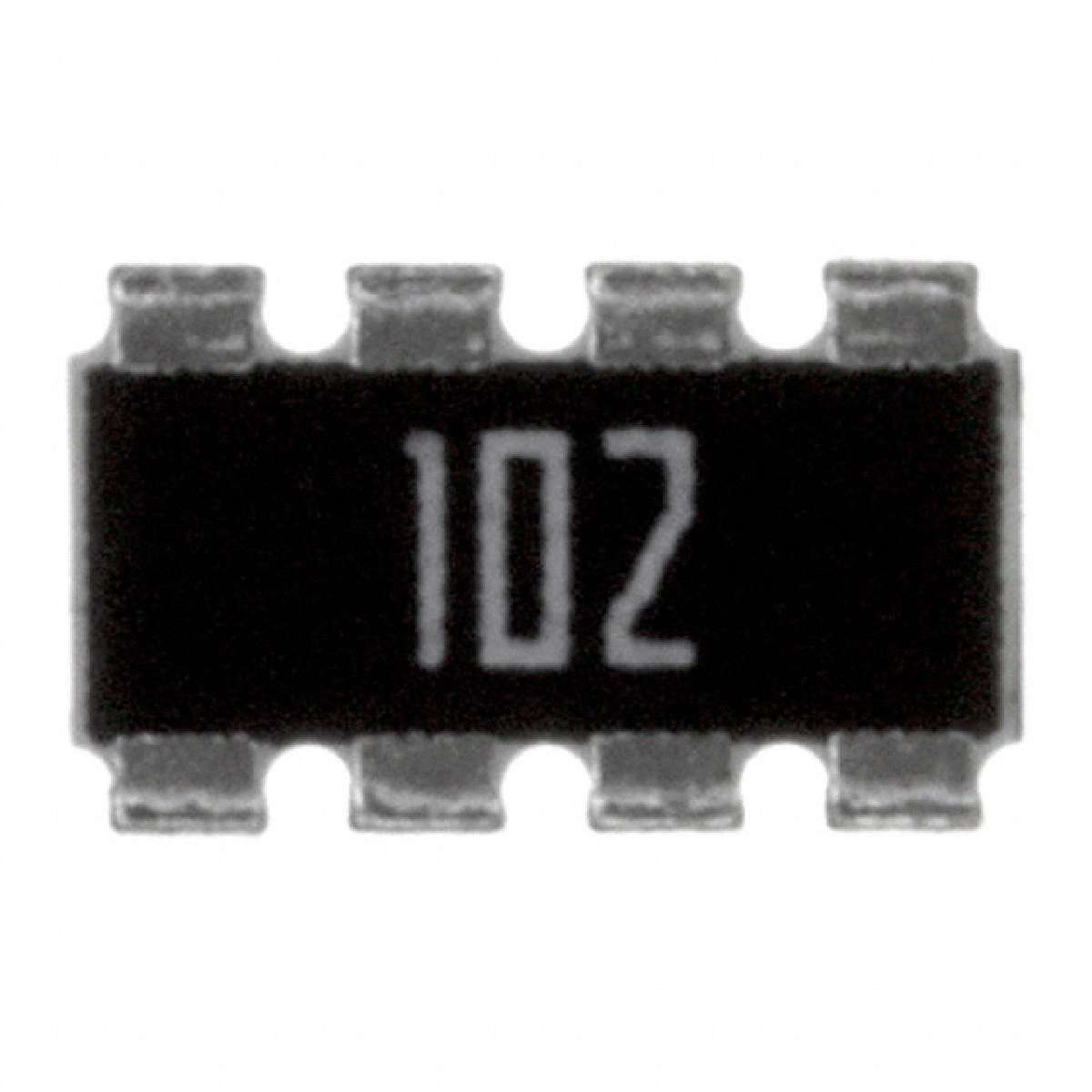

| Product description : YC324 Series 2012 4 Elements 1 kΩ ±5% 0.125 W ±200 ppm/°C Resistor Array | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Tolerance | ±5% |
|---|---|
| Power Per Element | 125mW |
| Temperature Coefficient | ±200ppm/°C |
| Size / Dimension | 0.200" L x 0.126" W (5.08mm x 3.20mm) |
| Category | Resistors |
| Number of Pins | 8 |
| Resistance (Ohms) | 1k |
| Family | Resistor Networks, Arrays |
| Mounting Type | Surface Mount |
| Packaging | Digi-Reel® |
| Circuit Type | Isolated |
| Package / Case | 2012, Convex, Long Side Terminals |
| Height | 0.028" (0.70mm) |
| Part Status | Active |
| Manufacturer | Yageo |
| Number of Resistors | 4 |
| Series | YC324 |
| Applications | DDRAM, SDRAM |
| Operating Temperature | -55°C ~ 155°C |
| ECCN | ECL99 |
