| WT11S | ||
|---|---|---|
|
|
||
|
||

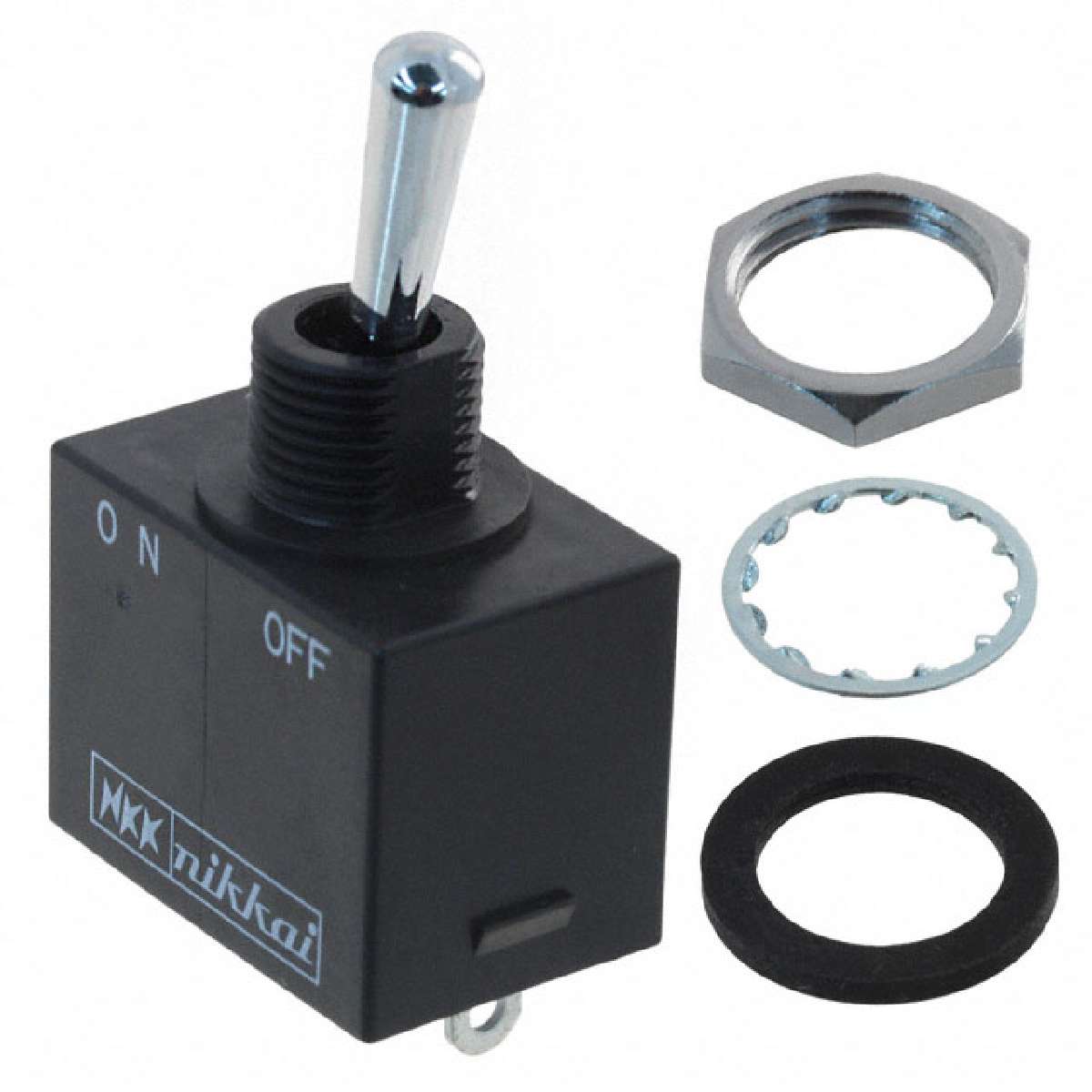

| Product description : WT Series SPST On-None-Off Solder Lug Panel Mount Toggle Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Packaging: | Bulk |
|---|---|
| Actuator: | Bat |
| Operating Temperature Range: | - 30 C to + 70 C |
| Contact Material: | Copper |
| Mounting Style: | Panel |
| Switch Function: | ON - OFF |
| Manufacturer: | NKK Switches |
| Series: | WT |
| Factory Pack Quantity: | 1 |
| Part # Aliases: | WT-11AS |
| Termination Style: | Solder Lug |
| Product Category: | Toggle Switches |
| Life: | 15000 Cycles |
| ECCN | EAR99 |
| Housing Material: | Polyamide, Glass Fiber Reinforced |
| Bushing Size: | M12 |
| Contact Form: | SPST |
| Contact Plating: | Tin |
| Mounting Angle: | Vertical |
| Terminal Seal: | Sealed |
| Voltage Rating AC: | 125 V, 250 V |
| Voltage Rating DC: | 30 VDC |
| Brand: | NKK Switches |
| RoHS: | Details |
| Flammability Rating: | UL 94 V-0 |
| Current Rating: | 10 A |
| Type: | Environmentally Sealed Toggles |
