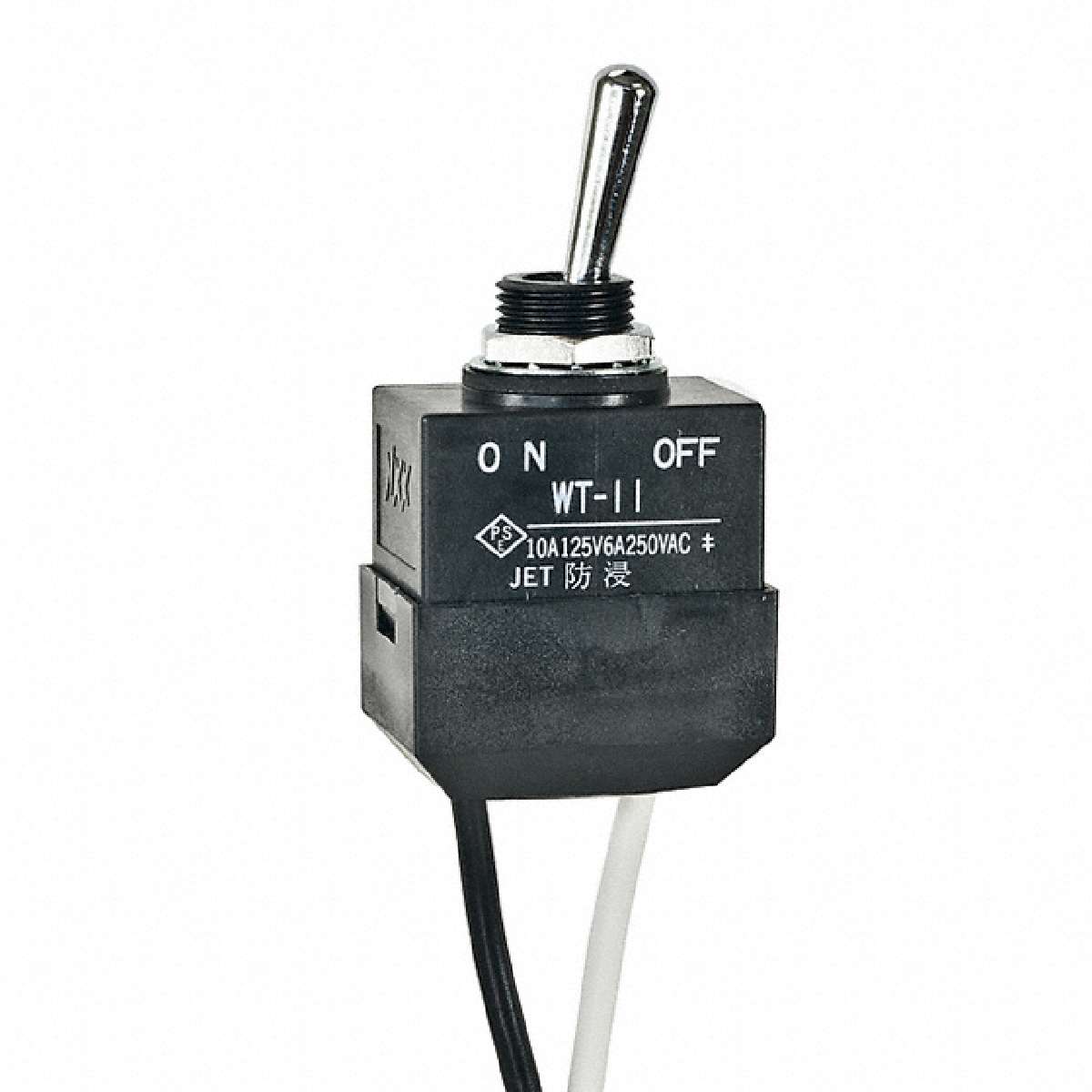

| WT11L | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
STD SIZE TOGGLE/ENVIRONMENTALLY SEALED
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | On-Off |
|---|---|
| Termination Style | Wire Leads |
| Electrical Life | 15,000 Cycles |
| Mounting Type | Panel Mount |
| Packaging | Bulk |
| Actuator Type | Standard Round |
| Voltage Rating - AC | 125V |
| Features | Epoxy Sealed Terminals |
| Category | Switches |
| Series | WT |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Current Rating | 10A (AC/DC) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Voltage Rating - DC | 30V |
| Manufacturer | NKK Switches |
| Actuator Material | Brass, Chrome Plated |
| Circuit | SPST |
| Actuator Length | 17.50mm |
| Bushing Thread | M12 x 1 |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Family | Toggle Switches |
| Operating Temperature | -30°C ~ 70°C |
| ECCN | EAR99 |
