| WR11AF | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

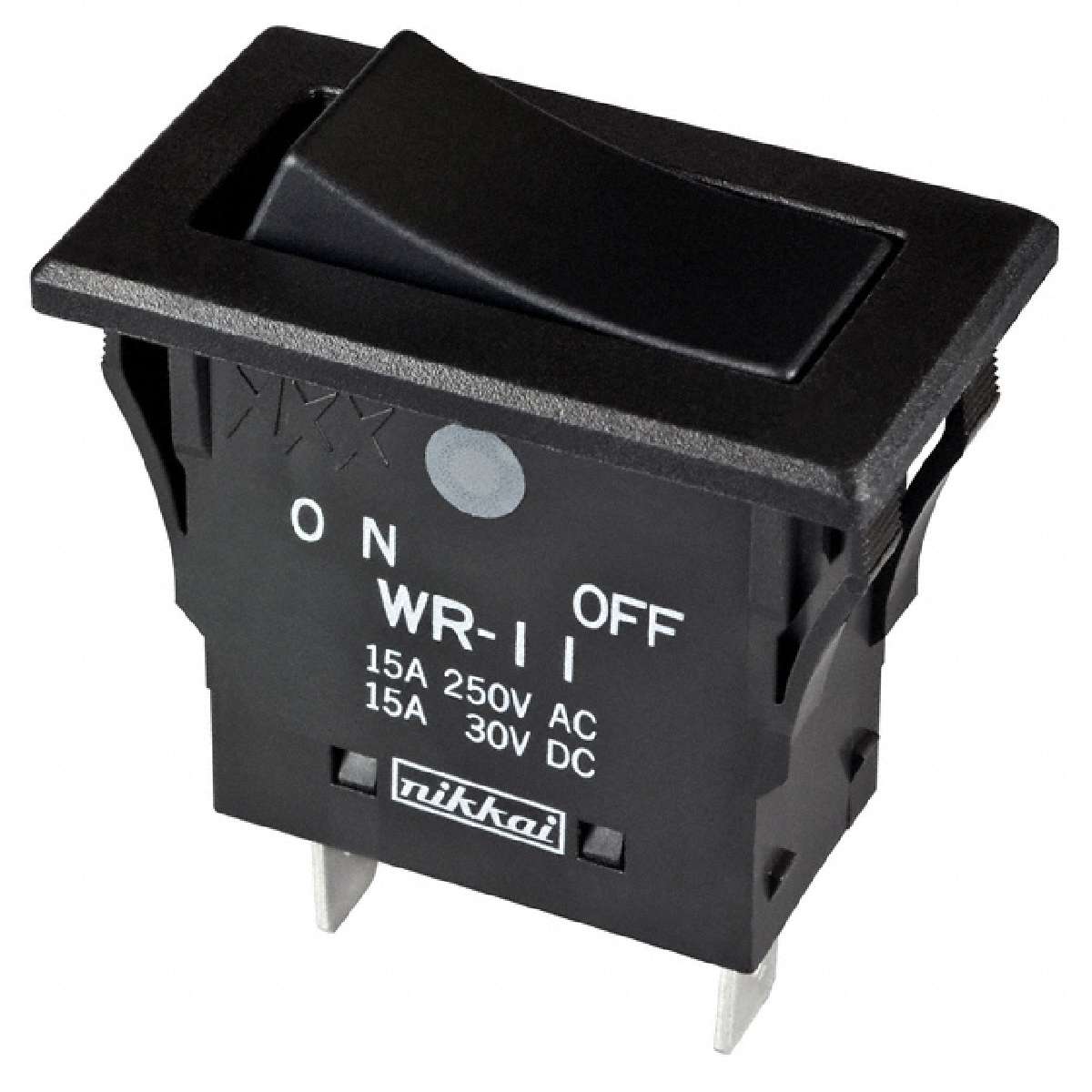

WR Series 15 A SPST On-None-Off Environmentally Sealed Rocker Switch
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Color: | Black |
|---|---|
| Contact Rating: | 15 A at 125 VAC, 250 VAC, 30 VDC |
| Terminal Seal: | Epoxy |
| Actuator: | Rocker |
| Voltage Rating AC: | 250 V |
| Operating Temperature Range: | - 25 C to + 85 C |
| Contact Form: | SPST |
| Part # Aliases: | WR-11KFE |
| RoHS: | Details |
| Product Category: | Rocker Switches |
| Contact Plating: | Tin |
| ECCN | EAR99 |
| Packaging: | Bulk |
| Housing Material: | Polyamide |
| Switch Function: | ON - OFF |
| Manufacturer: | NKK Switches |
| Series: | WR |
| Voltage Rating DC: | 30 VDC |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Quick Connect Terminal |
| Current Rating: | 15 A |
| Mounting Style: | Panel |
