| WP710A10CGCK | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

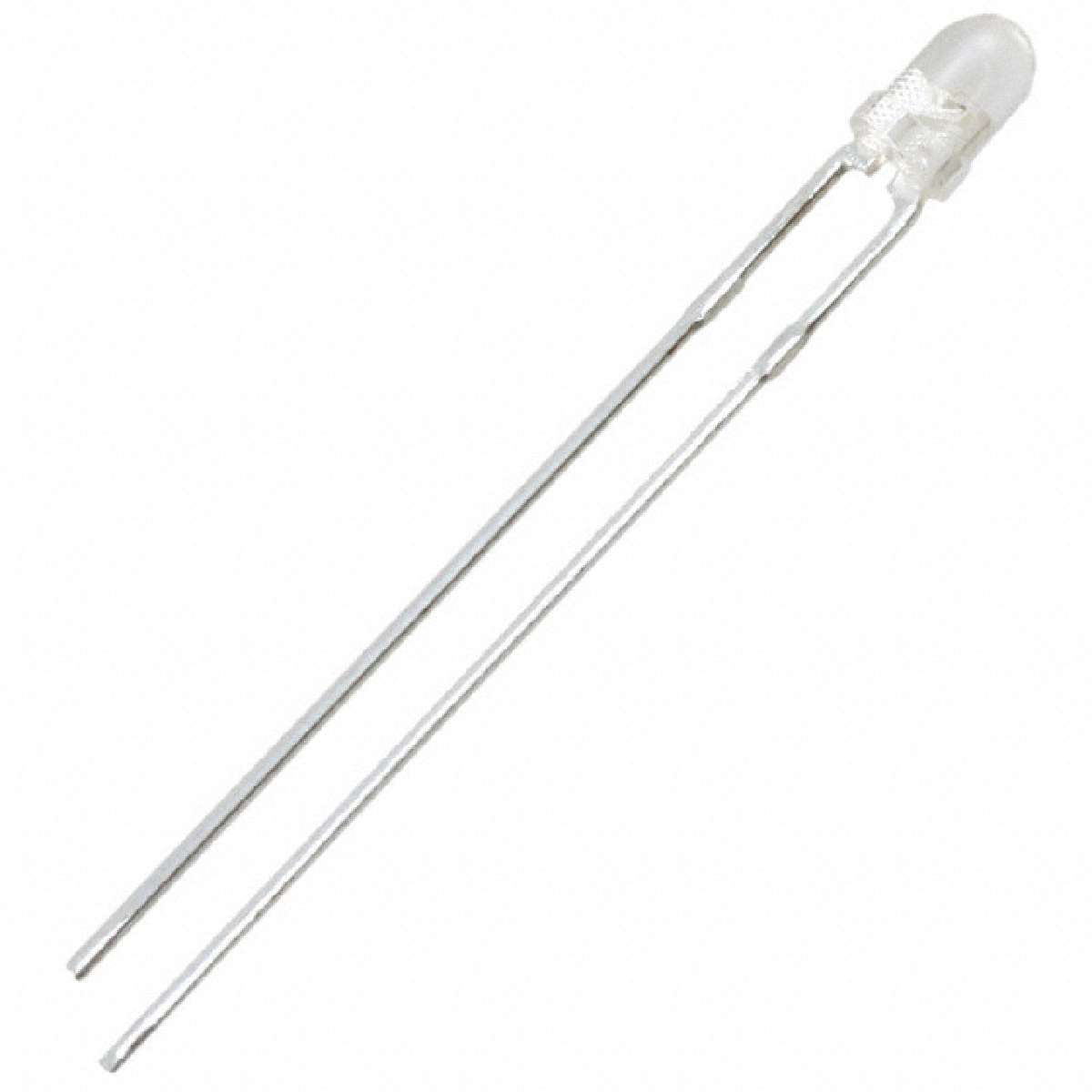

Green 3 mm 34º Water Clear 400 mcd 2.1 V Solid State Lamp - T-1
|
||
| 标准包装：500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Water Clear |
|---|---|
| Viewing Angle: | 34 deg |
| Power Rating: | 75 mW |
| Minimum Operating Temperature: | - 40 C |
| Number of LEDs: | 1 |
| Package / Case: | T-1 |
| Height: | 4.6 mm |
| Lens Dimensions: | 3 mm x 4.6 mm |
| Vf - Forward Voltage: | 2.1 V |
| If - Forward Current: | 20 mA |
| Peak Wavelength: | 574 nm |
| Operating Supply Voltage: | 2.1 V |
| Brand: | Kingbright |
| Product Category: | Standard LEDs - Through Hole |
| Wavelength: | 570 nm |
| ECCN | EAR99 |
| Width: | 3 mm |
| Packaging: | Bulk |
| Luminous Intensity: | 400 mcd |
| Wavelength/Color Temperature: | 570 nm |
| LED Size: | T-1 (3 mm) |
| Illumination Color: | Green |
| Lens Shape: | Dome |
| Mounting Style: | Through Hole |
| Length: | 3 mm |
| Manufacturer: | Kingbright |
| Vr - Reverse Voltage: | 5 V |
| Factory Pack Quantity: | 500 |
| RoHS: | Details |
| Type: | Solid State LED Lamp |
| Maximum Operating Temperature: | + 85 C |
