| WP115VEGW | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

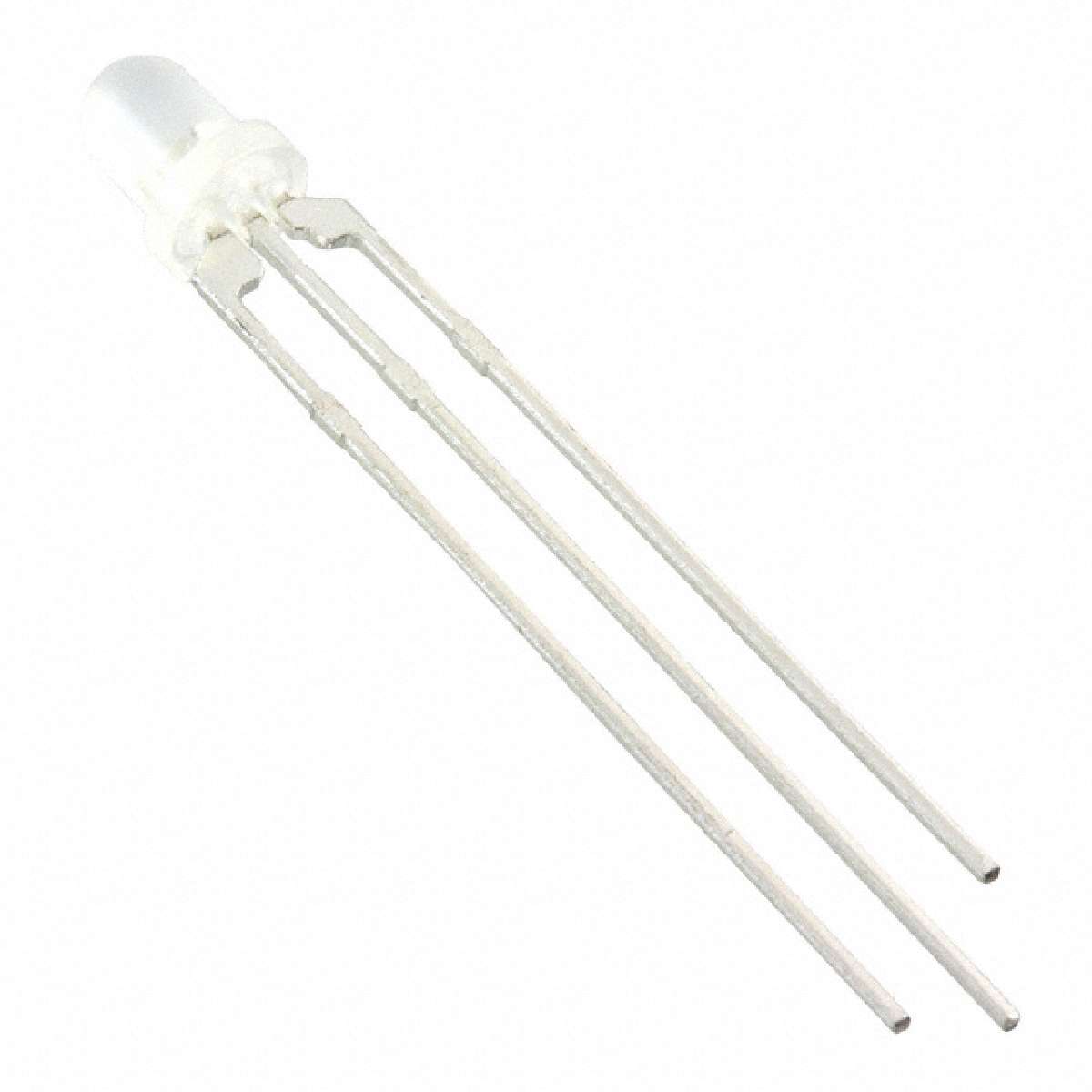

Red/Green T-1 3 mm 60° Diffused 50/50 mcd 2/2.2 V Indicator LED Through Hole
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Tinted, Diffused |
|---|---|
| Packaging: | Bulk |
| Power Rating: | 62.5 mW |
| Minimum Operating Temperature: | - 40 C |
| Number of LEDs: | 2 |
| Package / Case: | T-1 |
| Height: | 5 mm |
| Lens Dimensions: | 3 mm |
| Length: | 3 mm |
| Manufacturer: | Kingbright |
| Factory Pack Quantity: | 500 |
| RoHS: | Details |
| Type: | Bi-Color Indicator Lamp |
| Maximum Operating Temperature: | + 85 C |
| Width: | 3 mm |
| Viewing Angle: | 60 deg |
| Luminous Intensity: | 50 mcd, 30 mcd |
| Wavelength/Color Temperature: | 625 nm, 568 nm |
| LED Size: | T-1 (3 mm) |
| Illumination Color: | Red, Green |
| Lens Shape: | Round |
| Mounting Style: | Through Hole |
| If - Forward Current: | 20 mA |
| Operating Supply Voltage: | 2 V |
| Brand: | Kingbright |
| Product Category: | Standard LEDs - Through Hole |
| Wavelength: | 625 nm, 568 nm |
| ECCN | EAR99 |
