| WP113SRDT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

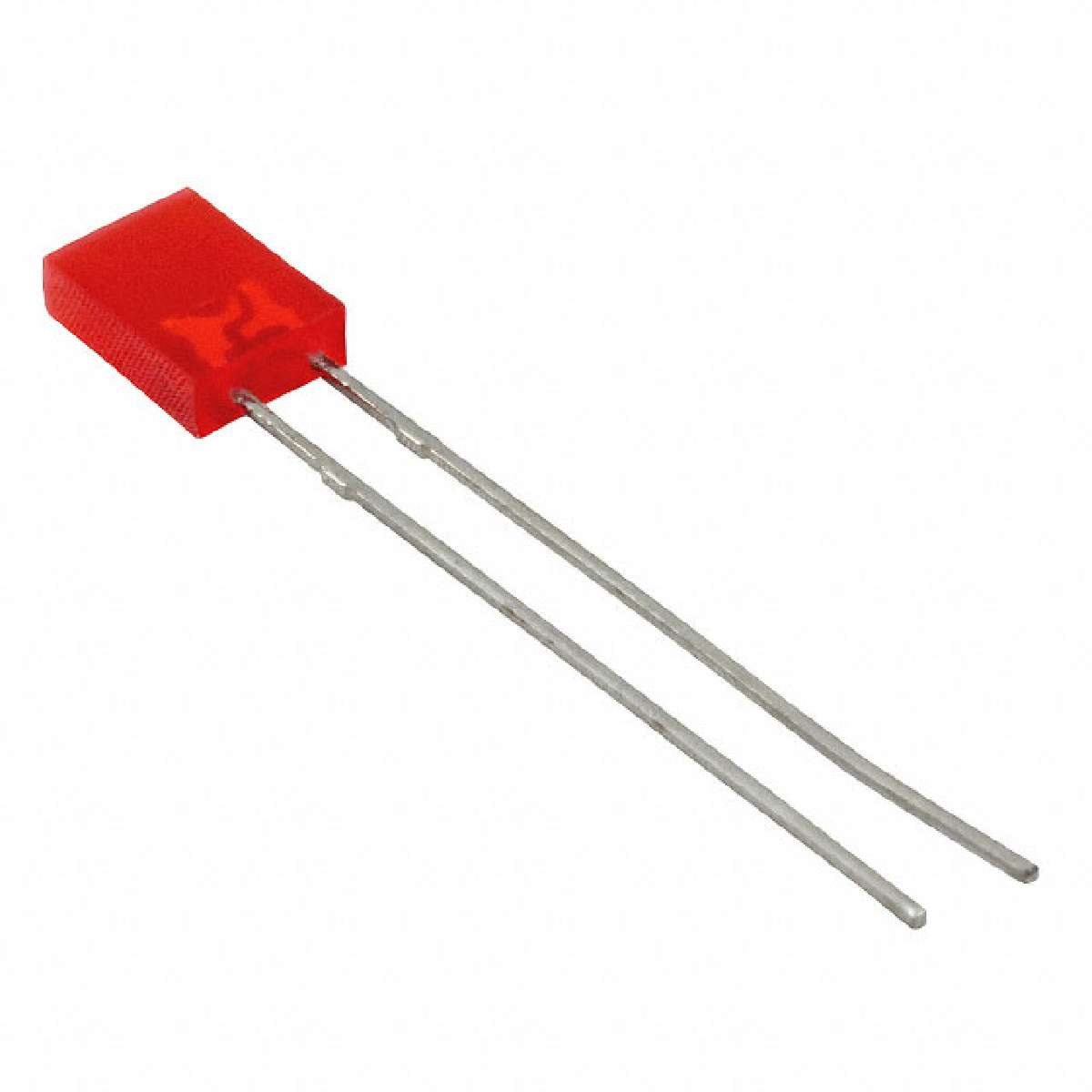

Red 2 x 5 mm 110° Tinted Diffused 100 mcd 1.85 V Rectangular LED Through Hole
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Diffused |
|---|---|
| Packaging: | Bulk |
| Luminous Intensity: | 80 mcd |
| Wavelength/Color Temperature: | 640 nm |
| LED Size: | 2 mm x 5 mm x 7 mm |
| Illumination Color: | Red |
| Lens Shape: | Rectangular |
| Mounting Style: | Through Hole |
| If - Forward Current: | 20 mA |
| Operating Supply Voltage: | 1.85 V |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Type: | RECTANGULAR LED LAMP |
| Maximum Operating Temperature: | + 85 C |
| Width: | 2 mm |
| Viewing Angle: | 110 deg |
| Minimum Operating Temperature: | - 40 C |
| Number of LEDs: | 1 |
| Package / Case: | 2 mm x 5 mm x 7 mm |
| Height: | 7 mm |
| Lens Dimensions: | 2 mm x 5 mm x 7 mm |
| Length: | 5 mm |
| Manufacturer: | Kingbright |
| Vr - Reverse Voltage: | 5 V |
| Brand: | Kingbright |
| Product Category: | Standard LEDs - Through Hole |
| Wavelength: | 640 nm |
| ECCN | EAR99 |
| 数据手册： |
|---|
