| VPT230-4350 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

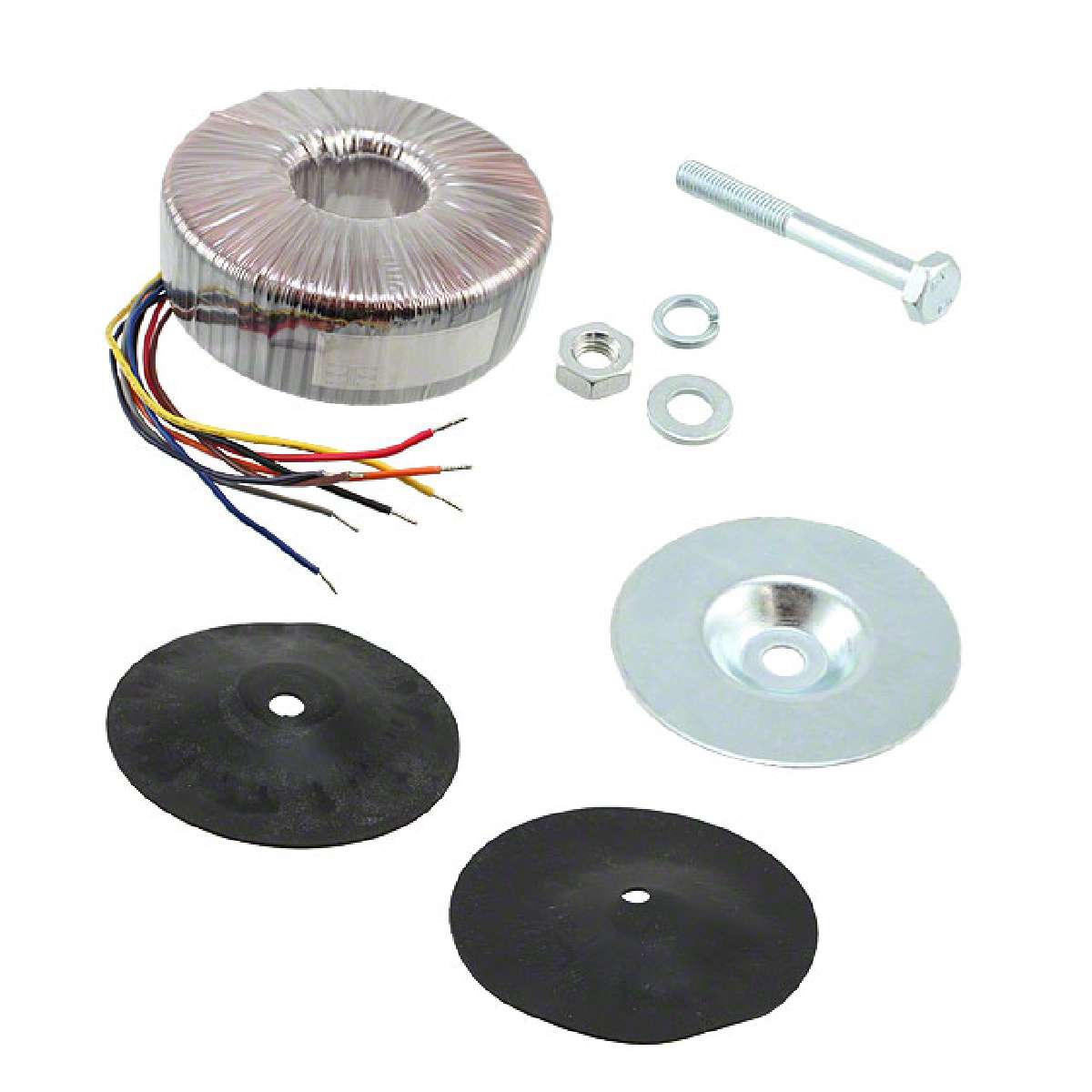

VPT Series 1000 VA 8.7 A Dual Bobbin Insulated Chassis Mount Power Transformer
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Secondary (Full Load) | Parallel 115V, Series 230V |
|---|---|
| Type | Toroidal |
| Center Tap | No |
| Size / Dimension | 175.00mm Dia x 68.00mm W |
| Voltage - Primary | 115V, 230V |
| Manufacturer | Triad Magnetics |
| Series | Chassis Mount: World Series™ |
| Mounting Type | Chassis Mount |
| Power - Max | 1000 VA |
| Current - Output (Max) | Parallel 8.7A, Series 4.35A |
| Termination Style | Wire Leads |
| Part Status | Active |
| Category | Transformers |
| Secondary Winding(s) | Dual |
| Family | Power Transformers |
| ECCN | EAR99 |
