| VPP10-5600 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

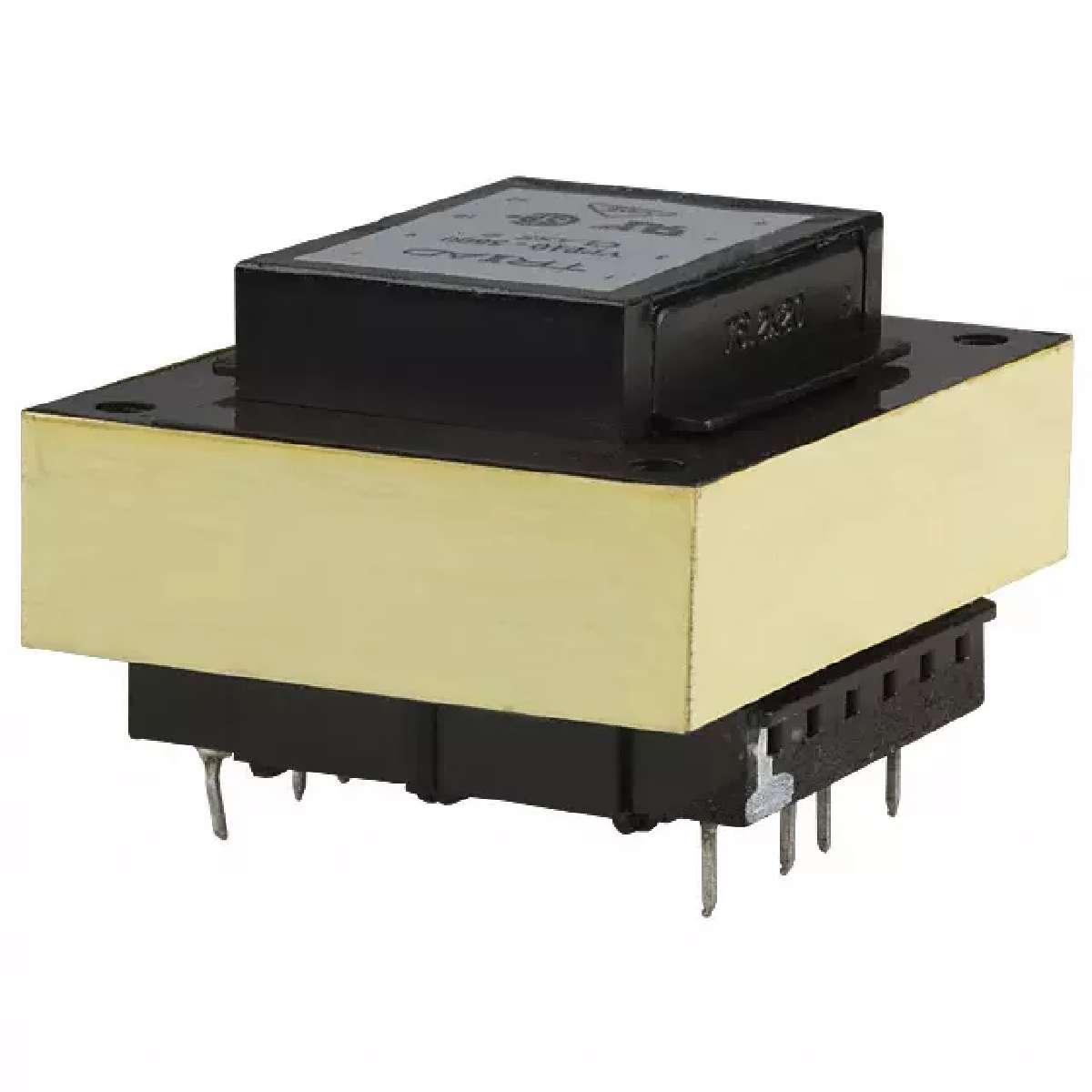

POWER XFMR 10.0Vct@5.60A UL/CSA/VDE PCB MOUNT/
|
||
| 标准包装：8 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 4000Vrms |
|---|---|
| Voltage - Secondary (Full Load) | Parallel 5V, Series 10V |
| Type | Laminated Core |
| Center Tap | No |
| Size / Dimension | 76.20mm L x 63.50mm W |
| Voltage - Primary | 115V, 230V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Dual |
| Family | Power Transformers |
| ECCN | EAR99 |
| Primary Winding(s) | Dual |
| Power - Max | 56 VA |
| Current - Output (Max) | Parallel 11.2A, Series 5.6A |
| Termination Style | PC Pin |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 46.02mm |
| Series | PC Mount: World Series™ |
| Mounting Type | Through Hole |
