| V80213MS02Q | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

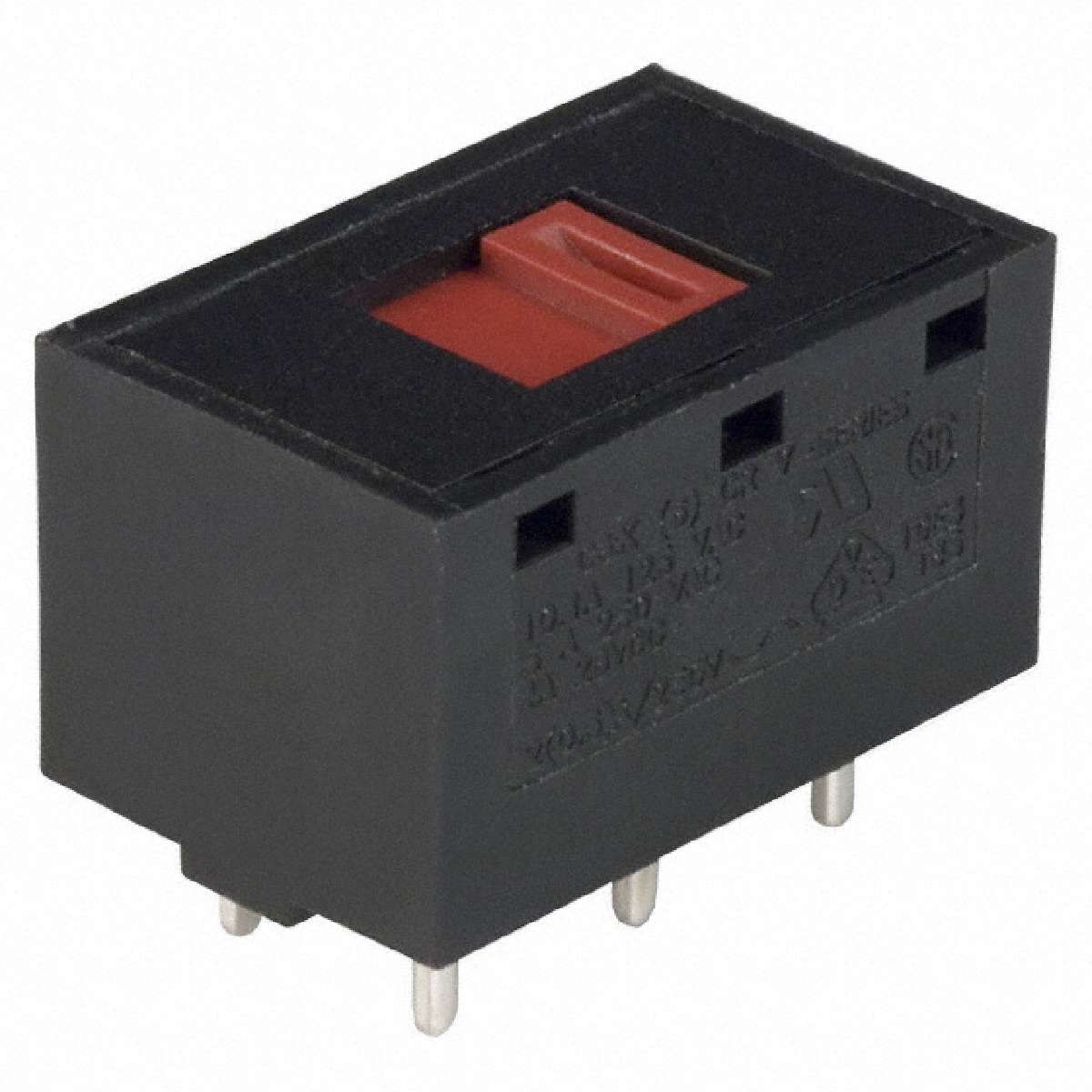

V Series Power and Line Voltage DPDT Through Hole Slide Switch
|
||
| 标准包装：250 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | DPDT |
|---|---|
| Switch Function | On-On |
| Actuator Length | Flush |
| Termination Style | PC Pin |
| Features | No Marking |
| Electrical Life | 10,000 Cycles |
| Category | Switches |
| Series | V |
| Mounting Type | Through Hole |
| Contact Timing | Not Specified |
| Actuator Material | Polyester, Glass Filled |
| ECCN | EAR99 |
| Actuator Type | Screwdriver Slot |
| Contact Finish | Silver |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Part Status | Active |
| Manufacturer | C&K Components |
| Contact Material | Copper |
| Family | Slide Switches |
| Operating Temperature | -30°C ~ 85°C |
| Packaging | Bulk |
| Current Rating | 10A (AC), 4A (DC) |
