| V15T16-CZ100A05-K | ||
|---|---|---|
|
|
||
|
||

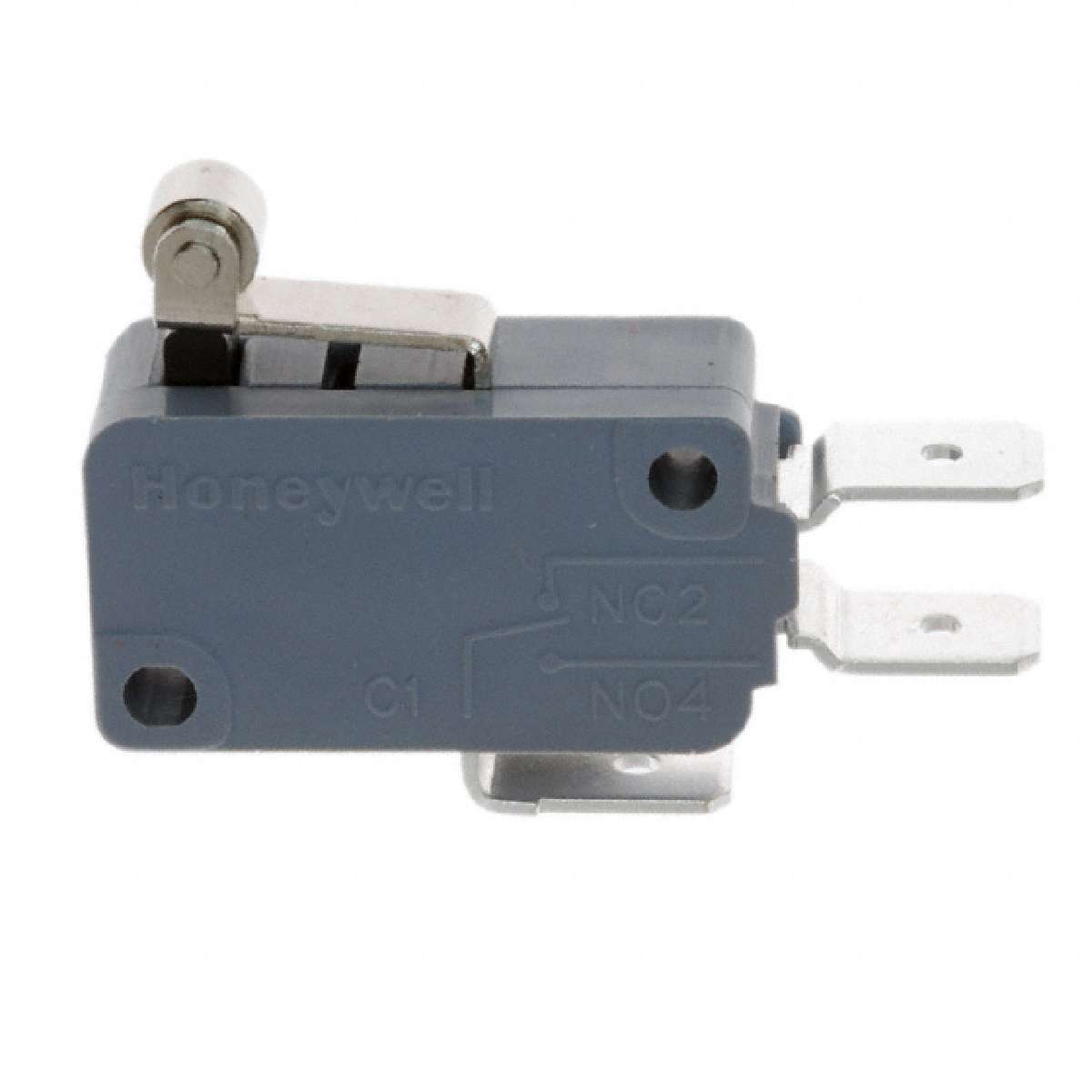

| Product description : Microswitch SNAP ACTION; with lever (with roller); SPDT; Pos: 2 | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Circuit | SPDT |
|---|---|
| Release Force | 20gf |
| Differential Travel | 0.016" (0.4mm) |
| Voltage Rating - AC | 250V |
| Part Status | Active |
| Electrical Life | 50,000 Cycles |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Mechanical Life | 5,000,000 Cycles |
| Family | Snap Action, Limit Switches |
| Overtravel | 0.030" (0.76mm) |
| Packaging | Bulk |
| Actuator Type | Lever, Roller |
| Switch Function | On-Mom |
| Pretravel | 0.063" (1.6mm) |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Operating Force, Torque | 120gf |
| Category | Switches |
| Series | V15 |
| Operating Position | 0.812" (20.6mm) |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 125°C |
| Current Rating | 16A (AC) |
