| UWF1E330MCL1GB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

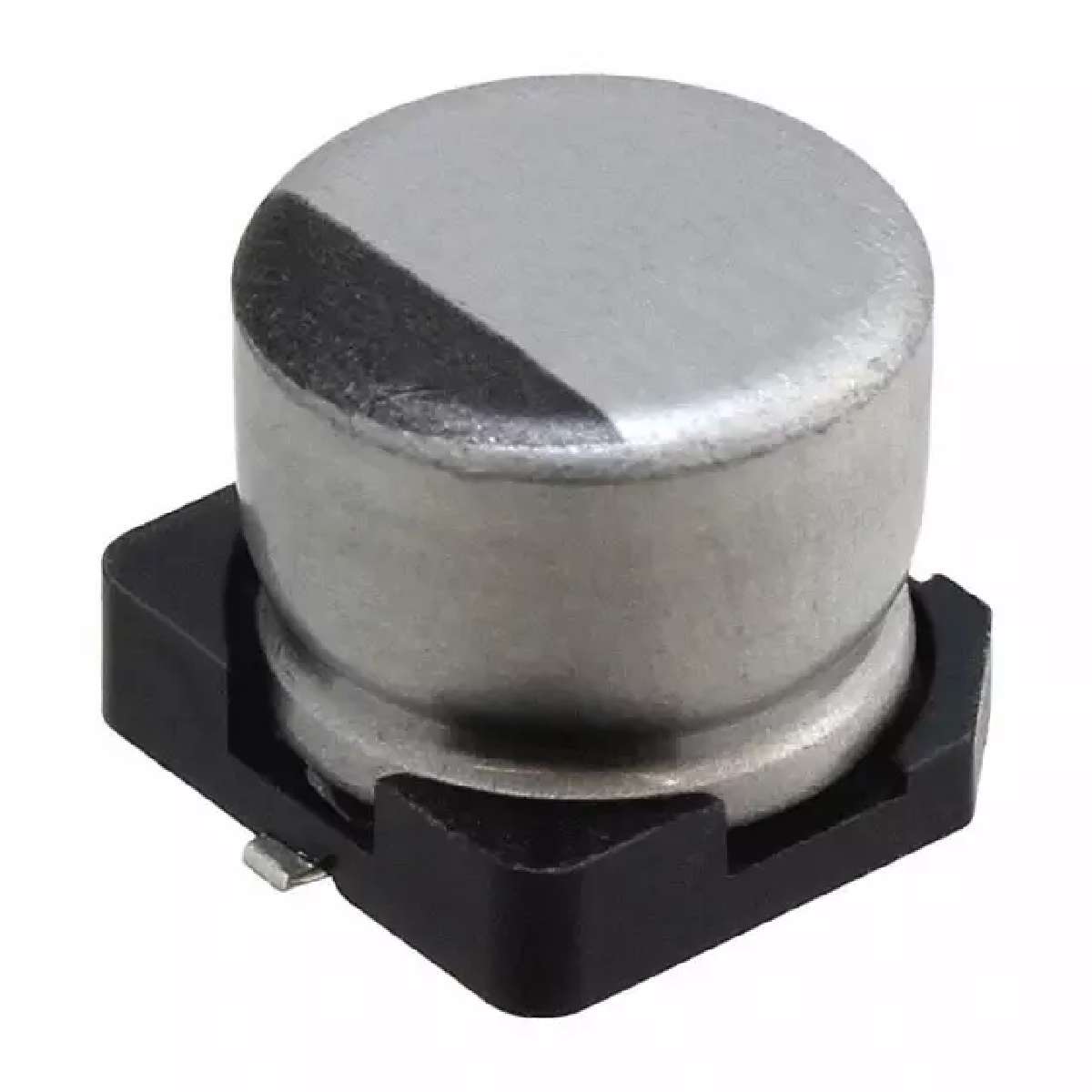

WF Series 33 uF 25 V 105°C Ø6.3 x 5.4mm SMT Chip Aluminum Electrolytic Cap
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 25V |
|---|---|
| Impedance | 1.3 Ohm |
| Capacitance | 33µF |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Series | UWF |
| Applications | General Purpose |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Packaging | Tape & Reel (TR) |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 57.5mA |
| Manufacturer | Nichicon |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
