| UWD1H151MCL1GS | ||
|---|---|---|
|
|
||
|
||

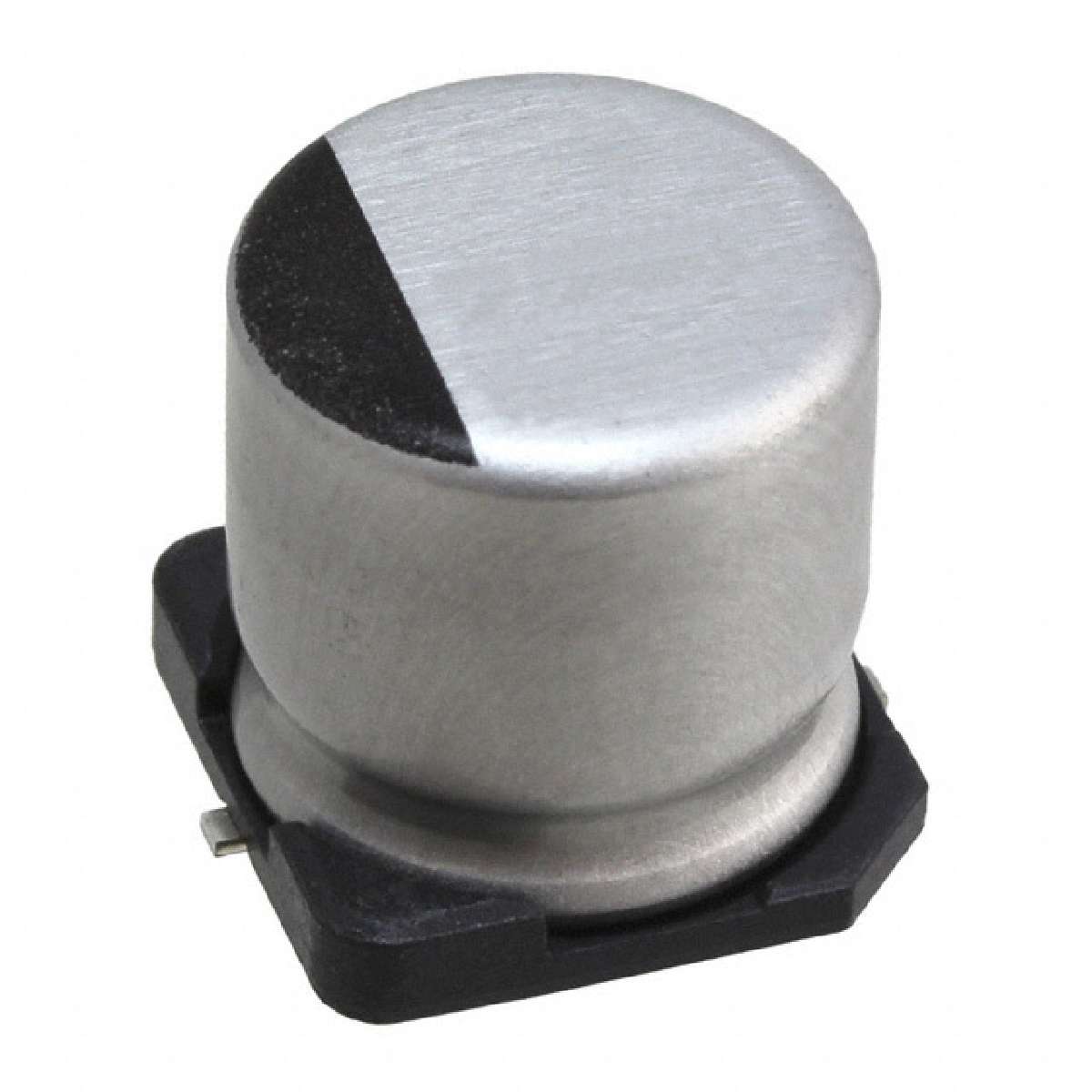

| Product description : WD Series 150 uF 50 V 105°C Ø10 x 10 mm SMT Chip Aluminum Electrolytic Cap | ||
| SPQ：500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 50V |
|---|---|
| Impedance | 180 mOhm |
| Capacitance | 150µF |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Series | UWD |
| Applications | General Purpose |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Packaging | Tape & Reel (TR) |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 335mA |
| Manufacturer | Nichicon |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 2000 | Update On 2025-06-18 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 500/500 | |
| Location | -- | |
| DateCode | 2416 |
