| UWD1E221MCL1GS | ||
|---|---|---|
|
|
||
|
||

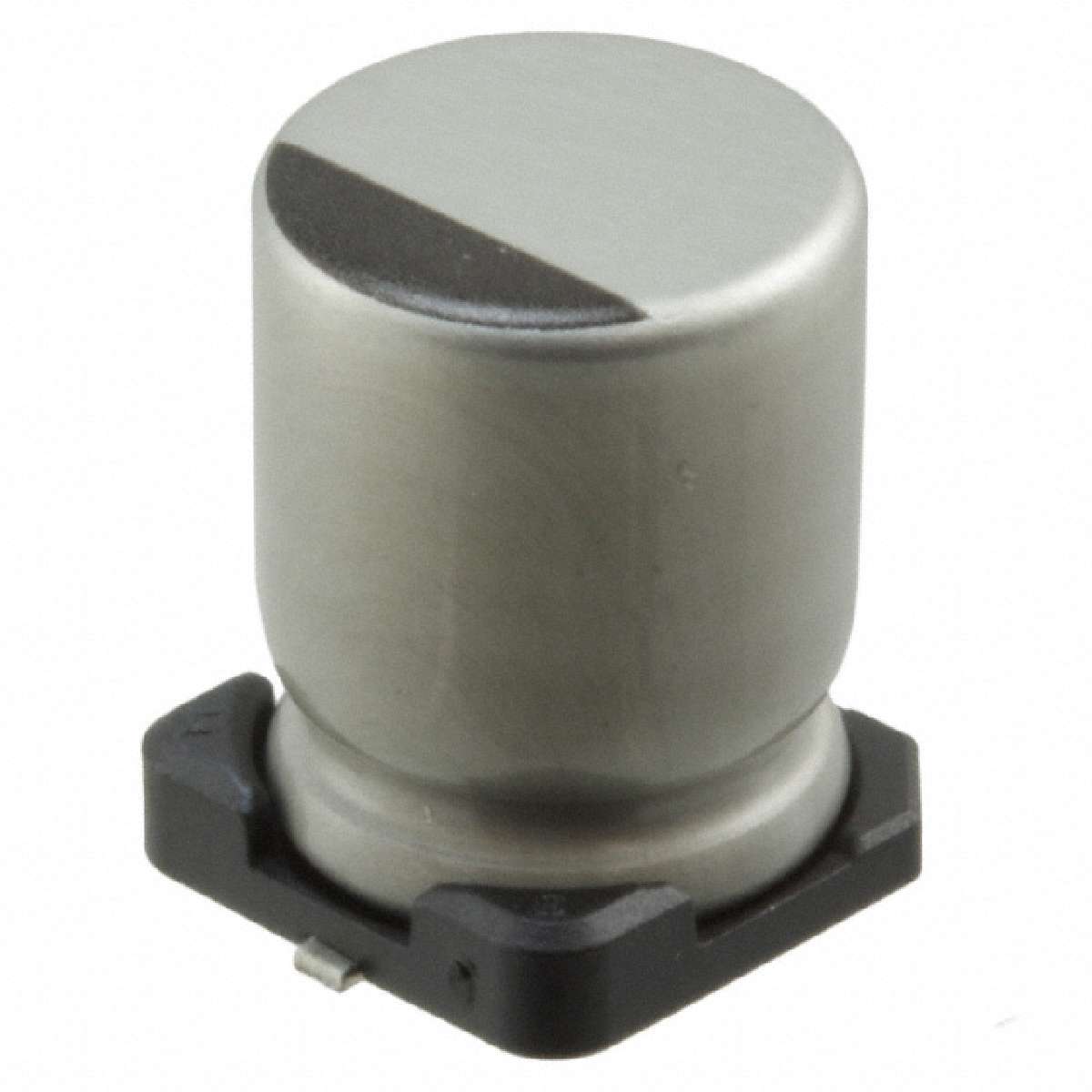

| Product description : WD Series 220 uF 25 V 105°C Ø8 x 10 mm SMT Chip Aluminum Electrolytic Cap | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Impedance | 170 mOhm |
|---|---|
| Voltage Rating | 25V |
| Capacitance | 220µF |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Series | UWD |
| Applications | General Purpose |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 225mA |
| Manufacturer | Nichicon |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
