| UVR1J332MRD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

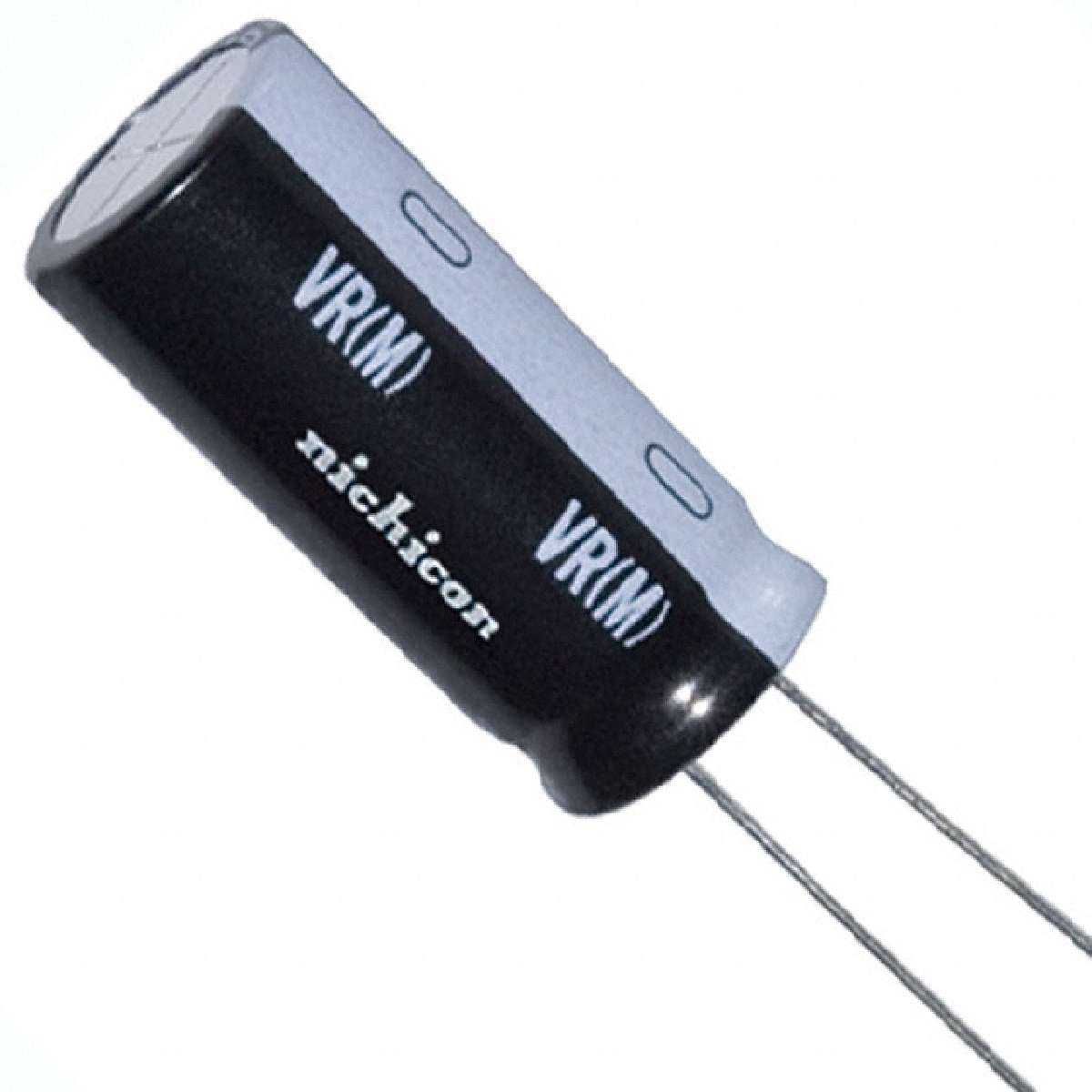

VR Series 3300 uF 63 V85°C Ø20x40mm LS=10mm Radial Aluminum Electroltyic Cap
|
||
| 标准包装：50 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 3300µF |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
| Voltage Rating | 63V |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Ripple Current | 2.7A |
| Manufacturer | Nichicon |
| Series | UVR |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Packaging | Bulk |
