| UV3TZ-390-15 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

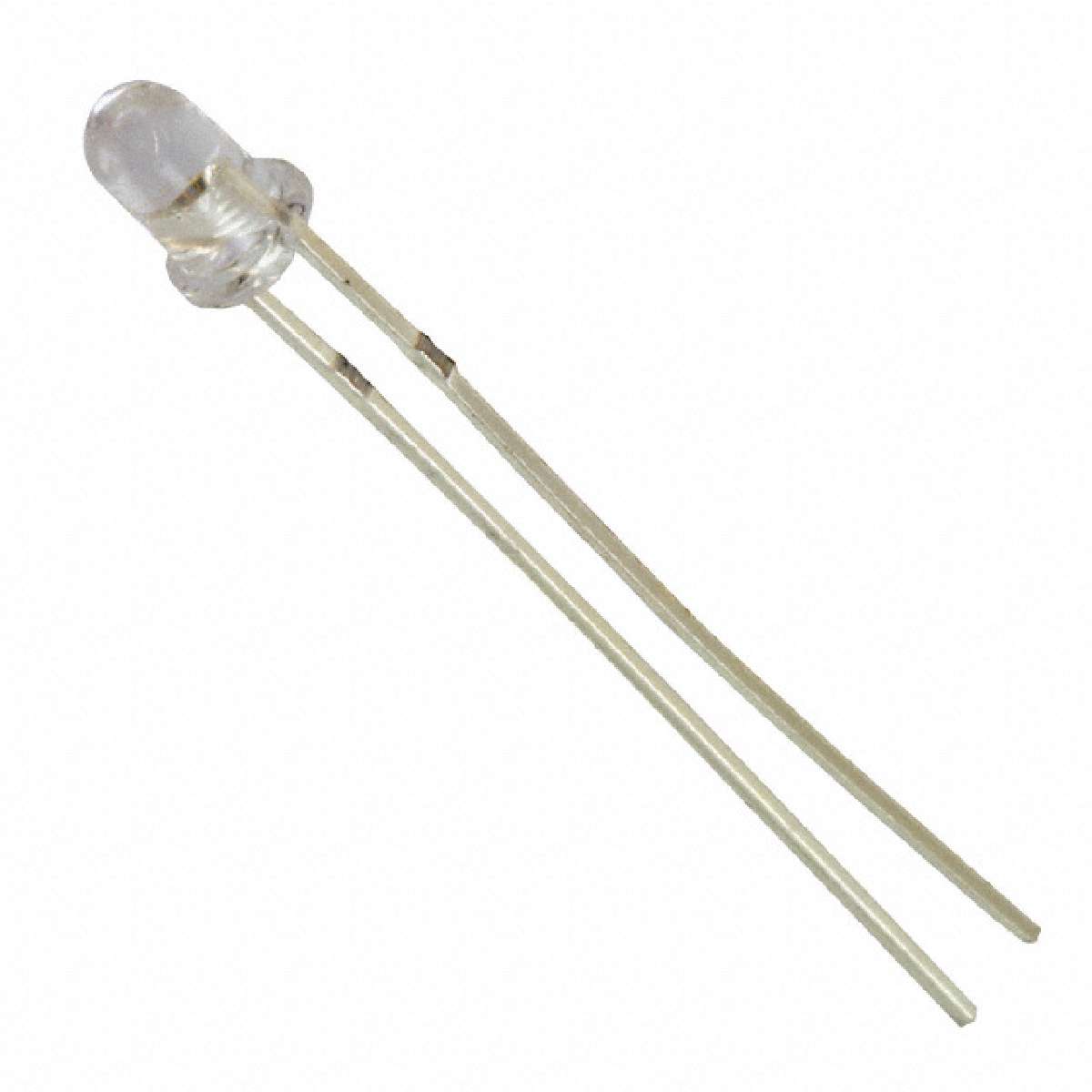

TZ Series Purple 15° Clear 390 nm 3.4 V Through Hole Ultraviolet LED Lamp - T-1
|
||
| 标准包装：500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Orientation | Top View |
|---|---|
| Viewing Angle | 15° |
| Part Status | Active |
| Manufacturer | Bivar Inc. |
| Series | TZ |
| Family | Infrared, UV, Visible Emitters |
| Wavelength | 390nm |
| Packaging | Bulk |
| Package / Case | Radial |
| Type | Ultraviolet (UV) |
| Category | Optoelectronics |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Current - DC Forward (If) (Max) | 30mA |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 80°C (TA) |
| ECCN | EAR99 |
| 数据手册： |
|---|
登录之后就可发表评论
库存信息3到货提醒
供应商编码:SP1034
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$1.96755
￥16.341778546502972
查看价格阶梯
| 2+ | $1.96755 |
|---|---|
| 10+ | $1.90847 |
| 50+ | $1.85287 |
| 200+ | $1.79866 |
| 500+ | $1.74514 |
| 库存数量 | 172 | 库存更新于 2025-05-21 |
|---|---|---|
| 订货周期 | -- | |
| Supplier SPQ/MOQ | 1/2 | |
| 库存地 | -- | |
| 生产批次 | -- |
