| UUL1C220MCL1GS | ||
|---|---|---|
|
|
||
|
||

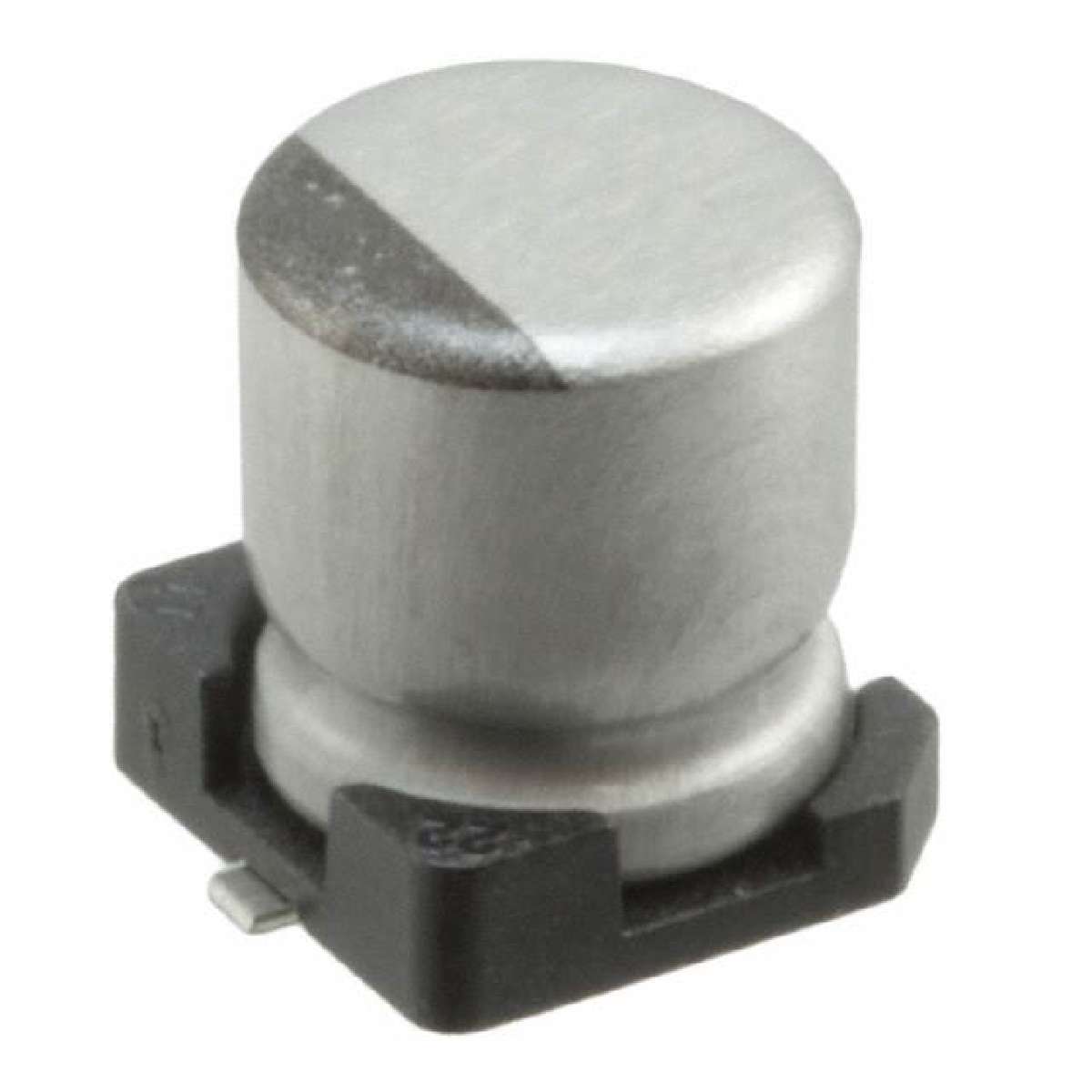

| Product description : UL Series 22 uF 16 V 105°C Ø5 x 5.8mm SMT Chip Aluminum Electrolytic Cap | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Tolerance | ±20% |
|---|---|
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Ripple Current | 30mA |
| Manufacturer | Nichicon |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
| Voltage Rating | 16V |
| Capacitance | 22µF |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Series | UUL |
| Applications | General Purpose |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Packaging | Digi-Reel® |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 4000 | Update On 2025-05-27 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1000/1000 | |
| Location | -- | |
| DateCode | 2428 |
