| UUD1A330MCL1GS | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

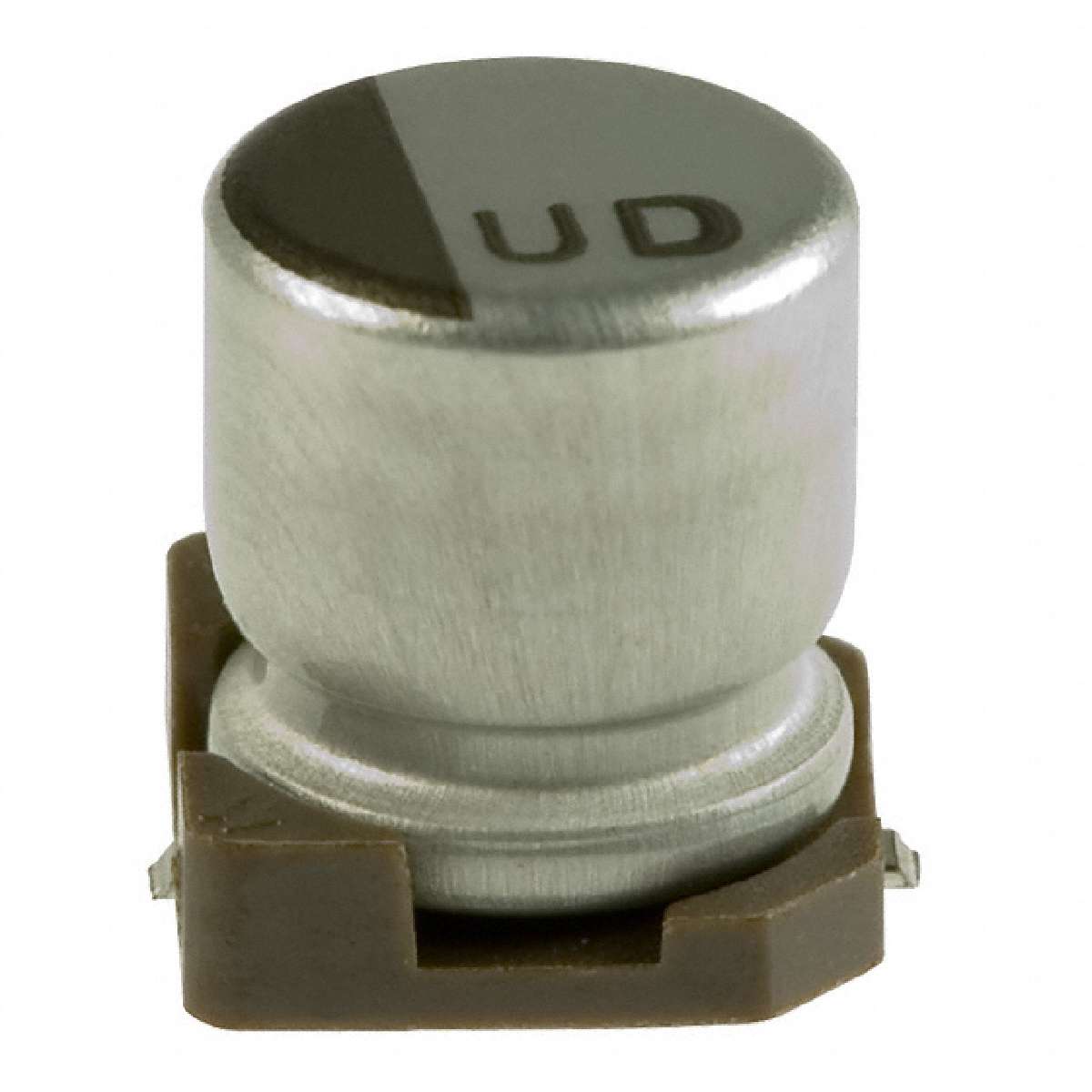

UD Series 33 uF 10 V 105°C Ø5 x 5.8mm SMT Chip Aluminum Electrolytic Cap
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Impedance | 760 mOhm |
|---|---|
| Voltage Rating | 10V |
| Capacitance | 33µF |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Ripple Current | 150mA |
| Manufacturer | Nichicon |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Series | UUD |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Cut Tape (CT) |
