| UUA1C330MCL1GS | ||
|---|---|---|
|
|
||
|
||

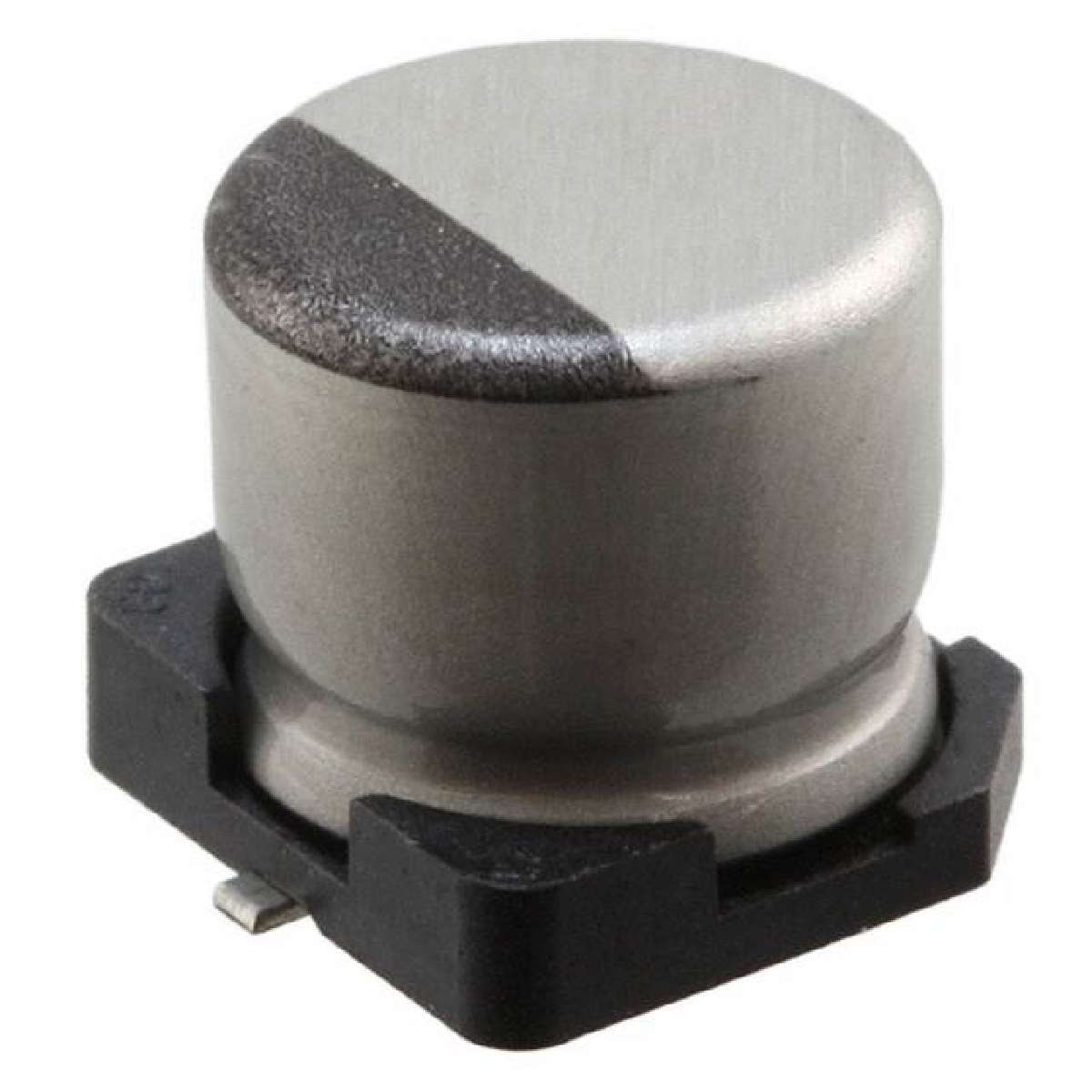

| Product description : CAP ALUM 33UF 20% 16V SMD | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 16V |
|---|---|
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 48mA |
| Manufacturer | Nichicon |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| Tolerance | ±20% |
| Capacitance | 33µF |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Series | UUA |
| Applications | General Purpose |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Packaging | Digi-Reel® |
