NSS40501UW3T2G specifications -Ameya360 electronic components purchase network


NSS40501UW3T2G

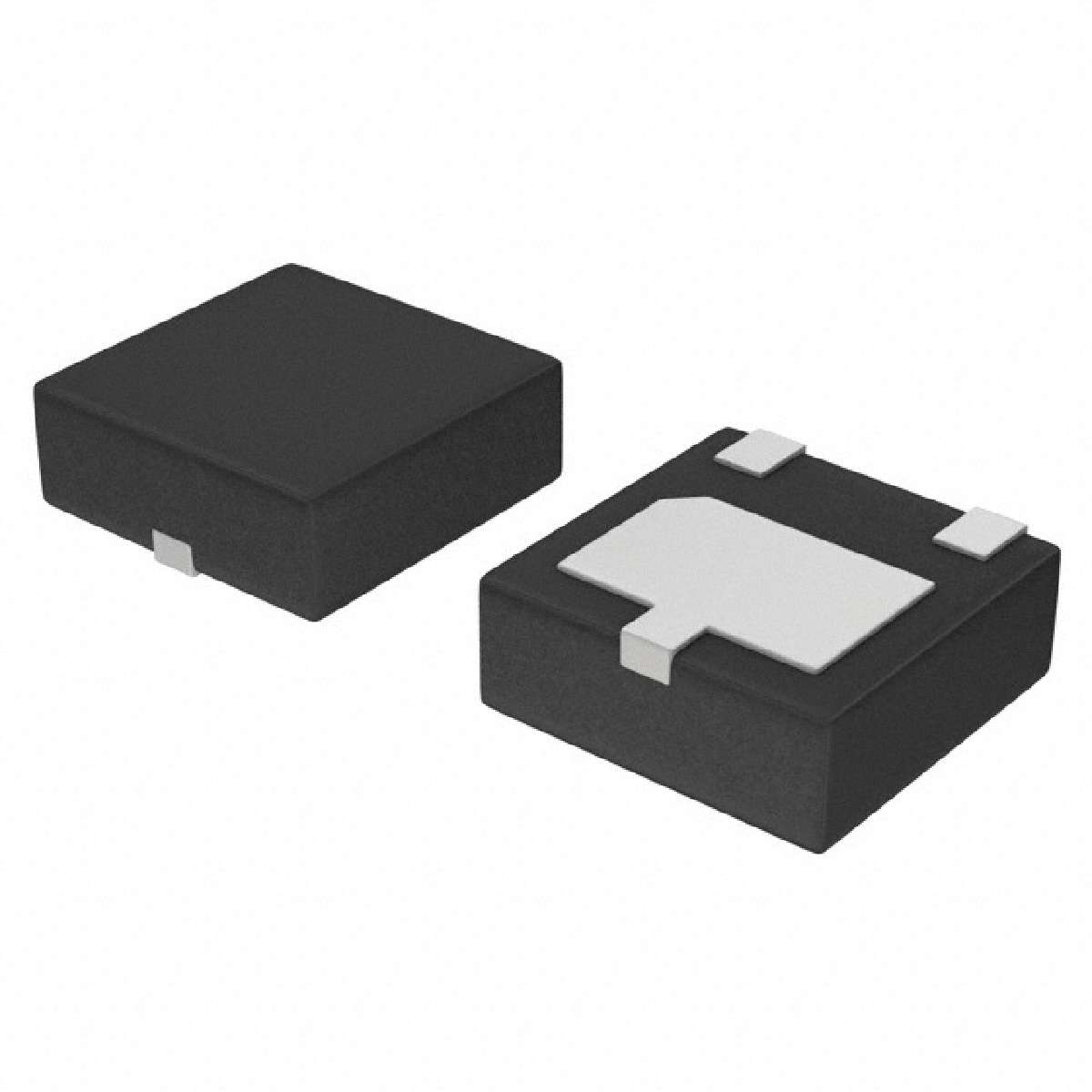

ACTIVE 3-WDFN (2x2) EAR99
Product description : NSS Series 40 V 5 A Surface Mount Low Vce NPN Transistor - DFN-3W
SPQ：3000
Datasheet : NSS40501UW3T2G.pdf

Power - Max	875mW
Frequency - Transition	150MHz
Transistor Type	NPN
Current - Collector (Ic) (Max)	5A
Category	Discrete Semiconductor Products
Voltage - Collector Emitter Breakdown (Max)	40V
Mounting Type	Surface Mount
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 2A, 2V
ECCN	EAR99
Package / Case	3-WDFN Exposed Pad
Vce Saturation (Max) @ Ib, Ic	150mV @ 400mA, 4A
Supplier Device Package	3-WDFN (2x2)
Part Status	Active
Manufacturer	ON Semiconductor
Family	Transistors - Bipolar (BJT) - Single
Current - Collector Cutoff (Max)	100nA (ICBO)
Packaging	Tape & Reel (TR)

Datasheet： NSS40501UW3T2G.pdf
