| USR1V330MDD | ||
|---|---|---|
|
|
||
|
||

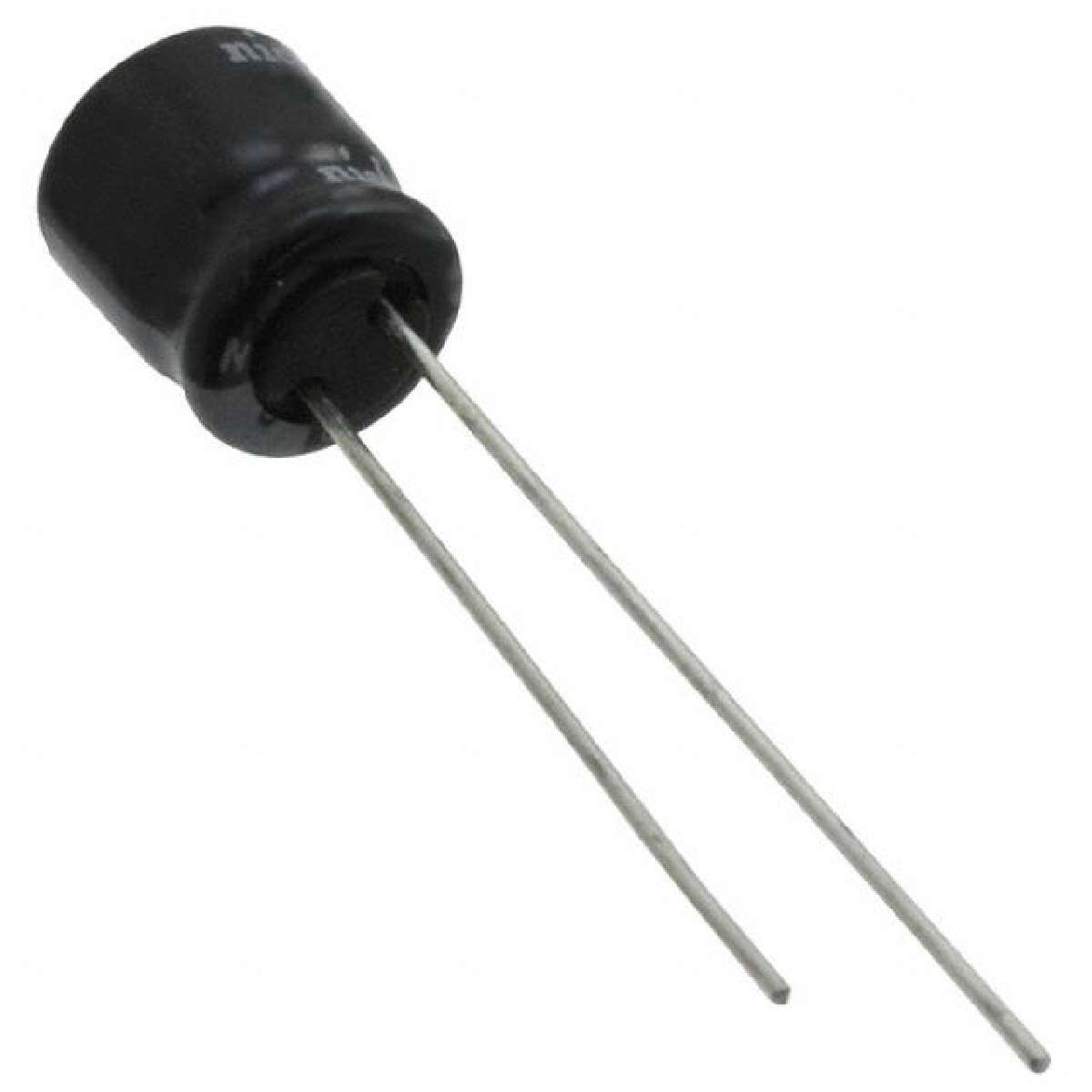

| Product description : SR Series 33 uF 35 V 85°C Ø8 x 7 mm LS=3.5 mm Radial Aluminum Electrolytic Cap | ||
| SPQ：200 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Tolerance | ±20% |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 33µF |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 65mA @ 120Hz |
| Manufacturer | Nichicon |
| Series | USR |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Packaging | Bulk |
| Voltage Rating | 35V |
| Lead Spacing | 0.098" (2.50mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
