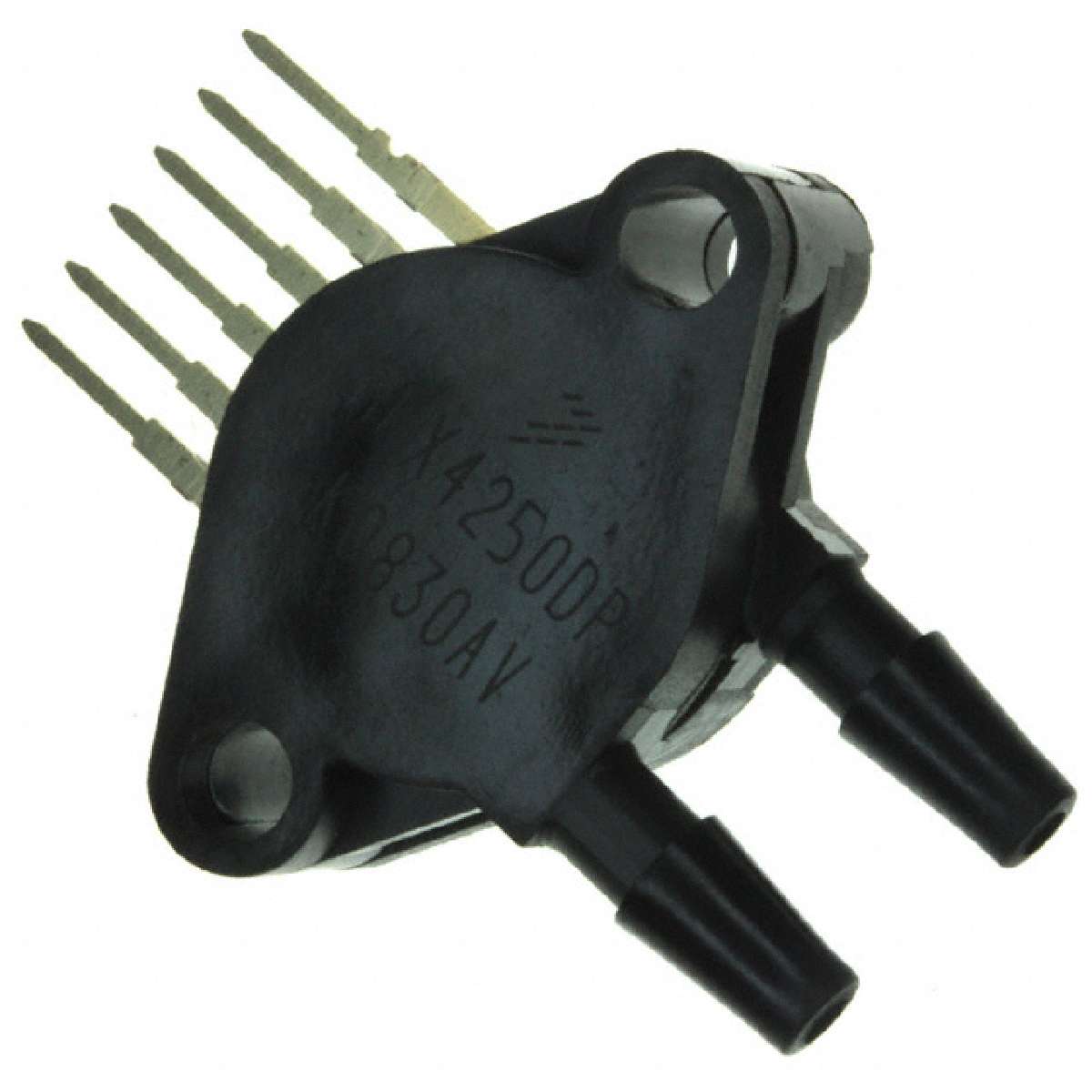

| MPX4250DP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Sensor: pressure; Range: 0÷250kPa; differential
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Pressure: | 36 psi |
|---|---|
| Packaging: | Tray |
| Operating Supply Voltage: | 5 V |
| Minimum Operating Temperature: | - 40 C |
| Factory Pack Quantity: | 100 |
| Brand: | NXP / Freescale |
| Accuracy: | 1.4 % |
| Package / Case: | Unibody 6-pin |
| Operating Supply Current: | 7 mA |
| Supply Voltage - Max: | 5.35 V |
| Mounting Style: | Through Hole |
| ECCN | ECL99 |
| Manufacturer: | NXP |
| Output Voltage: | 4.9 V |
| Series: | MPX4250 |
| Port Size: | 4.93 mm |
| Port Type: | Dual Radial Barbed |
| Supply Voltage - Min: | 4.85 V |
| RoHS: | Details |
| Product Category: | Board Mount Pressure Sensors |
| Pressure Type: | Differential |
| Unit Weight: | 0.184887 oz |
| Maximum Operating Temperature: | + 125 C |
