| USA1V100MDD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

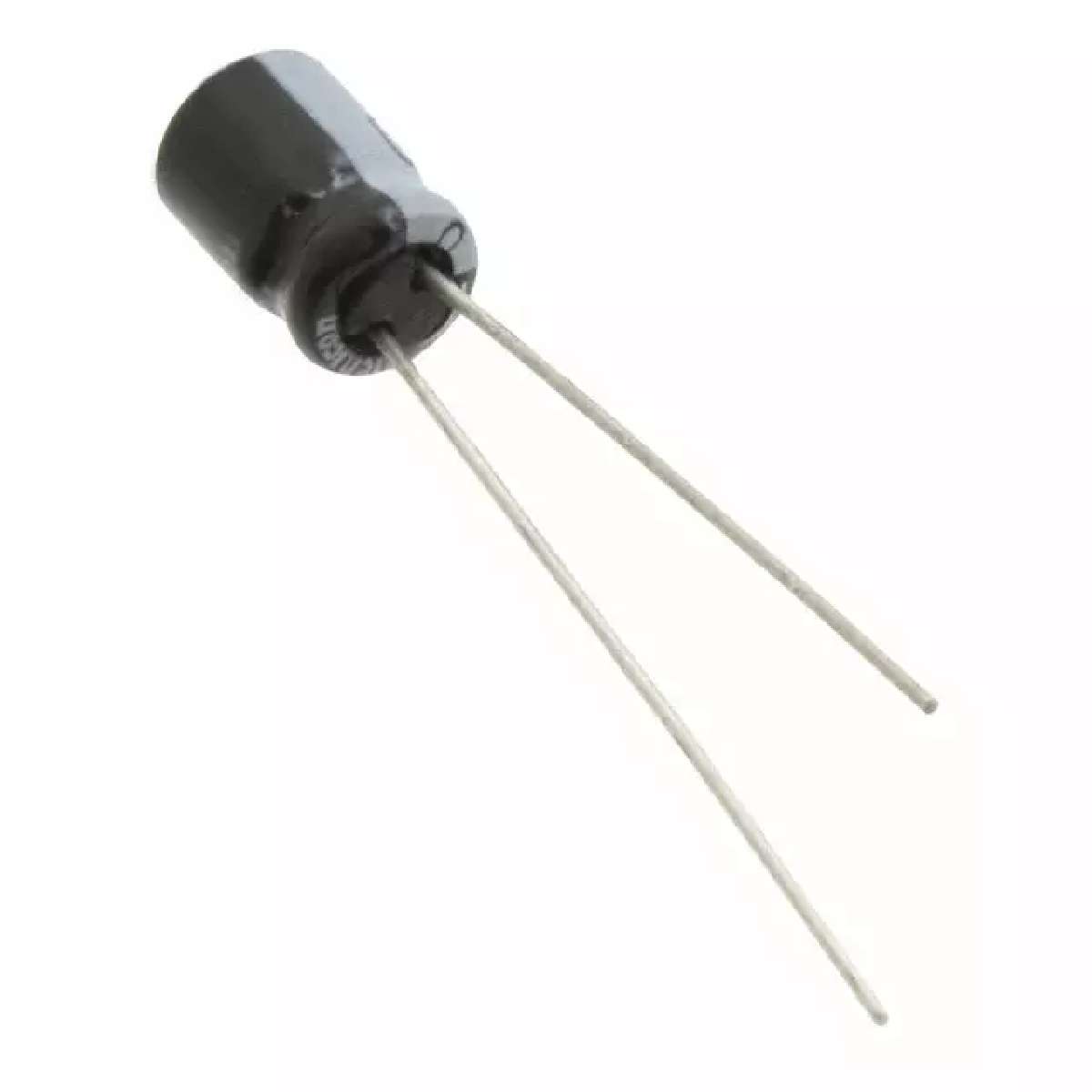

SA Series 10 uF 35 V 85°C Ø5 x 7 mm LS=2 mm Radial Aluminum Electrolytic Cap
|
||
| 标准包装：4000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 10µF |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Ripple Current | 36mA @ 120Hz |
| Manufacturer | Nichicon |
| Series | USA |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Packaging | Bulk |
| Voltage Rating | 35V |
| Lead Spacing | 0.079" (2.00mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.06952
￥0.57741
See more prices
| 400+ | $0.06952 |
|---|---|
| 600+ | $0.06347 |
| 1200+ | $0.05907 |
| 1800+ | $0.05577 |
| stock | Out of stock |
|---|---|
| Lead-Time | 28Weeks |
| Supplier SPQ/MOQ | 4000/400 |
| Location | -- |
| DateCode | 2102 |
