| UPW2A470MPD6 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

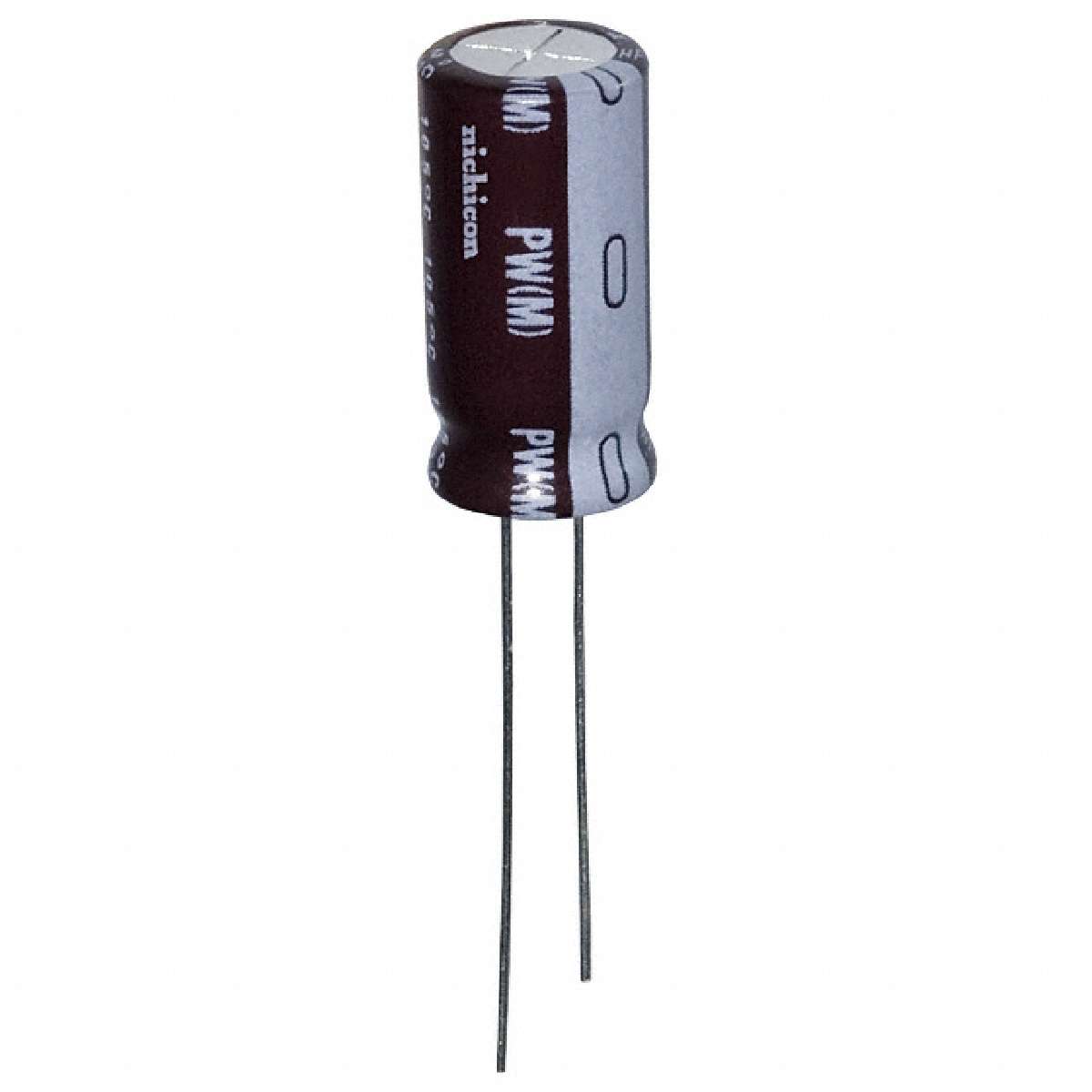

PW Series 47 uF 100 V 105°C Ø8 x 20 mm LS=3.5mm Radial Aluminum Electrolytic Cap
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Impedance | 370 mOhm |
|---|---|
| Voltage Rating | 100V |
| Lead Spacing | 0.138" (3.50mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 47µF |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 126mA @ 120Hz |
| Manufacturer | Nichicon |
| Series | UPW |
| Applications | General Purpose |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Packaging | Bulk |
