| UPW1V221MPD6TD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

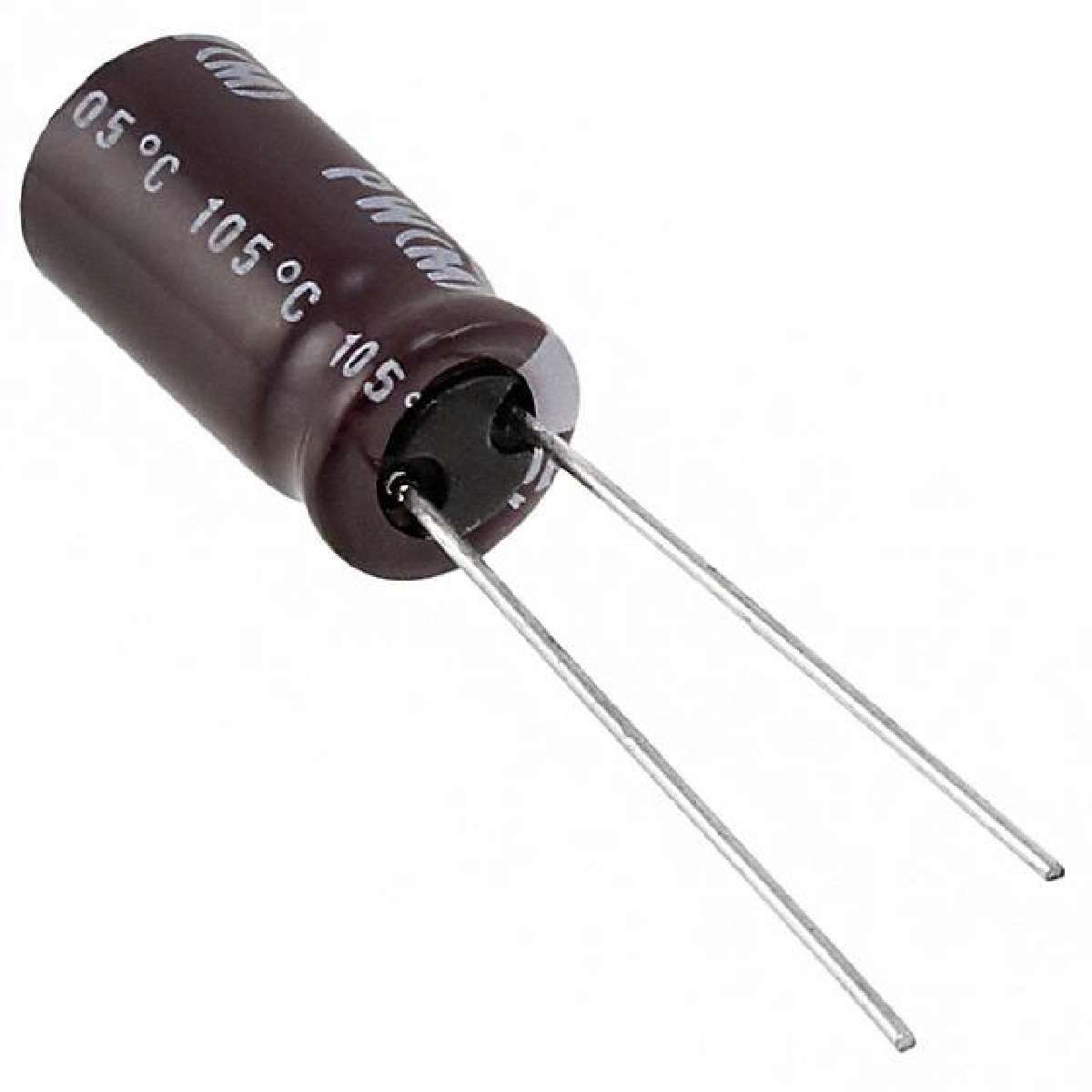

PW Series 220 uF 35 V 105°C Ø8x15mm LS=3.5mm Radial Aluminum Electrolytic Cap
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Impedance | 85 mOhm |
|---|---|
| Voltage Rating | 35V |
| Lead Spacing | 0.138" (3.50mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 220µF |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 475mA @ 120Hz |
| Manufacturer | Nichicon |
| Series | UPW |
| Applications | General Purpose |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Packaging | Cut Tape (CT) |
登录之后就可发表评论
Availability3Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 88000 | Update On 2025-06-24 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.31419
￥2.6095507467672308
| 158+ | $0.31419 |
|---|---|
| 1000+ | $0.31217 |
| stock | 1663 | Update On 2022-12-02 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/158 | |
| Location | -- | |
| DateCode | -- |
