| UPW1C102MPD1TD | ||
|---|---|---|
|
|
||
|
||

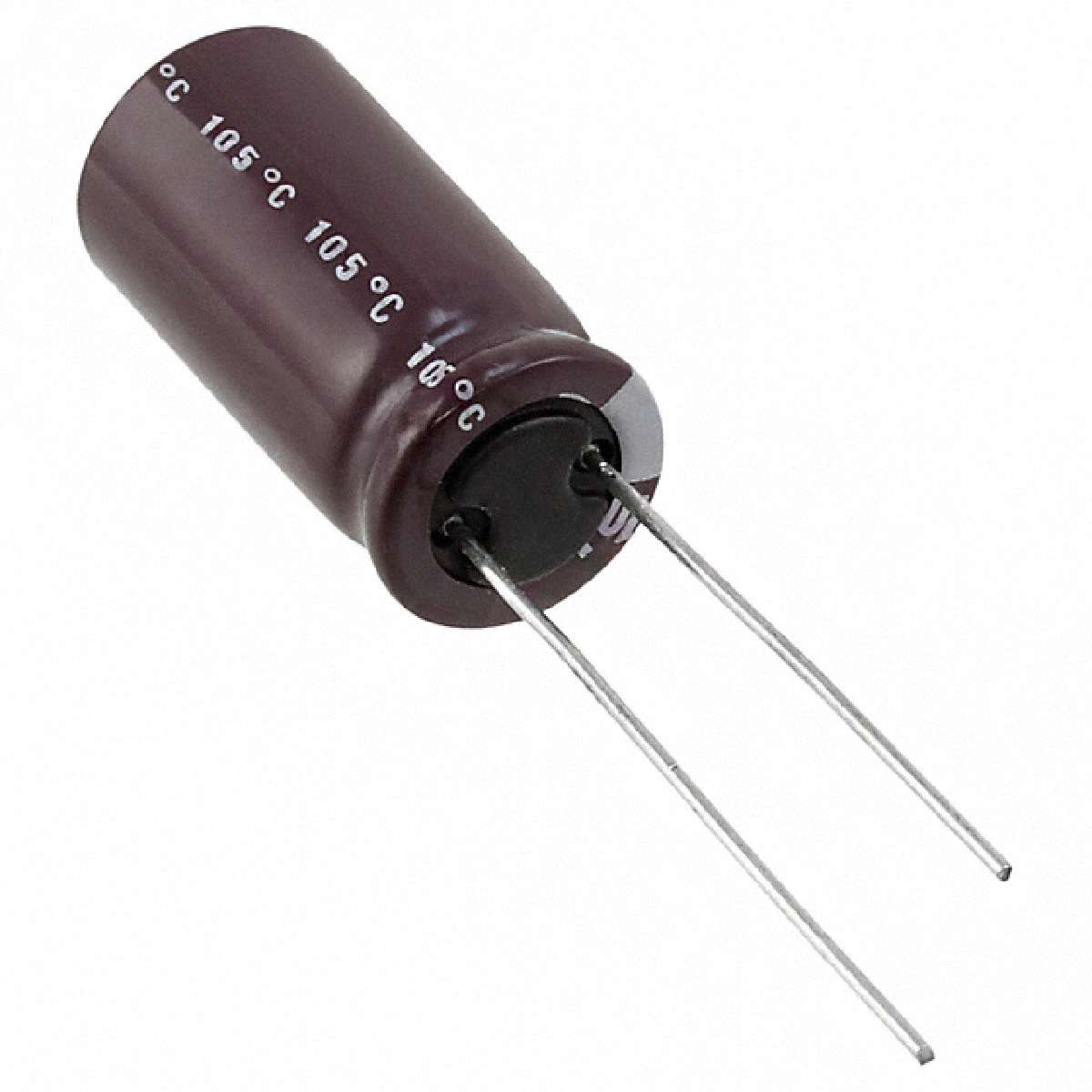

| Product description : PW Series 1000 uF 16 V 105°C Ø10 x 20mm LS=5mm Radial Aluminum Electrolytic Cap | ||
| SPQ：500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Impedance | 52 mOhm |
|---|---|
| Voltage Rating | 16V |
| Lead Spacing | 0.197" (5.00mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 1000µF |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 915mA @ 120Hz |
| Manufacturer | Nichicon |
| Series | UPW |
| Applications | General Purpose |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Packaging | Tape & Box (TB) |
You can comment after logging in.
Availability3Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 4000 | Update On 2025-06-24 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 500/500 | |
| Location | -- | |
| DateCode | 2451 |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.41492
￥3.44618
See more prices
| 217+ | $0.41492 |
|---|---|
| 250+ | $0.39831 |
| 500+ | $0.3839 |
| 1000+ | $0.37136 |
| stock | Out of stock |
|---|---|
| Lead-Time | -- |
| Supplier SPQ/MOQ | 500/217 |
| Location | -- |
| DateCode | -- |
