| UHM0J182MPD6 | ||
|---|---|---|
|
|
||
|
||

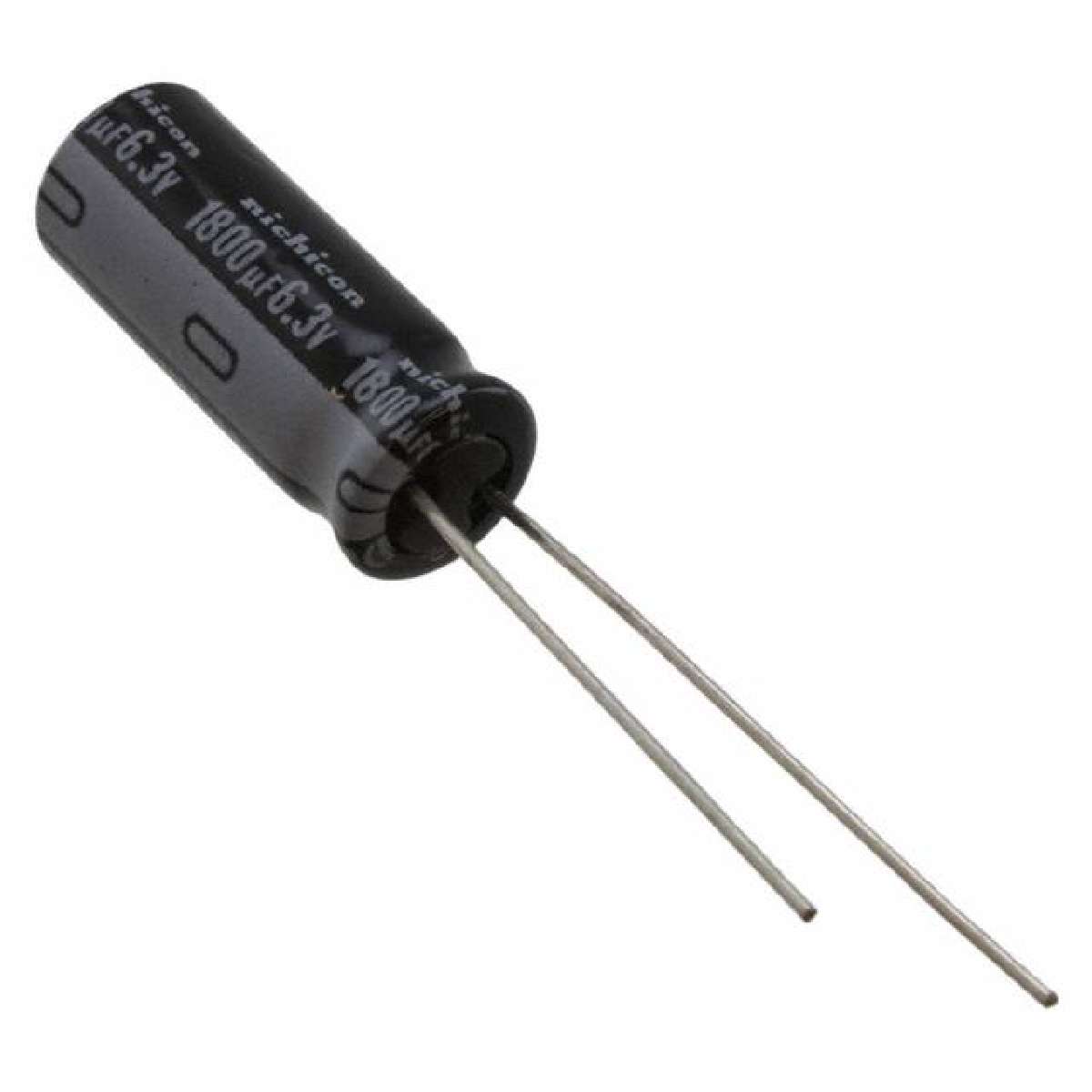

| Product description : HM Series 1800uF 6.3V 105°C Ø8 x 20 mm LS=3.5mm Radial Aluminum Electrolytic Cap | ||
| SPQ：200 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Impedance | 16 mOhm |
|---|---|
| Voltage Rating | 6.3V |
| Lead Spacing | 0.138" (3.50mm) |
| Polarization | Polar |
| Part Status | Obsolete |
| Category | Capacitors |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 1800µF |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 1.95A @ 100kHz |
| Manufacturer | Nichicon |
| Series | UHM |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Bulk |
