| UHE2A470MPD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

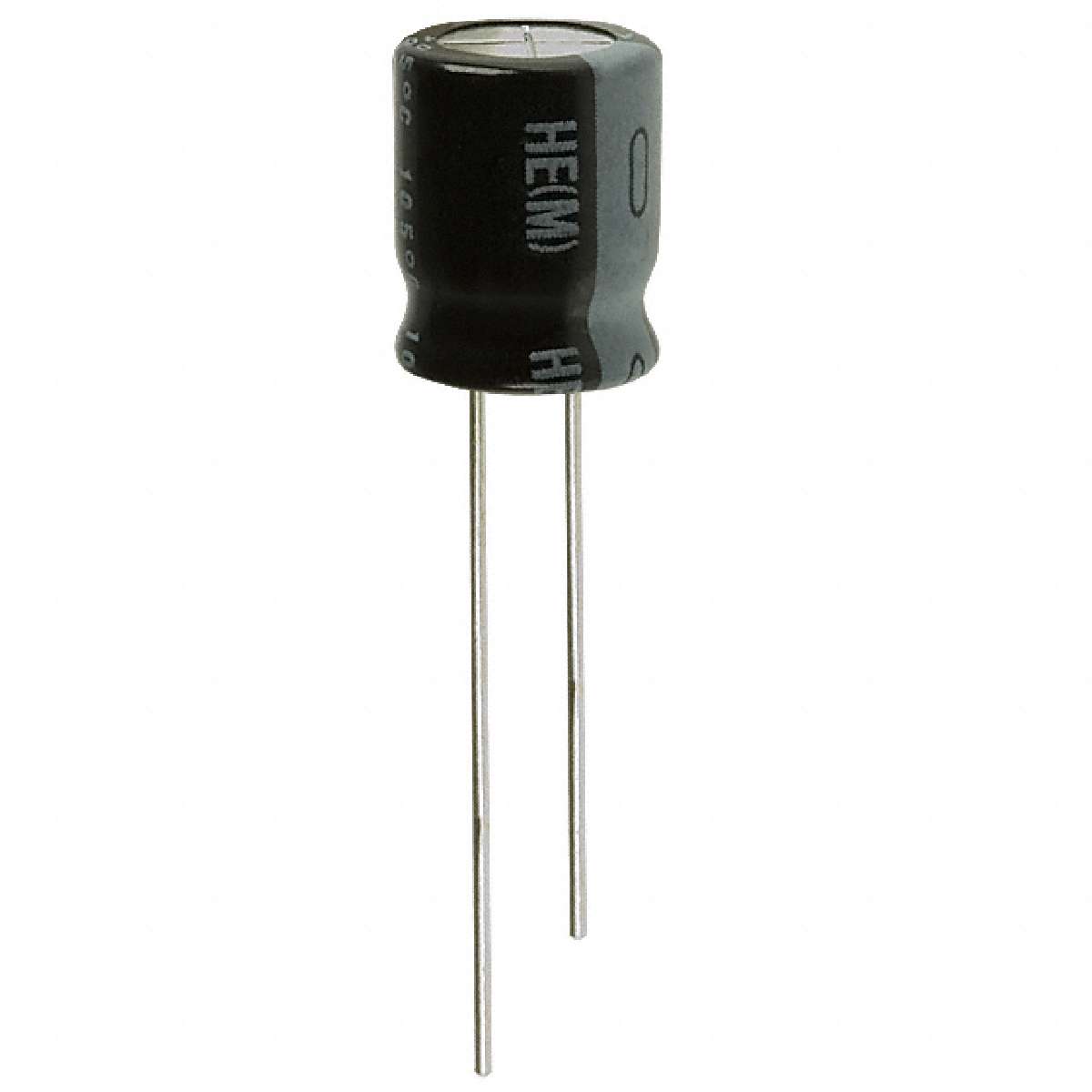

HE Series 47 uF 100 V 105°C Ø10 x 12.5mm LS=5mm Radial Aluminum Electrolytic Cap
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Impedance | 430 mOhm |
|---|---|
| Voltage Rating | 100V |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 227.5mA @ 120Hz |
| Manufacturer | Nichicon |
| Series | UHE |
| Applications | General Purpose |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Packaging | Bulk |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 47µF |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
登录之后就可发表评论
库存信息4到货提醒
供应商编码:SP1034
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$0.46954
￥3.8998304297661015
查看价格阶梯
| 5+ | $0.46954 |
|---|---|
| 500+ | $0.45064 |
| 2500+ | $0.43201 |
| 5000+ | $0.42256 |
| 库存数量 | 800 | 库存更新于 2025-06-04 |
|---|---|---|
| 订货周期 | -- | |
| Supplier SPQ/MOQ | 1/5 | |
| 库存地 | -- | |
| 生产批次 | -- |
供应商编码:SP1027
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$0.79283
￥6.5849696436981899
查看价格阶梯
| 1+ | $0.79283 |
|---|---|
| 10+ | $0.40486 |
| 100+ | $0.26428 |
| 2000+ | $0.19546 |
| 库存数量 | 290 | 库存更新于 2025-02-11 |
|---|---|---|
| 订货周期 | 22Weeks | |
| Supplier SPQ/MOQ | 200/1 | |
| 库存地 | -- | |
| 生产批次 | 2428 |
