| UCS2C221MHD1TN | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

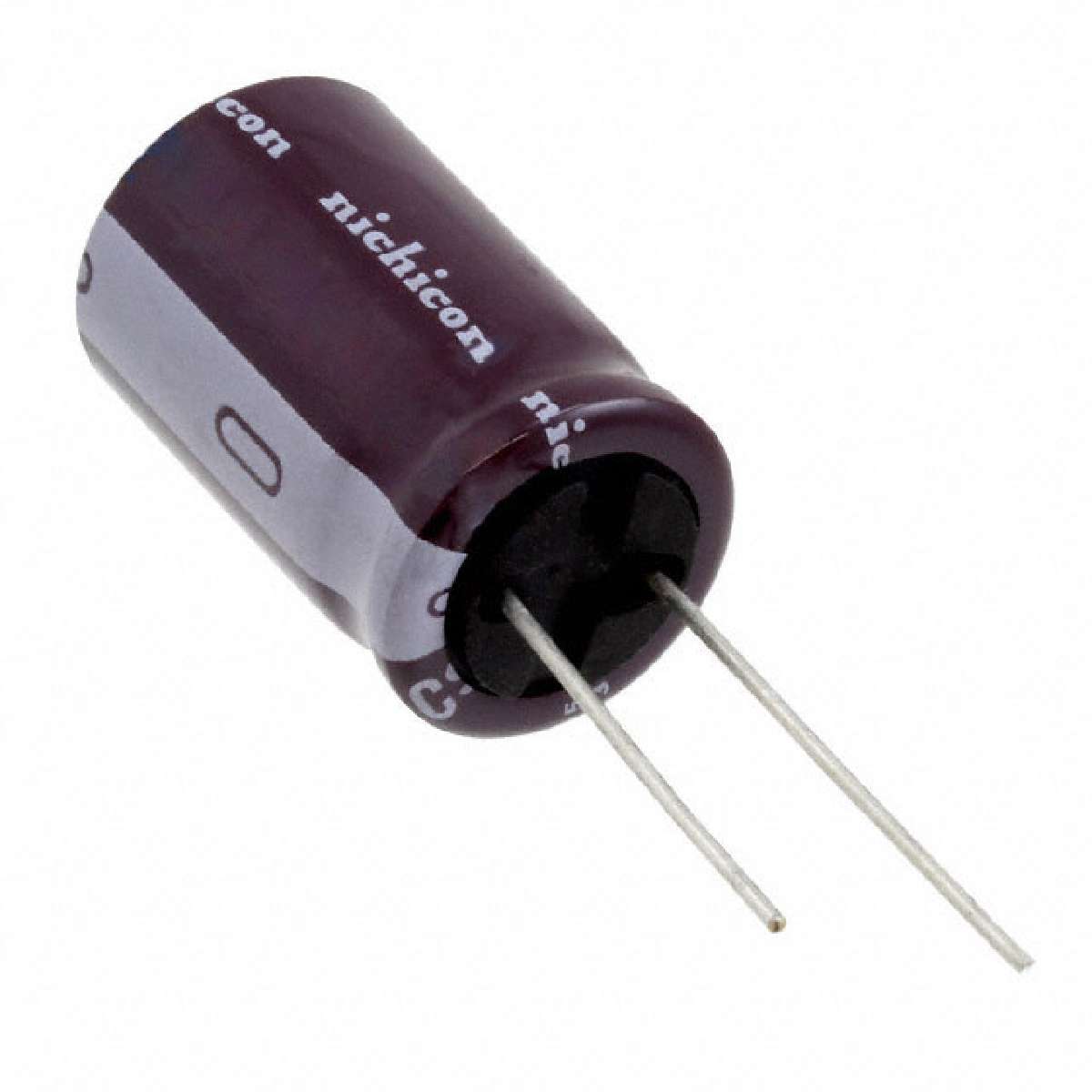

Cap Aluminum Lytic 220uF 160V 20% (16 X 25mm) Radial 7.5mm 2370mA 10000h 105C
|
||
| 标准包装：250 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 220µF |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Ripple Current | 1.185A @ 120Hz |
| Manufacturer | Nichicon |
| Series | UCS |
| Applications | General Purpose |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Packaging | Tape & Box (TB) |
| Voltage Rating | 160V |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | ECL99 |
