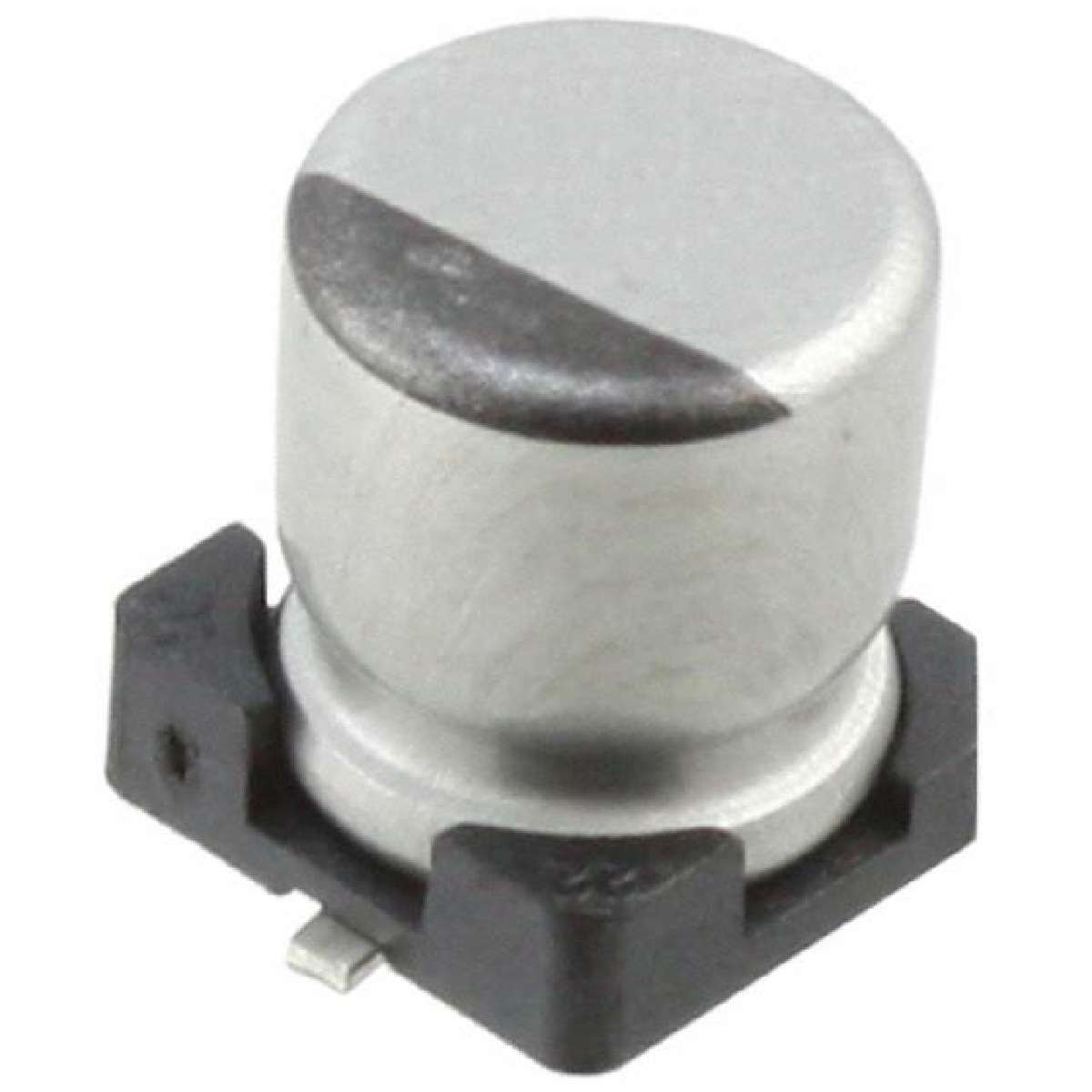

| UCL1E220MCL1GS | ||
|---|---|---|
|
|
||
|
||
| Product description : CAP ALUM 22UF 20% 25V SMD | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Impedance | 360 mOhm |
|---|---|
| Voltage Rating | 25V |
| Capacitance | 22µF |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Ripple Current | 120mA @ 120Hz |
| Manufacturer | Nichicon |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | ECL99 |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Series | UCL |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Cut Tape (CT) |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.8184
￥6.79734
| 209+ | $0.8184 |
|---|---|
| 500+ | $0.3751 |
| stock | 950 | Update On 2025-06-10 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1000/205 | |
| Location | -- | |
| DateCode | -- |
