| UCL1C221MCL6GS | ||
|---|---|---|
|
|
||
|
||

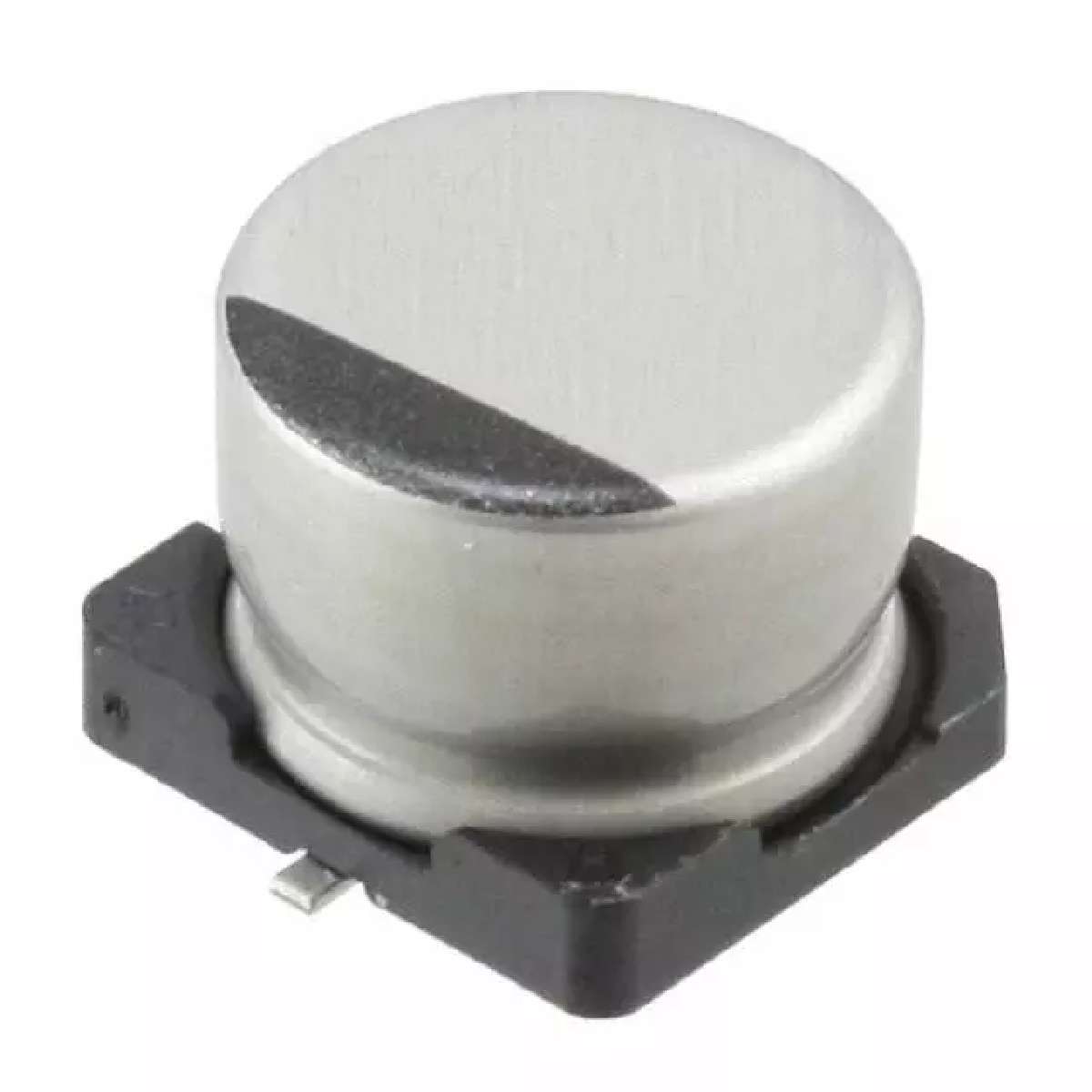

| Product description : CL Series 16 V 220 uF ±20% Surface Mount Aluminum Electrolytic Capacitor | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 16V |
|---|---|
| Impedance | 180 mOhm |
| Capacitance | 220µF |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 250mA @ 120Hz |
| Manufacturer | Nichicon |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Series | UCL |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Cut Tape (CT) |
