| UCA2E220MHD1TO | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

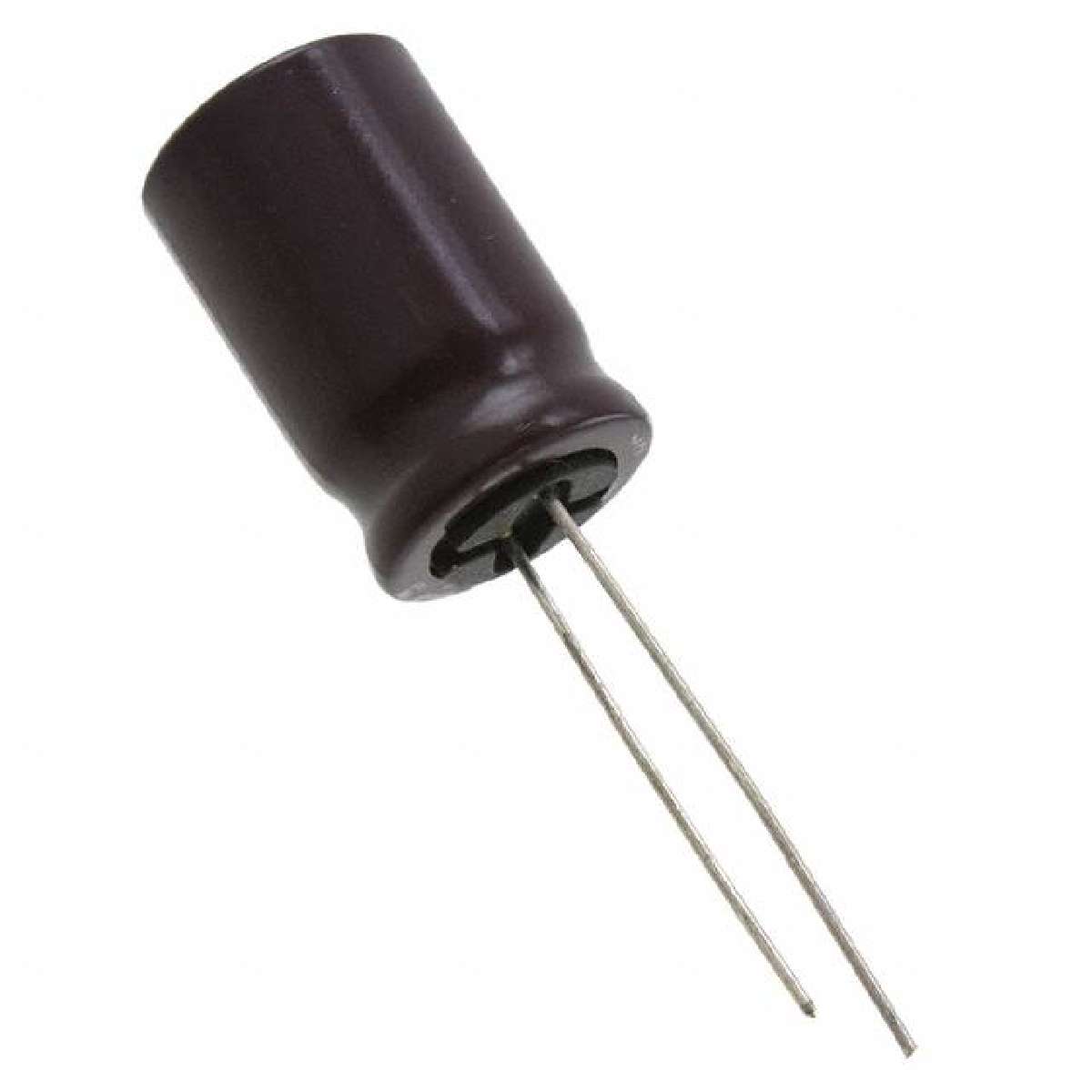

Capacitor: electrolytic; THT; 22uF; 250VDC; Ø12.5x20mm; Pitch: 5mm
|
||
| 标准包装：2 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 22µF |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Ripple Current | 300mA @ 120Hz |
| Manufacturer | Nichicon |
| Series | UCA |
| Applications | General Purpose |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Packaging | Tape & Box (TB) |
| Voltage Rating | 250V |
| Lead Spacing | 0.197" (5.00mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
