| UB5U3-700 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

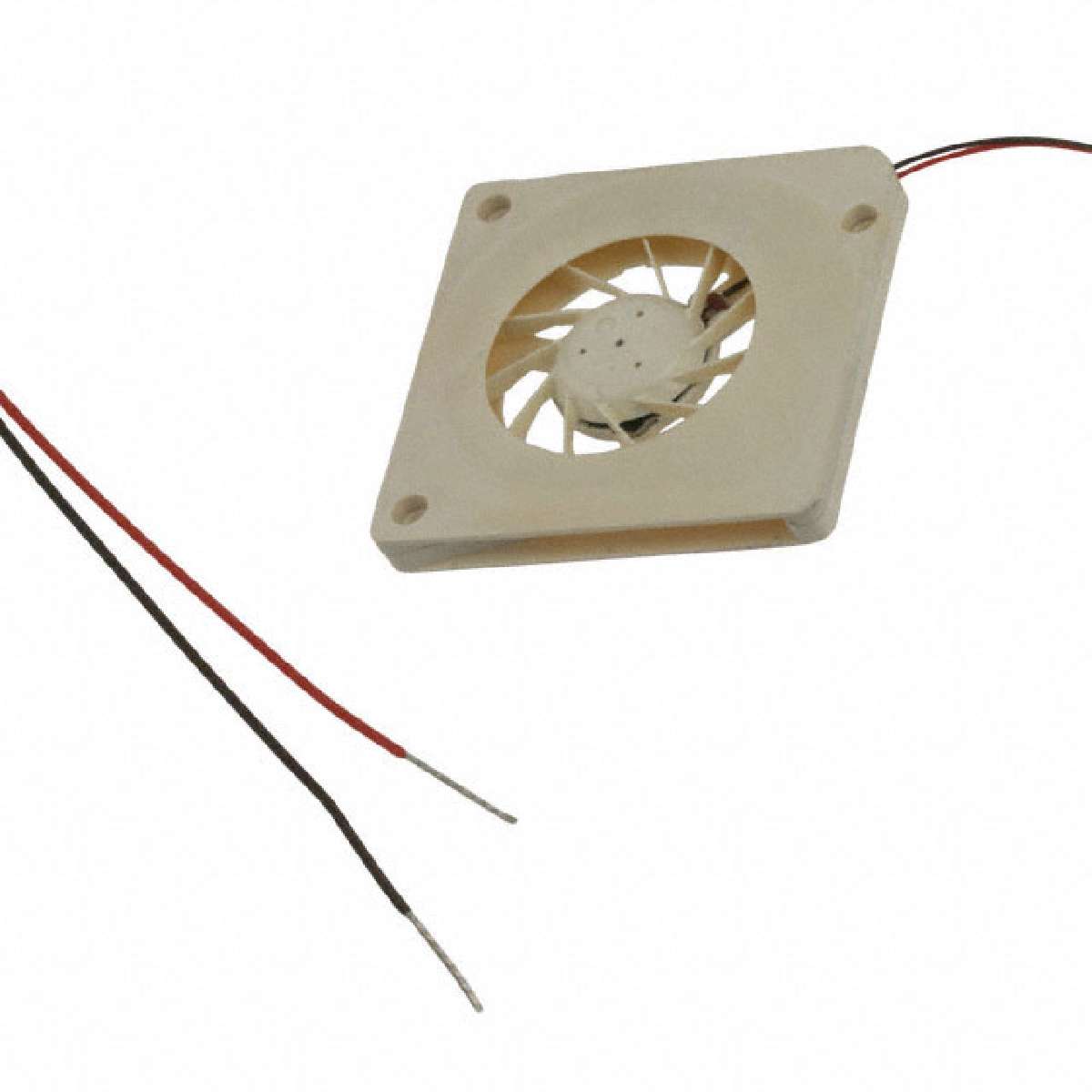

Fan: DC; blower; 5VDC; 30x30x3mm; 1.07m3/h; 39.2dBA; Vapo; 8.99mmH2O
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Material - Blade | Thermoplastic |
|---|---|
| Termination | 2 Wire Leads |
| Approvals | CE |
| Size / Dimension | Square - 30mm L x 30mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Thermoplastic |
| Weight | 0.005 lb (2.27g) |
| Series | Mighty Mini |
| Power (Watts) | 0.36W |
| RPM | 9500 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Blower |
| ECCN | EAR99 |
| Static Pressure | 0.354 in H2O (88.2 Pa) |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Voltage Range | 2 ~ 6VDC |
| Part Status | Active |
| Manufacturer | Sunon Fans |
| Air Flow | 0.630 CFM (0.018m³/min) |
| Voltage - Rated | 5VDC |
| Noise | 39.2 dB(A) |
| Family | DC Fans |
| Width | 3.00mm |
| Bearing Type | Vapo-Bearing™ |
| Current Rating | 0.072A |
