| UB16KKW01N-C | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

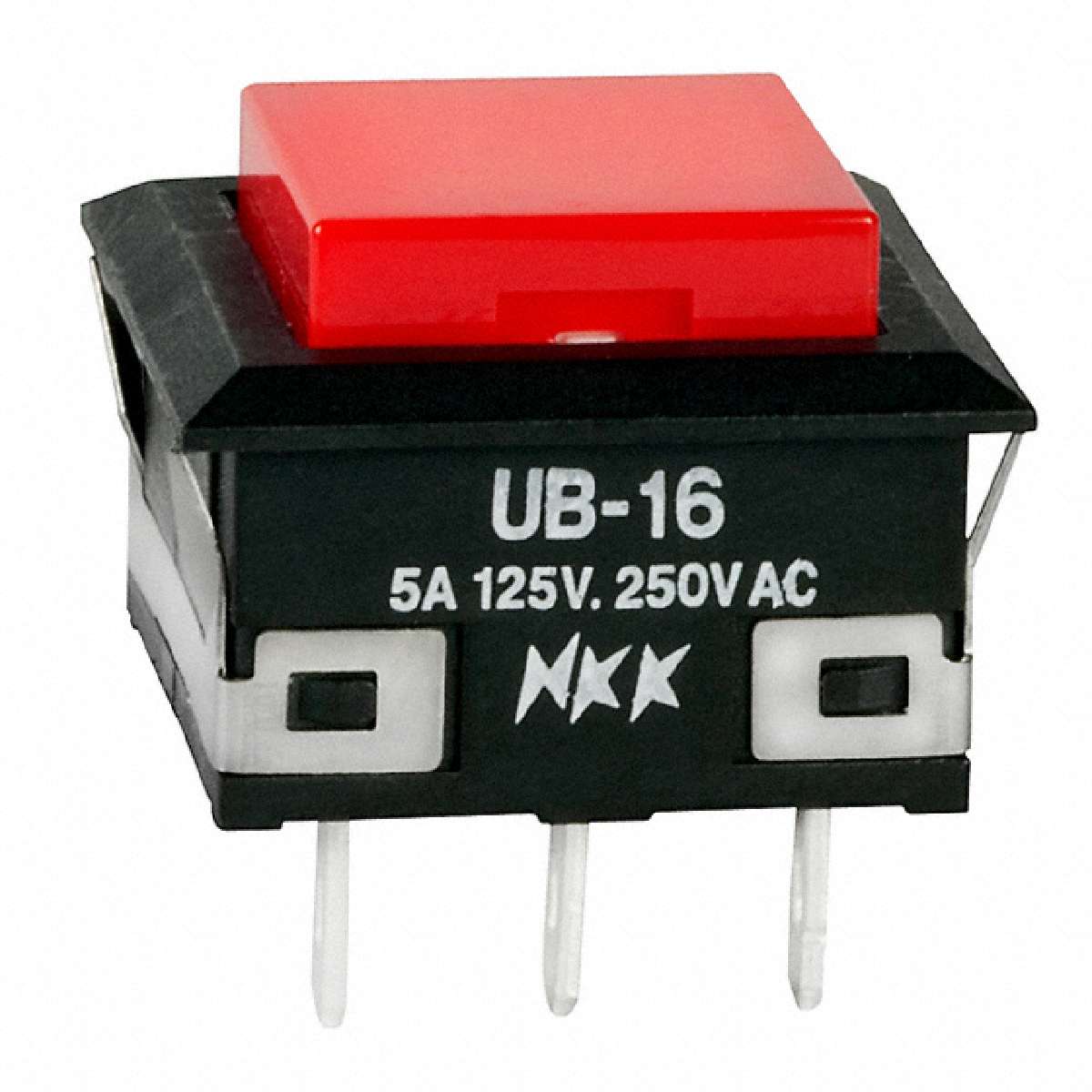

UB Series SPDT On-On 5 A Square Red Nonilluminated Low Profile Pushbutton Switch
|
||
| 标准包装：20 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPDT |
|---|---|
| Switch Function | On-On |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Part Status | Active |
| Category | Switches |
| Color - Actuator/Cap | Red |
| Mechanical Life | 200,000 Cycles |
| Panel Cutout Dimensions | Square - 16.20mm² |
| Operating Temperature | -20°C ~ 70°C |
| Current Rating | 5A (AC/DC) |
| Actuator Type | Square, Button |
| Type | Standard |
| Termination Style | Solder Lug |
| Features | Epoxy Sealed Terminals |
| Electrical Life | 10,000 Cycles |
| Manufacturer | NKK Switches |
| Series | UB |
| Family | Pushbutton Switches |
| Mounting Type | Panel Mount, Snap-In |
| Packaging | Bulk |
| ECCN | EAR99 |
